2. Remove the Neutrik connector.

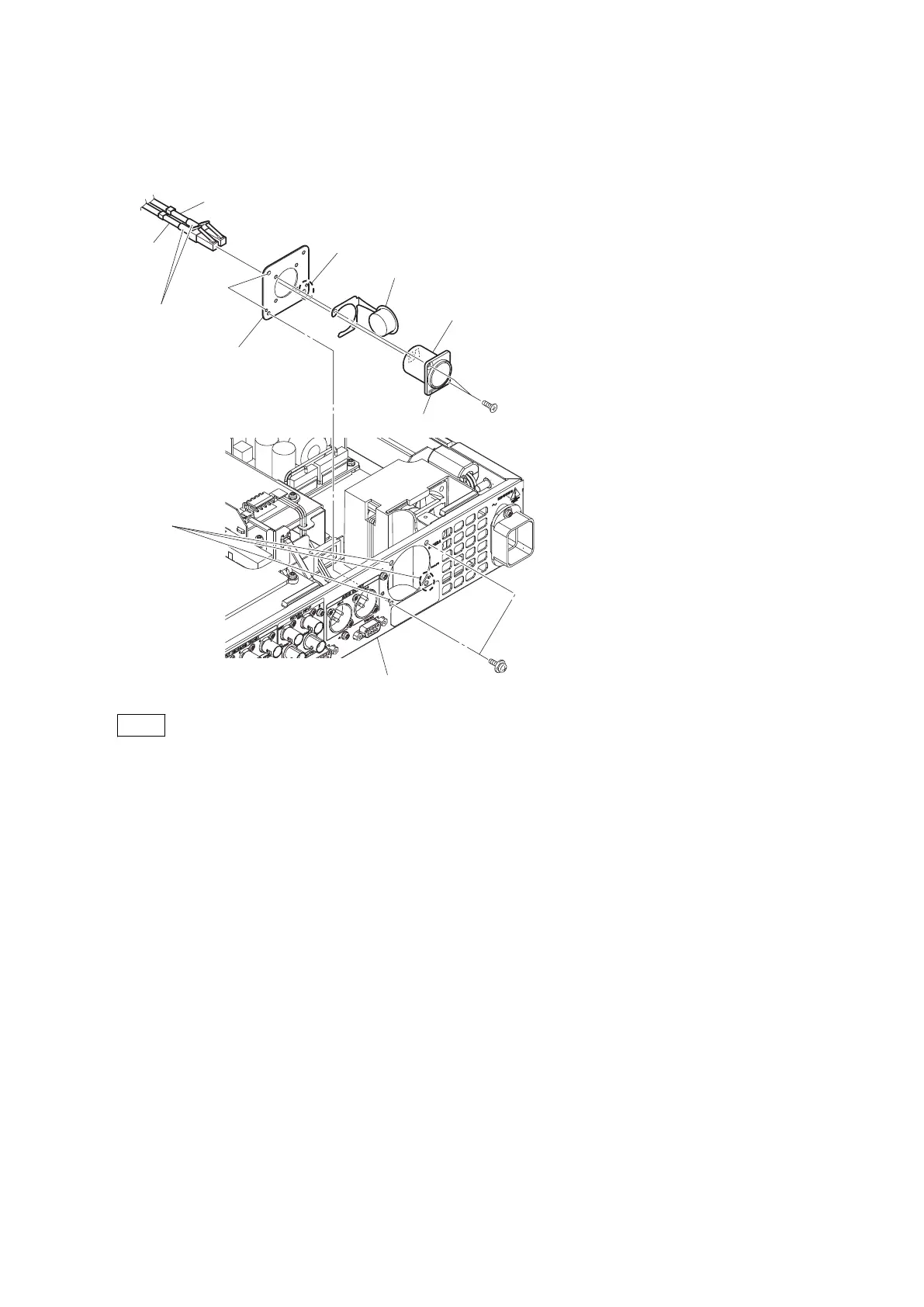

(1) Remove the two screws (PSW3 x 6), then remove the bracket from the rear panel.
(2) Remove the two screws (K3 x 8), then remove the Neutrik fiber cap and Neutrik connector.
PSW3 x 6
K3 x 8
Bracket
[ 1 ]
Holes
Optical fiber cables
Rear panel
[ 2 ]
Bosses
Boss
Neutrik fiber cap
Neutrik connector
[NEUTRIK]
Note
• When attaching the bracket, align the four bosses with the four holes.
• When connecting the optical fiber cables, be careful not to connect the cables to the wrong position.
• When connecting the Neutrik connector, make sure that the directions of the bracket and Neutrik connector
are correct.
3. Install the removed parts by reversing the steps of removal.
3-9-2. LEMO Model
Preparation
1. Remove the cover. (Refer to “3-2. Cover”.)
HXCU-FB80
3-12
To Next Page
