Sony HXCU-FB80 Service Manual

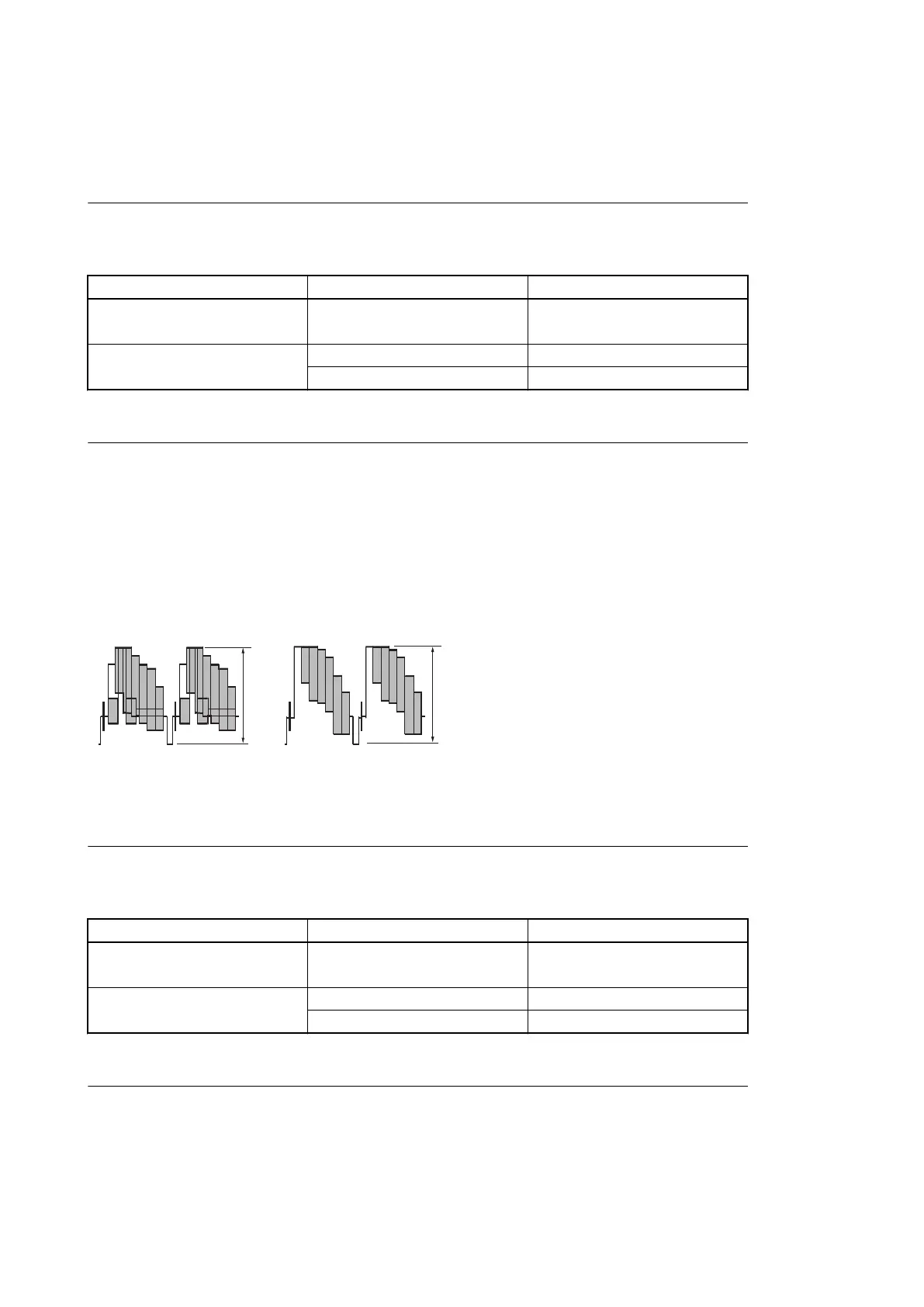

4-3. Video Signal System Adjustment
4-3-1. VBS Output Level Adjustment
Preparation
CCU CONFIGURATION menu setting
Page name Item Settings
C01: COLOR BAR SD BAR SMPTE (NTSC)
EBU (PAL)
C10:VIDEO ADJUST VBS LEVEL 0
VBS CHROMA 0
Adjustment
Equipment: SD waveform monitor
Test Point: VBS 1 output connector / rear panel
Adjusting Point: MAINTENANCE menu → M05: VBS LEVEL
Specification:
• A = 140 ± 1 IRE (75 Ω termination)
• B = 1000 ± 7 mV (75 Ω termination)
BA
NTSC
PAL
4-3-2. PIX Output Level Adjustment
Preparation
CCU CONFIGURATION menu setting
Page name Item Settings
C01: COLOR BAR SD BAR SMPTE (NTSC)
EBU (PAL)
C10:VIDEO ADJUST PIX LEVEL 0
PIX CHROMA 0
Adjustment
Equipment: SD waveform monitor
Test Point: PIX OUT connector / rear panel
Adjusting Point: MAINTENANCE menu → M05: PIX LEVEL
Specification :
HXCU-FB80
4-4
