3-14. SW-1736 Board
Preparation
1. Remove the cover. (Refer to “3-2. Cover”.)
2. Remove the front panel assembly. (Refer to “3-3. Front Panel Assembly”.)
Procedure

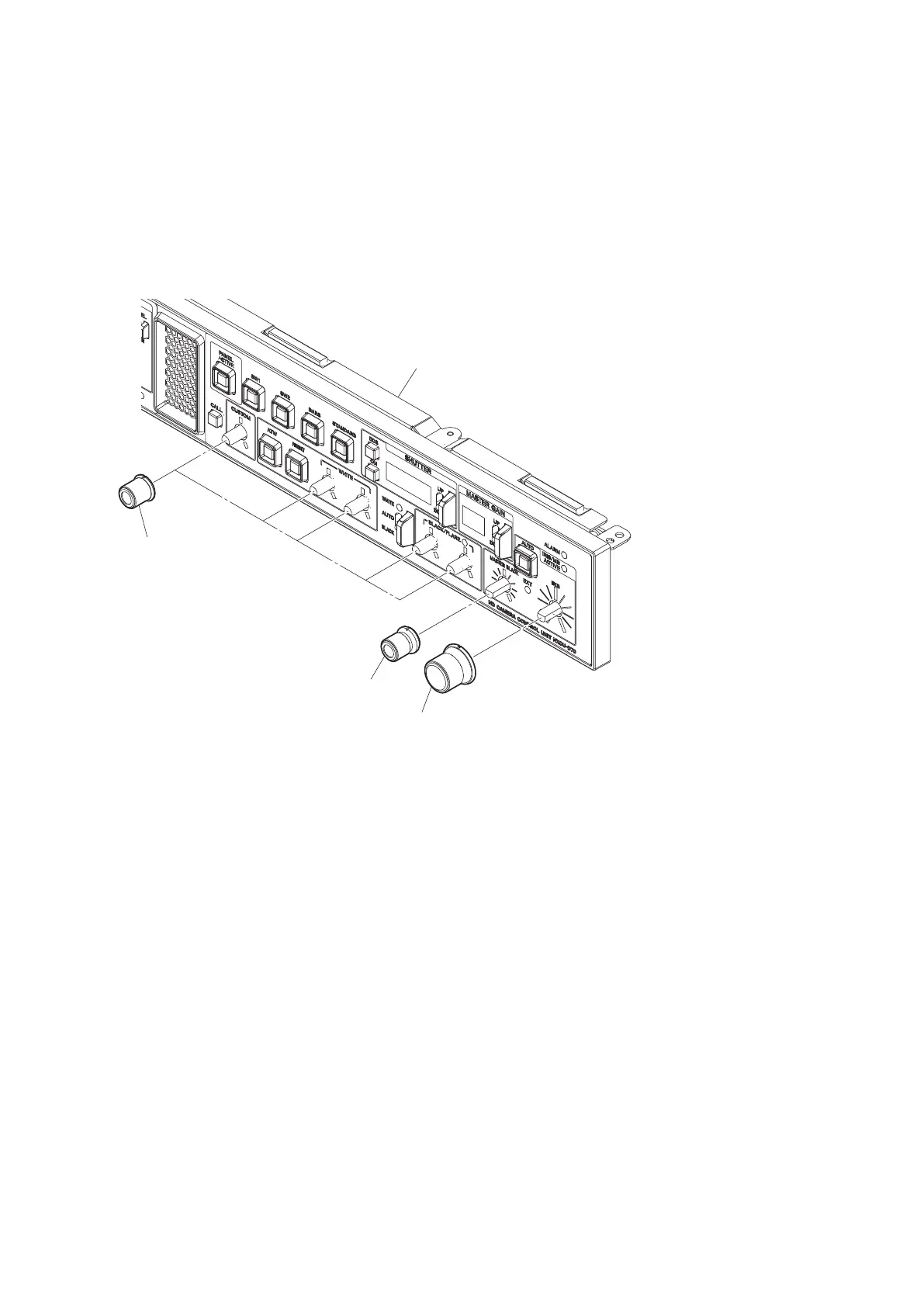

1. Remove the five knob assemblies (S), the volume knob assembly (small) and volume knob assembly (large).
Five knob assembles (S)
Volume knob assembly (small)
Volume knob assembly (large)
Front panel assembly
HXCU-FB80
3-20
