3-1
1.
CN-3968 Board
Preparation
1.
Remove the cover
. (Refer to
“3-2. Cover”
.)
2.
Remove the A
T
-196 board. (Refer to
“3-8. A
T
-196 Board and Lithium Battery”
.)
Procedure
1.

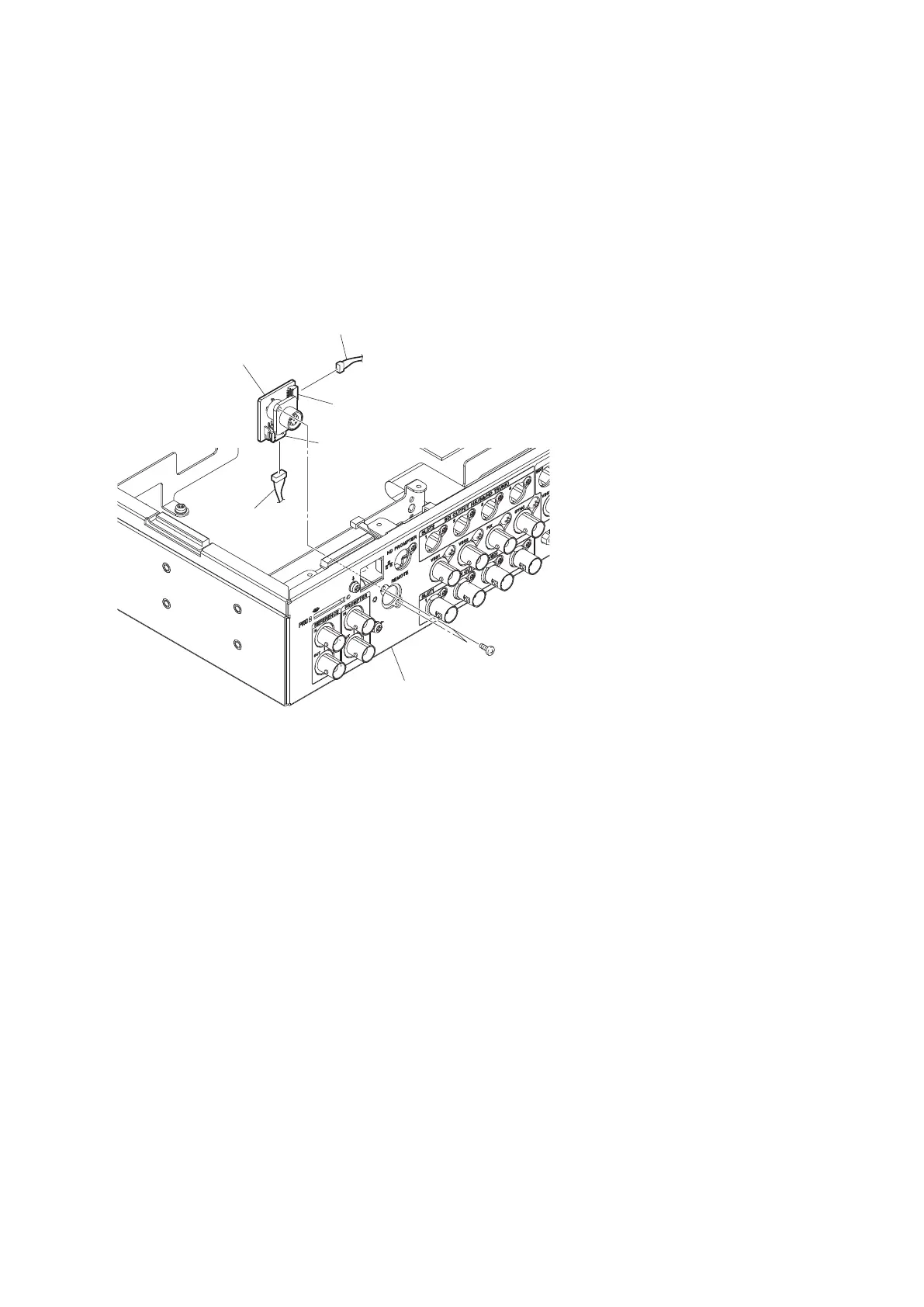

Remove the two screws, then remove the CN-3968 board.
2.
Disconnect the two harnesses from the connectors (CN1 and CN003) on the CN-3968 board.
2.6 x 5
Harness
Harness
Rear panel
CN1
CN003
CN-3968 board
3.
Install the removed parts by reversing the steps of removal.
