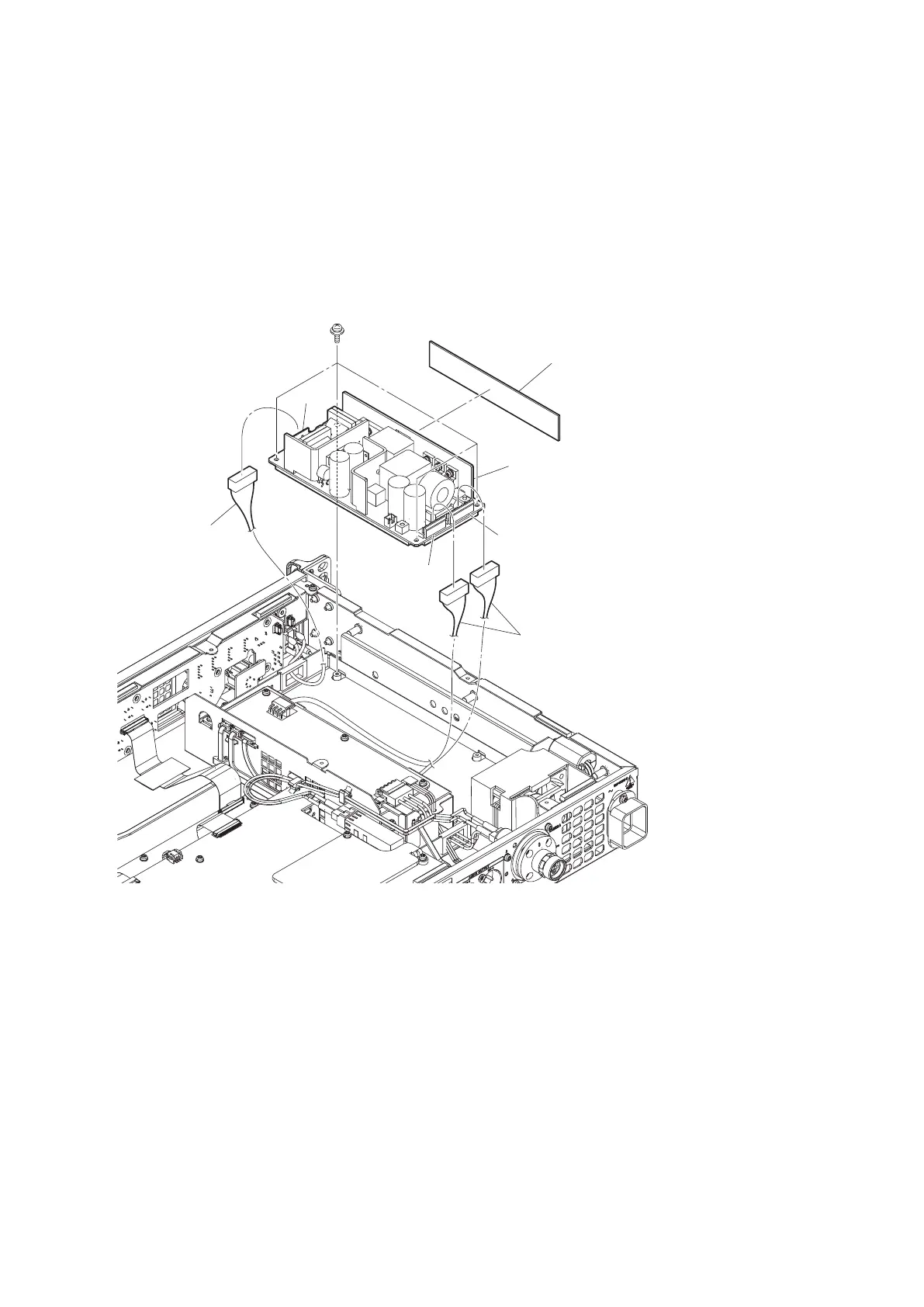

3-6. Switching Regulator (Large)
Preparation
1. Remove the cover. (Refer to “3-2. Cover”.)
Procedure
1. Disconnect the three harnesses from the connectors (CN1, CN51 and CN53) on the switching regulator (large).
2. Remove the four screws, then remove the switching regulator (large).
3. Remove the heat transfer sheet PS-R1 from the switching regulator (large).
Harnesses
Harness
Switching regulator (large)
Heat transfer sheet PS-R1
CN51
CN1
CN53
PSW
3 x 6
The illustration shows LEMO model.
4. Install the removed parts by reversing the steps of removal.
HXCU-FB80
3-8
