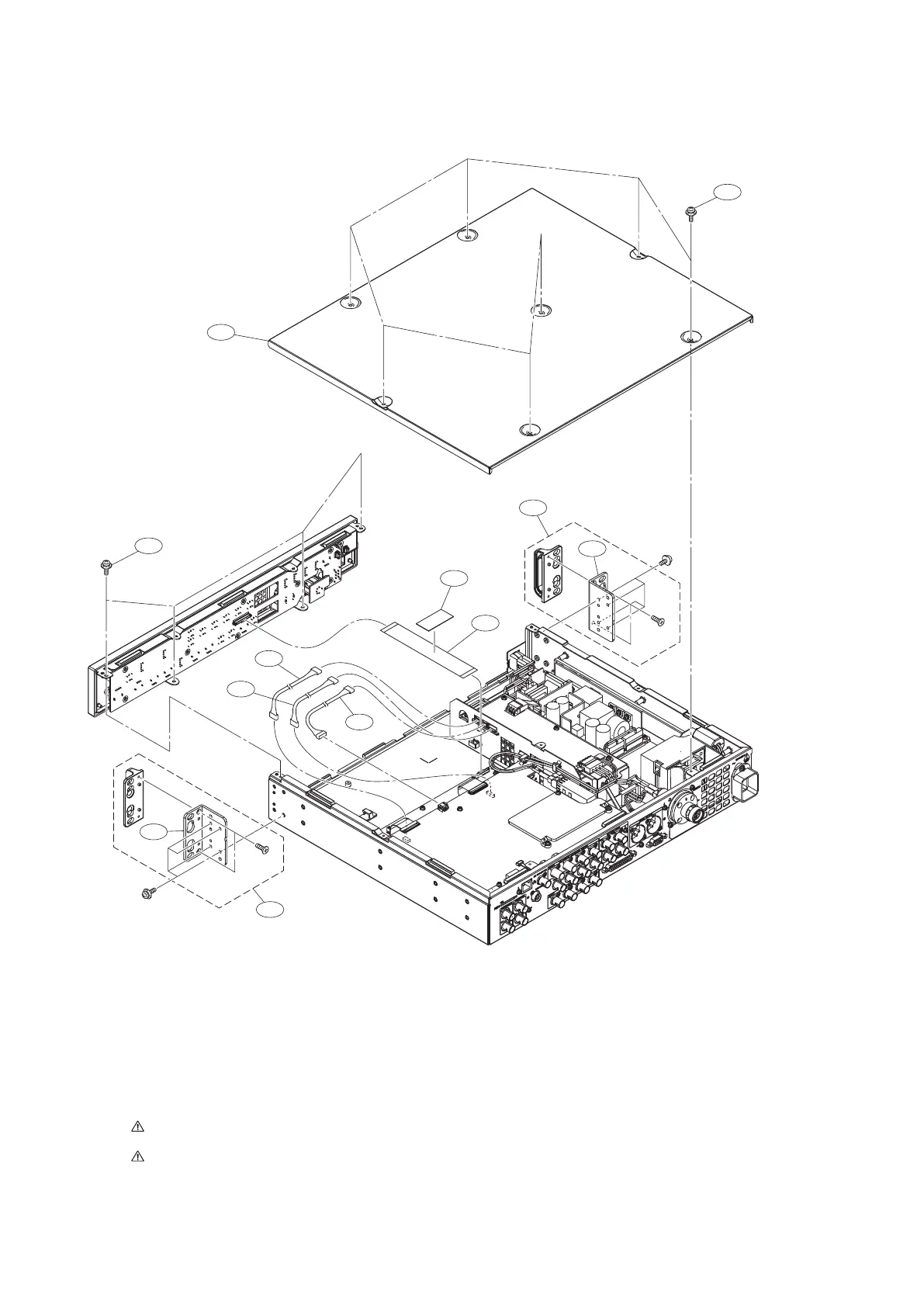

8-2. Exploded Views
Overall
PSW
3 x 10
K3 x 6
K3 x 6
PSW
3 x 10
This illustration shows LEMO model.
7
7
2
8
4
4
3
1
6
5
6
1
No. Part No. SP Description
1 A-2034-689-A s BRACKET ASSY, RACK
2 1-831-108-11 s CABLE, FLEXIBLE FLAT (45 CORE)
3 1-967-976-11 s HARNESS, SUB (POWER CONT)
4 1-971-941-11 s HARNESS, SUB (CCU DC OUT) SP
5
4-299-617-01 s COVER
6
4-299-632-01 s RACK BRACKET(U)
7 4-382-854-51 s SCREW (M3X6), P, SW (+)
8 4-446-014-01 s TAPE AS (2040)
No. Part No. SP Description
7-682-247-09 s SCREW +K 3X6
7-682-949-01 s SCREW +PSW 3X10
HXCU-FB80
8-2
