Section 6
Maintenance Mode
This unit can display the status of this unit and entire system on the video monitor connected to the PIX connector to
check and change settings.
6-1. Preparations
6-1-1. Starting/Exiting the Maintenance Mode
Starting
1. When the status screen or menu screen is displayed, hide the screen.
• When the status screen is displayed, turn the DISP/MENU lever to the DISP side once.
• When the menu screen is displayed, turn the DISP/MENU lever to the MENU side once.
2. While pressing the CONTROL knob, turn the CANCEL/ENTER lever quickly to the ENTER side twice.
3. Turn the DISP/MENU lever to the MENU side within two seconds.

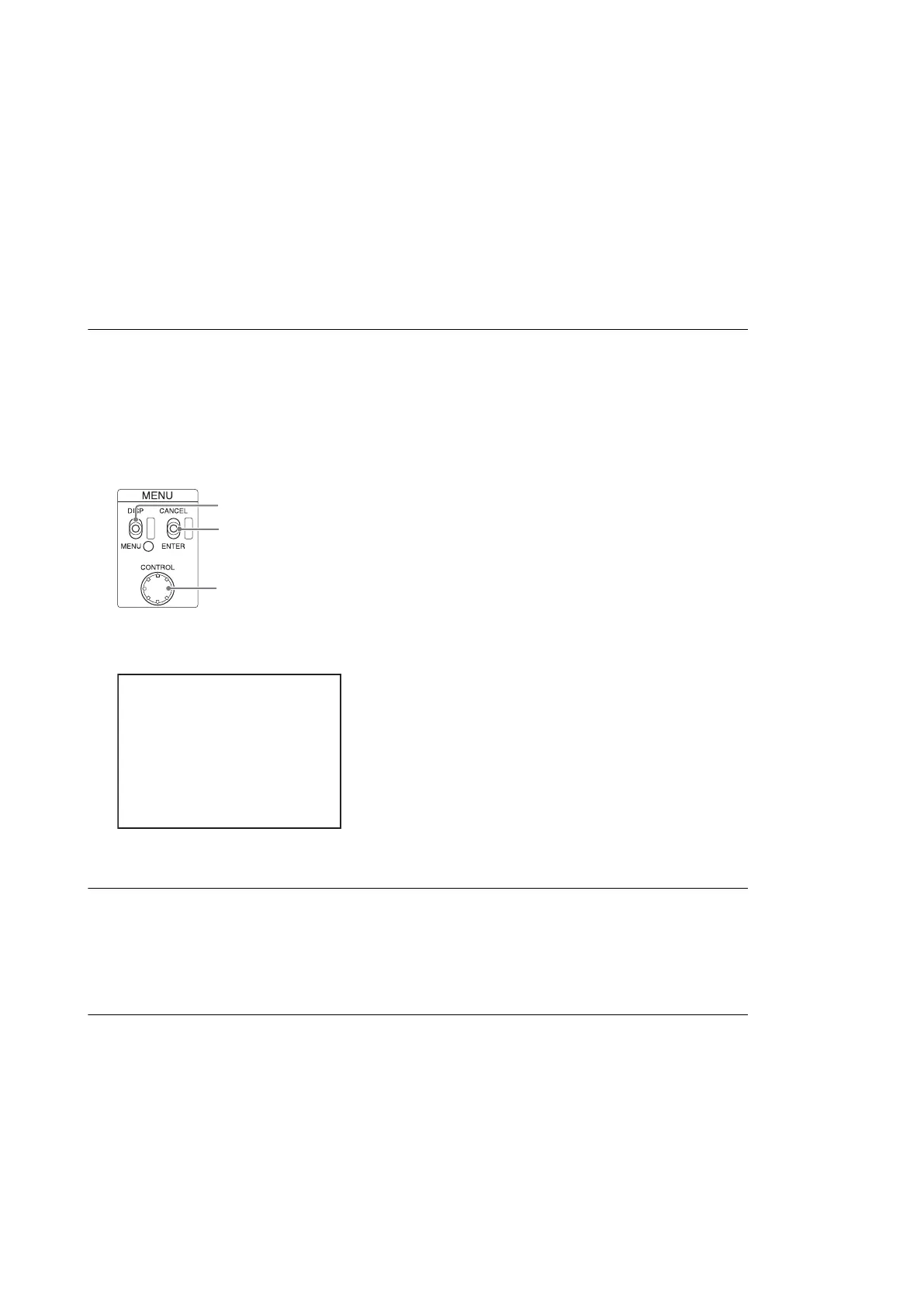

DISP/MENU lever
CANCEL/ENTER lever
CONTROL knob
(Rotary encoder)
4. Check that the following screen appears. If it does not appear, repeat steps 1 to 3.
**CCU MENU**
→
SYSTEM OPERATION
CCU CONFIGURATION
NETWORK SETTINGS
VE OPERATION
MAINTENANCE
Exiting
1. When the status screen or menu screen is displayed, hide the screen.
2. Turn the CANCEL/ENTER lever quickly to the CANCEL side twice.
Changing Setting Values
To enter:
Press the CONTROL knob.
To cancel:
Turn the CANCEL/ENTER lever to the CANCEL side before pressing the CONTROL knob. The setting of the selected
item is restored.
HXCU-FB80
6-1
