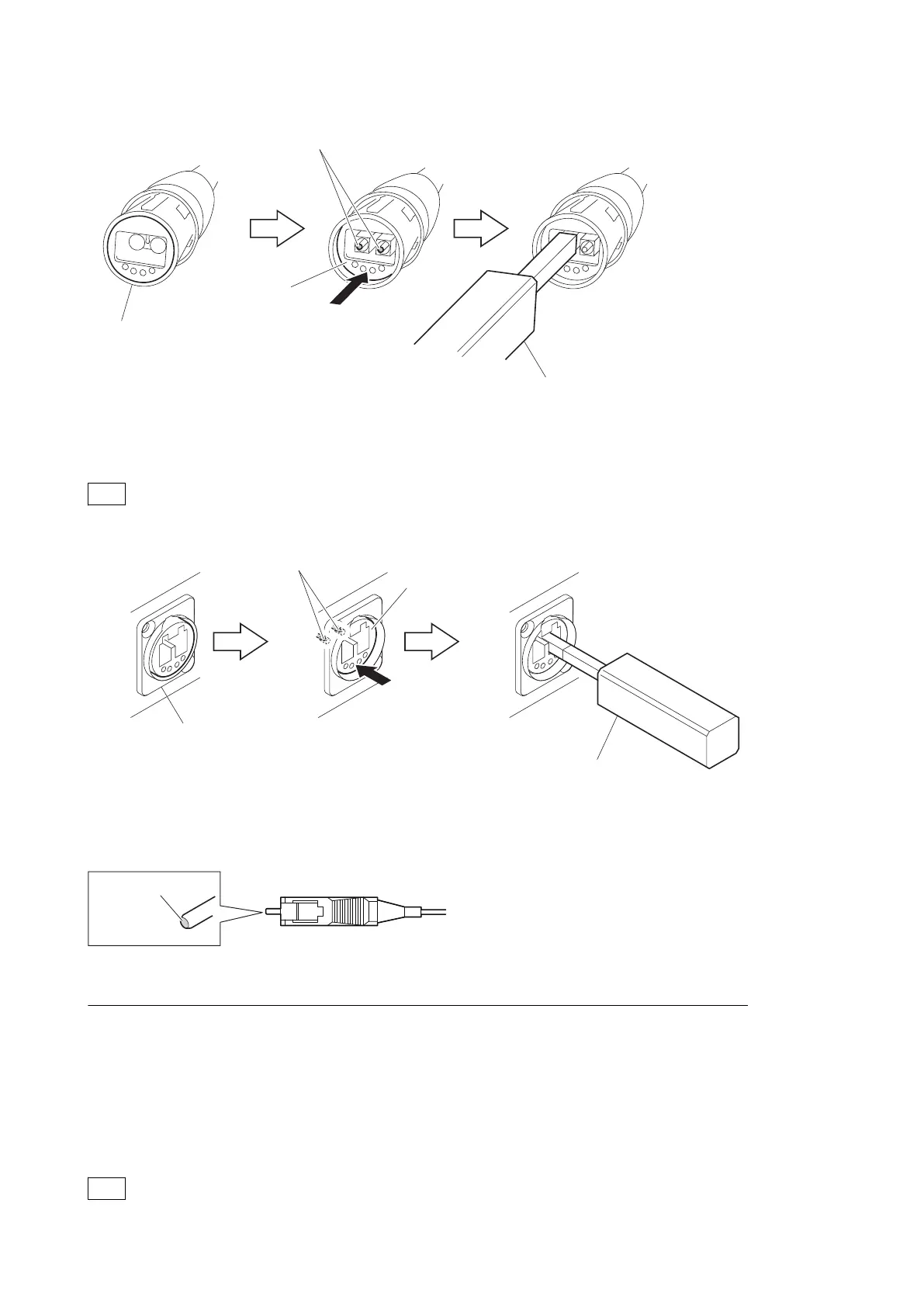

Optical contacts (white)
Optical connector cleaner
Male connector
Shell
Cleaning of female connector
While pushing the shell, clean the tip of the white optical contacts using the optical connector cleaner.
Tip
The sealing shutter is released while the shell is being pushed.
Optical contacts (white)
Optical connector cleaner
Female connector
Shell
Cleaning of connector
Clean the tip of the white optical contacts using the optical connector cleaner.
When the Optical Connector Cleaner (Commercially Available) is not Available
Tool and fixtures
• Alcohol (commercially available)
• Cotton swabs (commercially available)
Cleaning of male connector
While pushing the shell, clean the tip of the white optical contacts with a cotton swab moistened with alcohol.
Tip
The sealing shutter is released while the shell is being pushed.
HXCU-FB80
2-2
To Next Page
