Sony HXCU-FB80 Service Manual

Optical contacts (white)

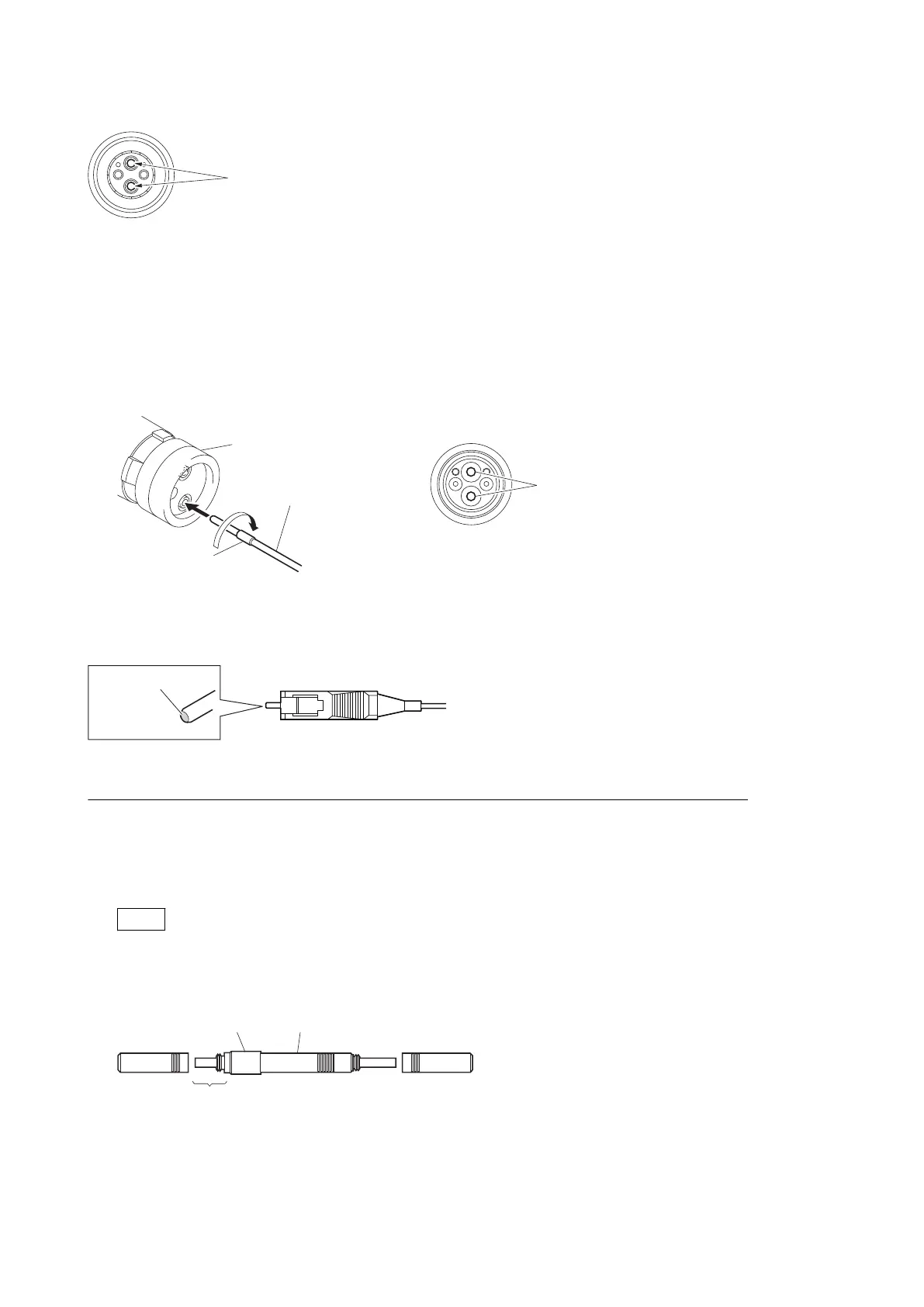

Cleaning of Female Connector
1. Insert the optical connector cleaner straight. Ensure that it is held straight when inserting.
2. Apply sufficient pressure to ensure that the optical contact is a little depressed.
(approximately 600 g to 700 g)
3. While pressing the optical connector cleaner against the tip of the optical contact, rotate the optical connector
cleaner by 4 to 5 turns clockwise.
Holding the optical connector cleaner at around its support facilitates to apply the pressure.
Optical contacts (white)
Optical connector cleaner
Support
Alignment sleeve
Cleaning of Connector
Clean the tip of the white optical contacts using the optical connector cleaner.
Optical contact
(white)
When the Optical Connector Cleaner (Commercially Available) is not Available
Tool and Fixtures
• Alignment sleeve remover HC-001 (for female connector)
Sony Part No. : J-6480-010-A or DCC.91.312.5LA manufactured by LEMO, or equivalent
Note
Insert the shorter nose end when removing/installing the alignment sleeve. Grasp not the shock absorber portion
of the remover but the handle in use.
Shock
absorber portion
Insert the shorter nose end
Handle
• Alcohol (commercially available)
HXCU-FB80
2-4
