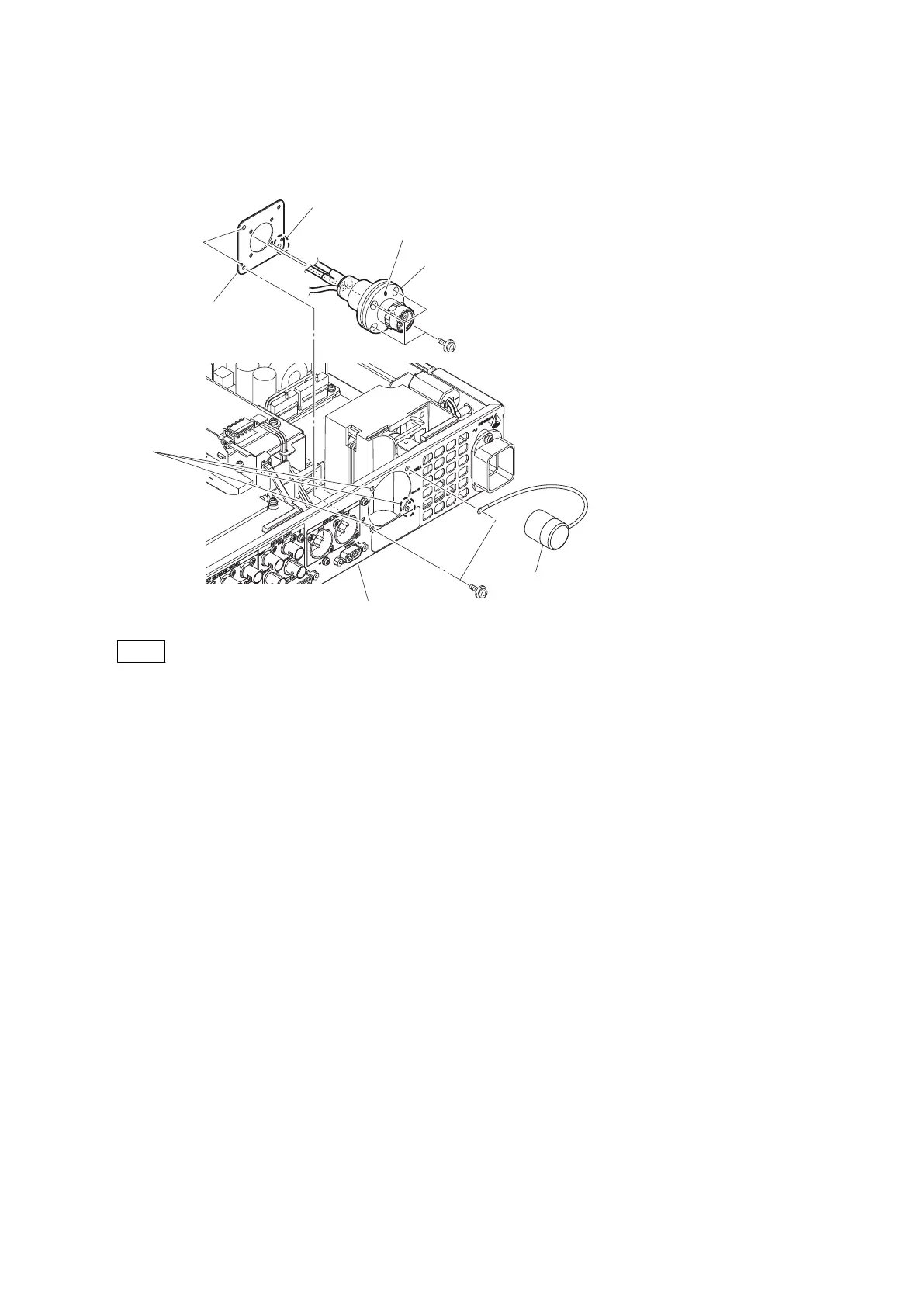

2. Remove the LEMO connector.
(1) Remove the two screws, then remove the bracket and cap (LEMO) from the rear panel.
(2) Remove the four screws, then remove the LEMO connector.
LEMO connector
Red mark
PSW3 x 6
PSW3 x 6
Bracket
Holes
Cap (LEMO)
Rear panel
Bosses
Boss
Note
When attaching the bracket, align the four bosses with the four holes.
When attaching the LEMO connector, make sure that the directions of the bracket and LEMO connector are
correct.
3. Install the removed parts by reversing the steps of removal.
HXCU-FB80
3-14
