Sony HXR-NX5R User Manual

12

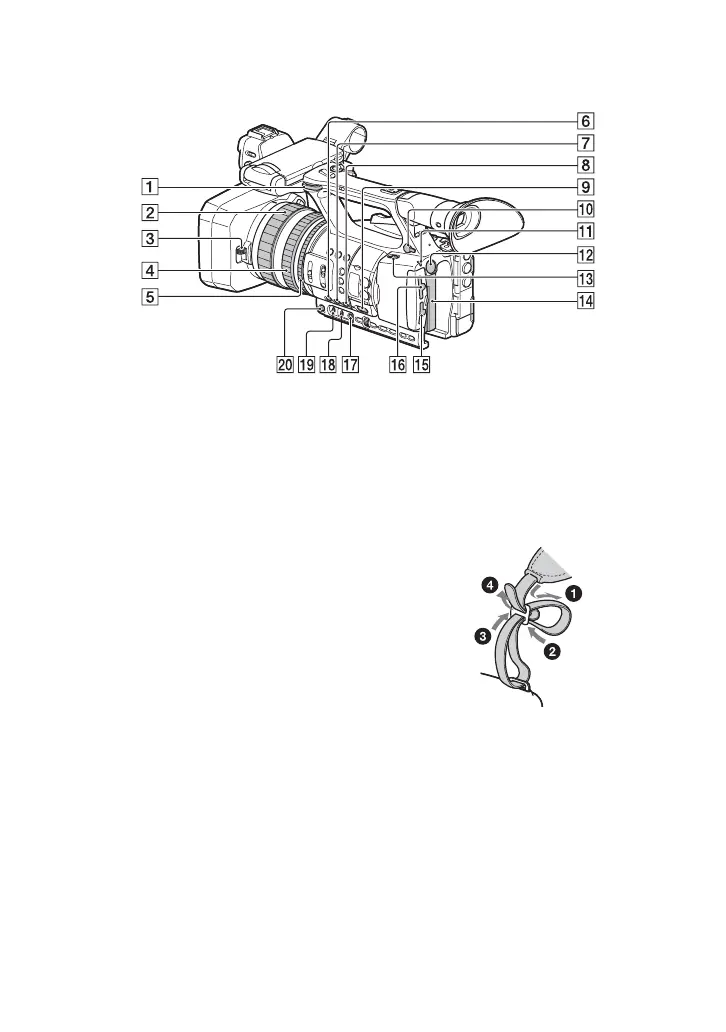

A Hook for shoulder strap
B Focus ring (p. 35)
C Lens cover lever (p. 23)
D Zoom ring (p. 34)
E Iris ring (p. 39)
F GAIN button (p. 40)
G WHT BAL button* (p. 42)
H SHUTTER button (p. 40)
I AUTO/MANUAL switch (p. 39)
J i (headphones) jack
Use headphones that have a stereo mini
jack.
K POWER lamp
L BATT RELEASE button (p. 20)
M ON/STANDBY switch (p. 25)
N Battery pack (p. 19)
O Memory card slot B/Select button/
Access lamp (p. 29)
P Memory card slot A/Select button/
Access lamp (p. 29)
Q WB SET button (p. 43)
R B/A/PRESET switch (p. 42)
S L/M/H switch (p. 40)
T IRIS button* (p. 39)
To attach the shoulder strap (sold
separately)
Attach to the shoulder strap hook as
illustrated.
* The IRIS button and WHT BAL button each
have a notch (protrusion) to aid finger
placement during operation.
Identifying Parts and Controls (Continued)

Sony HXR-NX5R Specifications

General

Camcorder type	Handheld camcorder
Minimum illumination	1 lx
Supported aspect ratios	4:3, 16:9
Product color	Black
DC-in jack	Yes
PictBridge	No
Composite video out	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	7.2 h
Battery technology	-
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Maximum frame rate	50 fps
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	50 Mbit/s
Sensor type	CMOS
Total megapixels	2.07 MP
Optical sensor size	1/2.8 \
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	MS PRO Duo, SD, SDHC, SDXC
Maximum memory card size	64 GB
Internal storage capacity	- GB
Audio system	Dolby Digital
PCM digital audio	16-bit/48 kHz
Audio formats supported	PCM
Filter size	72 mm
Digital zoom	40 x
Optical zoom	20 x
Focal length range	4.1 - 82 mm
Maximum aperture number	3.4
Minimum aperture number	1.6
Focal length (35mm film equivalent)	28.8 - 576 mm
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Camera shutter speed	1/3 - 1/10000 s
Viewfinder type	Electronic
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cables included	AC, USB
Maximum image resolution	- pixels
Display diagonal	8.8 \

Weight and Dimensions

Depth	385 mm
Width	176 mm
Height	199.5 mm
Weight	2110 g
