Sony PMC-DR45 - Schematic Diagram -Tuner Section

PMC-DR45
– 35 –

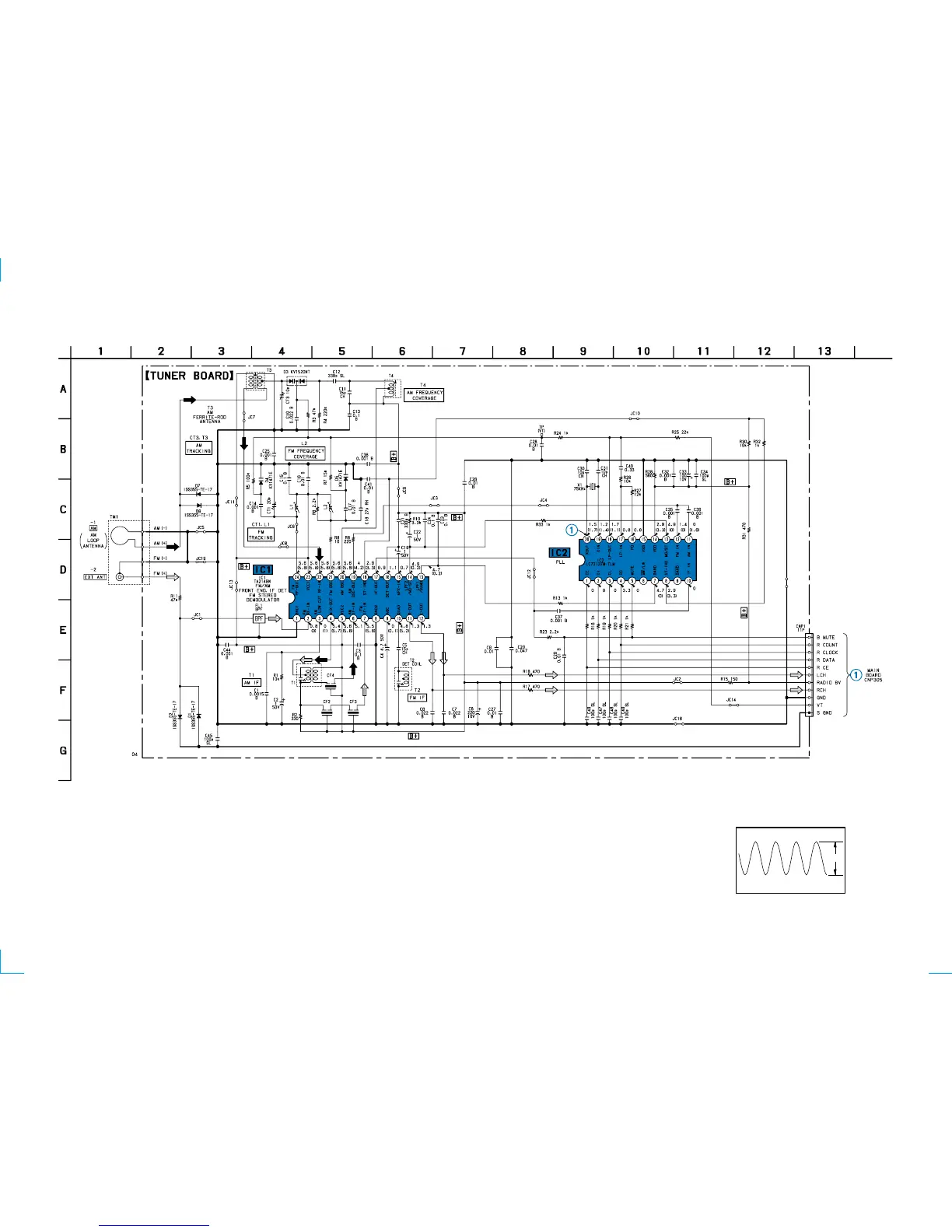

6-8. SCHEMATIC DIAGRAM — TUNER SECTION — • Refer to page 65 for IC Block Diagrams. Refer to page 33 for Note.
– 36 –
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
( ) : AM
IC2
w;
(X OUT)
• Waveform
1
0.9Vp-p
75kHz
5µsec/div20mV/div
(Page 47)
