Sony PMC-DR45 - Schematic Diagram -TC Section

PMC-DR45
– 43 – – 44 –

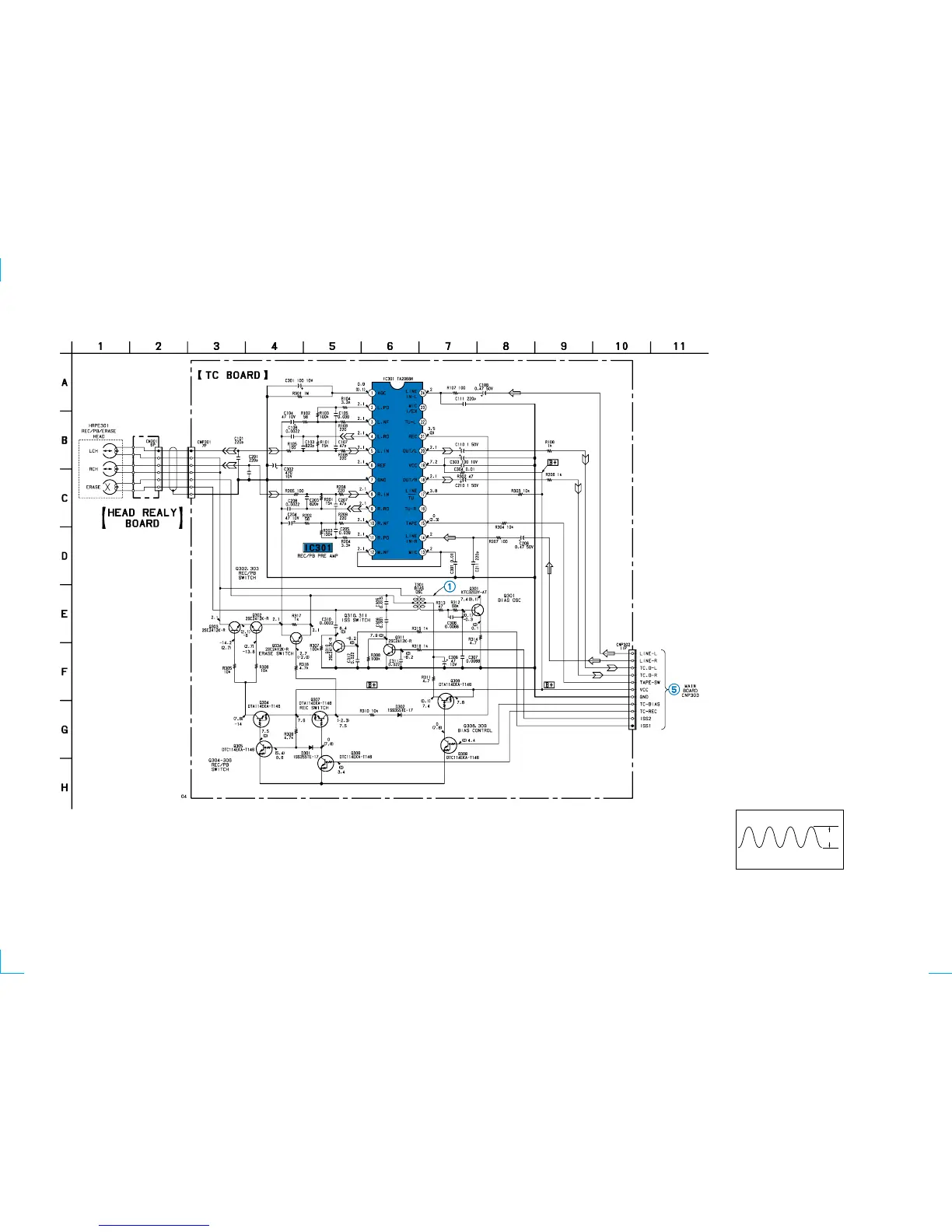

6-12. SCHEMATIC DIAGRAM — TC SECTION — • Refer to page 67 for IC Block Diagram. Refer to page 33 for Note.
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : REC (TAPE)
( ) : PB (TAPE)
(Page 47)
Q301
C
(REC)
• Waveform
1
4Vp-p
19.5µsec
5µsec/div
0.1V/div
