– 7 –
SECTION 3
DISASSEMBLY
• The equipment can be removed using the following procedure.
Note : Follow the disassembly procedure in the numerical order given.

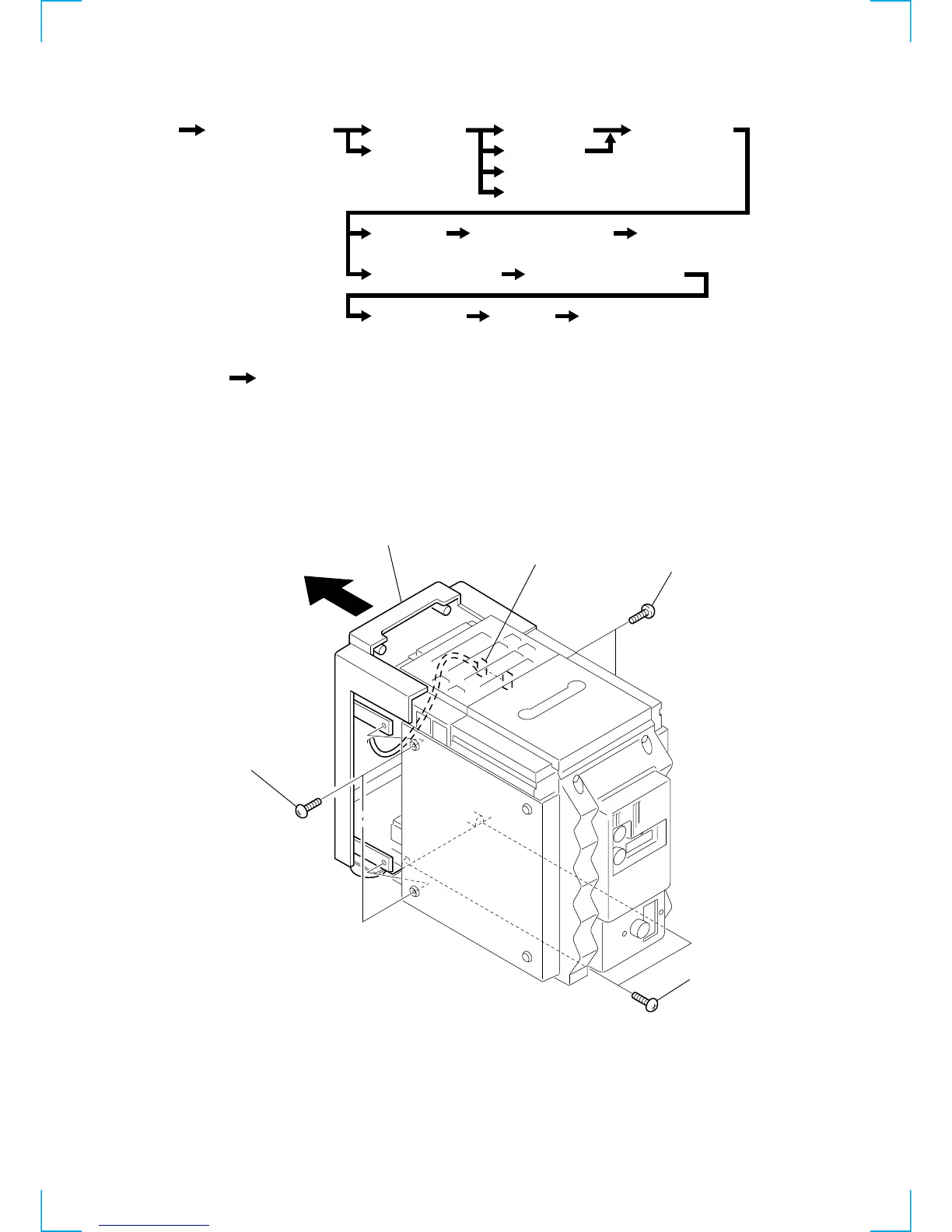

3-1. CABINET (FRONT) ASSY
Set Cabinet (Front) Assy
Speaker Set Power Board
CD Assy, H/P Board
Control Board
Top Block Assy
Main Board
Loading Board CD Board CD Mechanism Block
Tape Mechanism Block
(TC Board)
“Plate Assy, Chuck”, Tray
Top Board
Cabinet (Rear)
Front Board
Tuner Board
Line Board
Holder, Cassette
1 BVTP 3x12
4 CNP802
5 cabinet (front) assy
2 BVTP 3x12
3 BVTP 3x1
To Next Page
