Sony PMC-DR45 - Schematic Diagram -Main Section

PMC-DR45
– 47 – – 48 –
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
( ) : PB (TAPE)
< > : REC (TAPE)
[ ] : CD PLAY

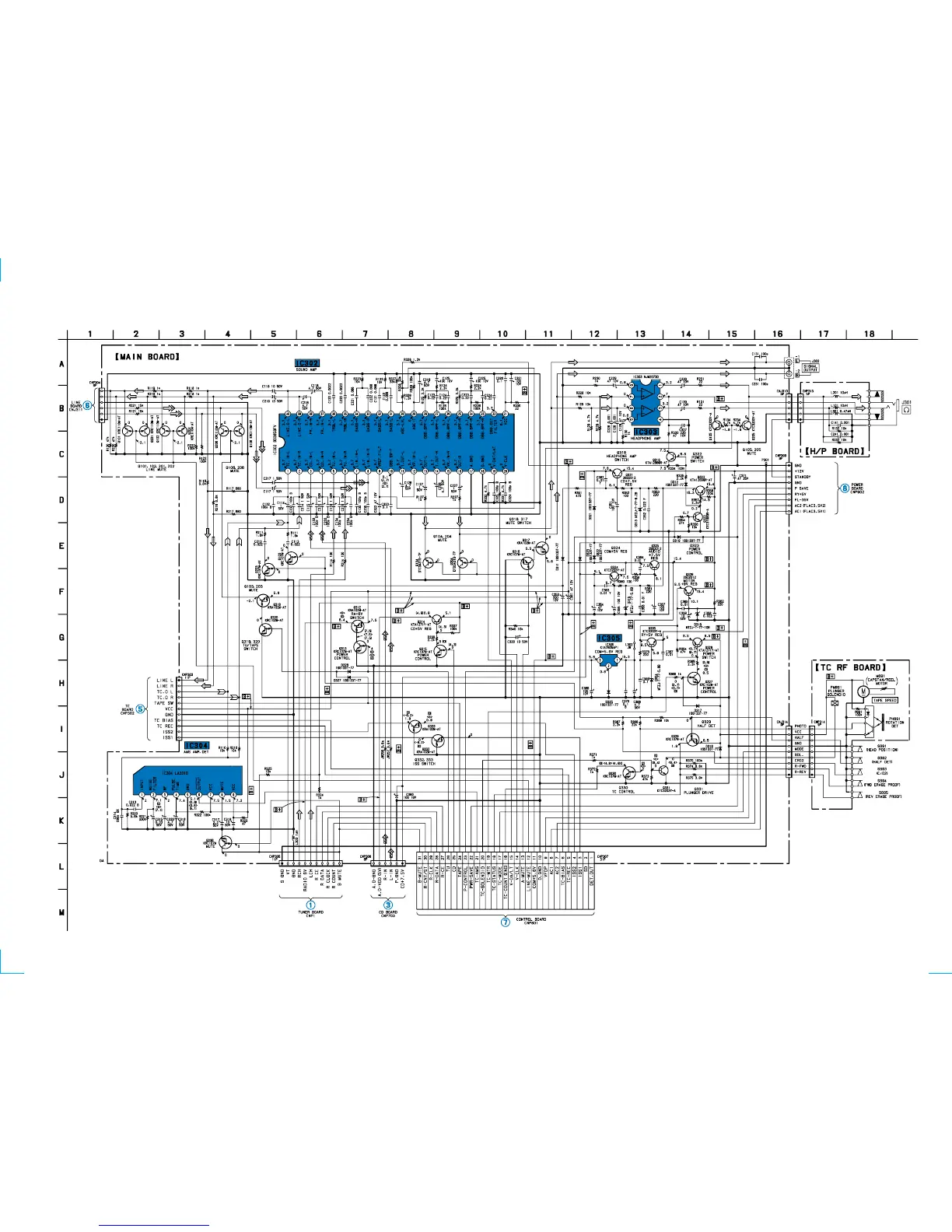

6-14. SCHEMATIC DIAGRAM — MAIN SECTION — • Refer to page 68 for IC Block Diagrams. Refer to page 33 for Note.
(Page
59)
(Page 44)
(Page 36)
(Page 40)
(Page 53)
(Page 63)
