Sony PMC-DR45 - Cabinet (Top) Section

– 70 –

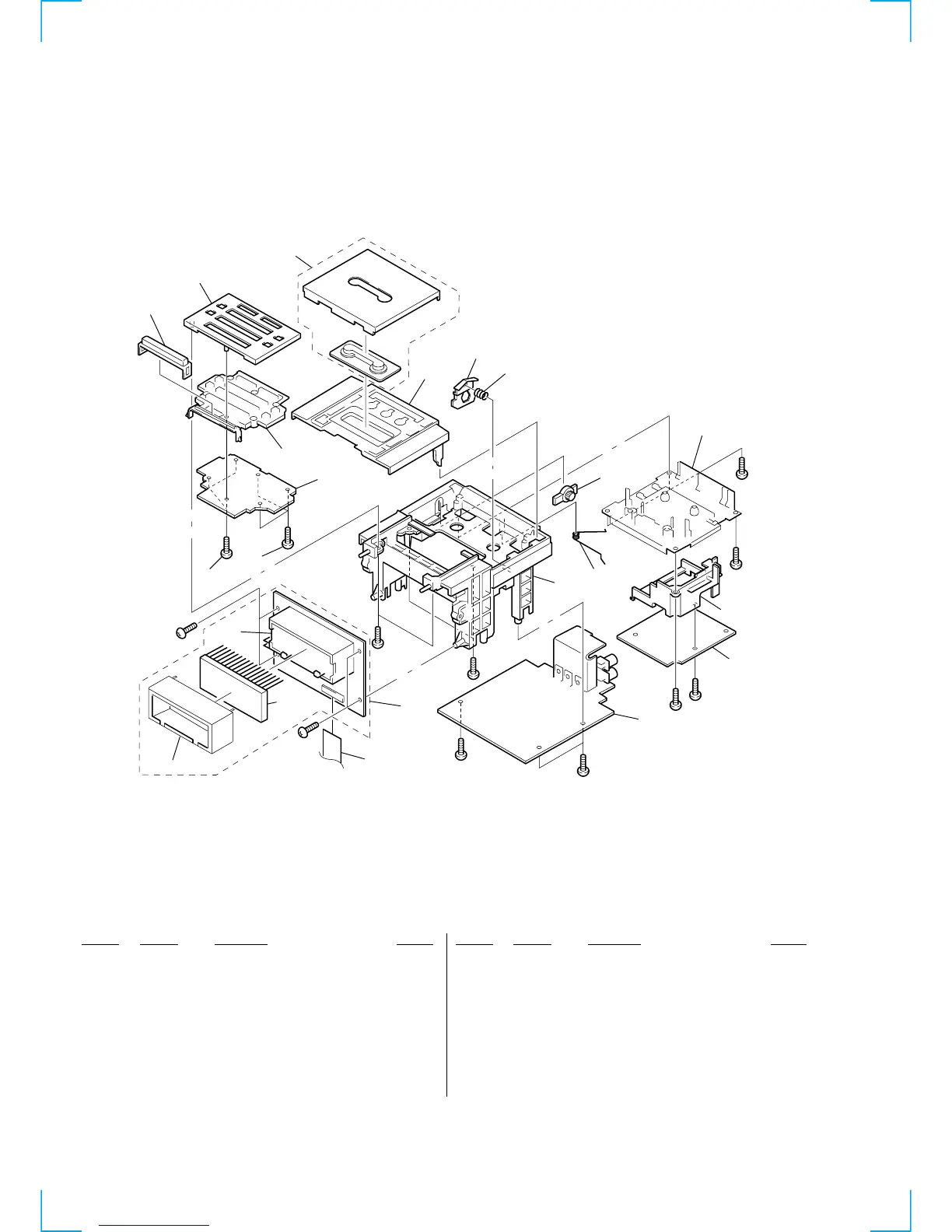

7-2. CABINET (TOP) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-041-336-01 CABINET (TOP)
52 3-041-370-01 SPRING, CASSETTE
* 53 A-3322-764-A MAIN BOARD, COMPLETE
* 54 A-3322-763-A CONTROL BOARD, COMPLETE
* 55 1-792-225-11 CABLE, FFC (31P) (MAIN-CONT)
* 56 1-677-030-11 TOP BOARD
57 3-041-344-01 BUTTON, FUNCTION
58 3-041-345-01 COVER, SNOOZE
59 3-041-356-11 PANEL (TOP)
60 A-3328-895-A LID ASSY, CASSETTE
61 3-041-342-01 HOLDER, CASSETTE
62 3-029-158-01 CATCHER, PUSH
63 3-029-159-01 SPRING, PUSH CATCHER RETURN
64 3-343-248-01 DAMPER (P), SMALL
* 65 A-3322-501-A TC BOARD, COMPLETE
66 3-041-353-01 HOLDER, FLT
67 3-047-612-01 SCREW +2.6X10
FDP801 1-517-955-11 INDICATOR TUBE, FLUORESCENT
