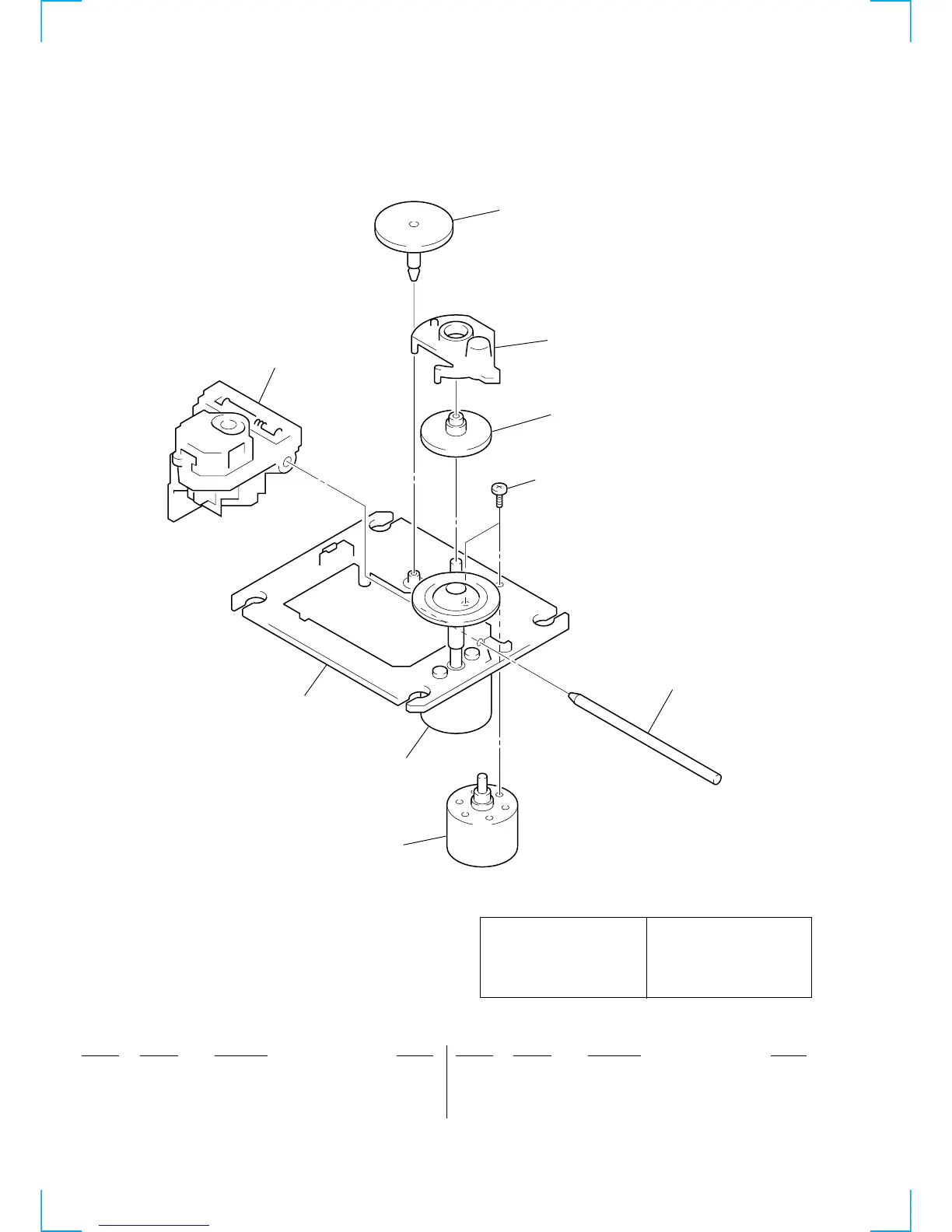

7-6. OPTICAL PICK-UP SECTION
(KSM-213CCP)
0251 8-848-483-05 OPTICAL PICK-UP KSS-213C
252 2-627-003-02 GEAR (B) (RP)
253 2-626-908-01 SHAFT, SLED
254 3-713-786-51 SCREW +P 2X3
255 X-2646-381-1 CHASSIS ASSY (MB) (RP), MOTOR (SPINDLE)
(INCLUDING M702)
256 2-626-907-01 GEAR (A)
M701 X-2625-769-1 GEAR ASSY, MOTOR (SLED)
not supplied
M701
M702
253
251
252
254
255
256
