Sony PMC-DR45 - CD Chassis Section Exploded View

– 71 –

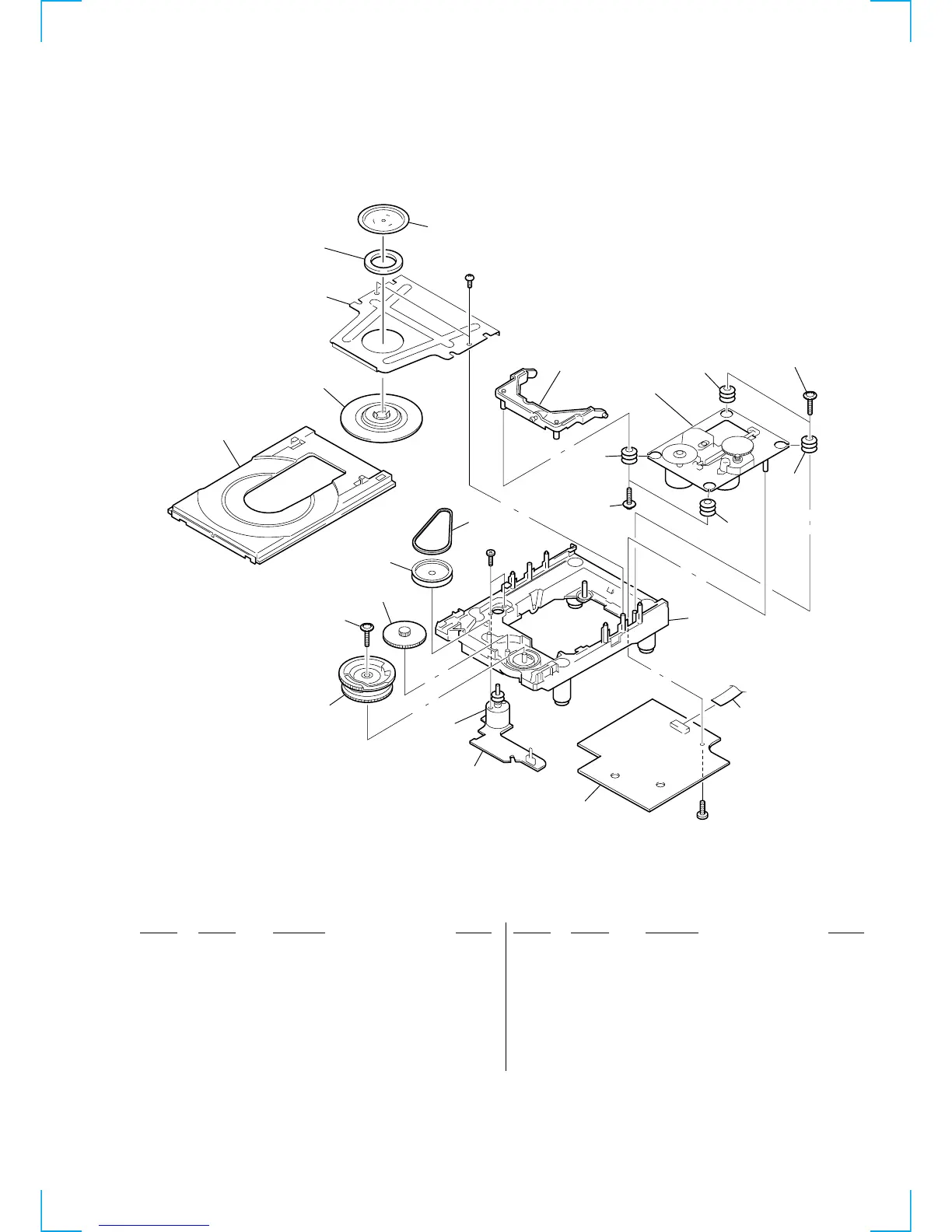

7-3. CD CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-028-010-01 TRAY
102 3-028-019-01 PLATE, CHUCK
103 1-452-899-21 MAGNET
104 3-028-011-01 ARM
105 3-910-095-31 RUBBER, VIBRATION PROOF
106 3-931-379-01 RUBBER, VIBRATION PROOF
107 3-921-725-01 SCREW (2.6X10), +PWH
108 3-028-009-11 CHASSIS
* 109 1-792-227-11 CABLE, FFC (16P) (CD-PICK UP)
* 110 A-3322-766-A CD BOARD, COMPLETE
* 111 1-671-072-11 LOADING BOARD
112 3-028-013-01 GEAR, DRIVE
113 3-028-014-01 GEAR
114 3-028-015-01 PULLEY
115 3-933-020-01 BELT
M651 A-3320-538-A MOTOR ASSY, LOADING (LOADING)
101
102
104
105
105
106
106
107
108
109
110
111
112
107
113
114
115
107
103
not supplied
not supplied
KSM-213CCP
#4
#6
#5
M651
