Sony PMC-DR45 - Printed Wiring Board -Front Section; Schematic Diagram -Front Section

PMC-DR45
– 55 – – 56 –
1
A
B
C
D
E
234567

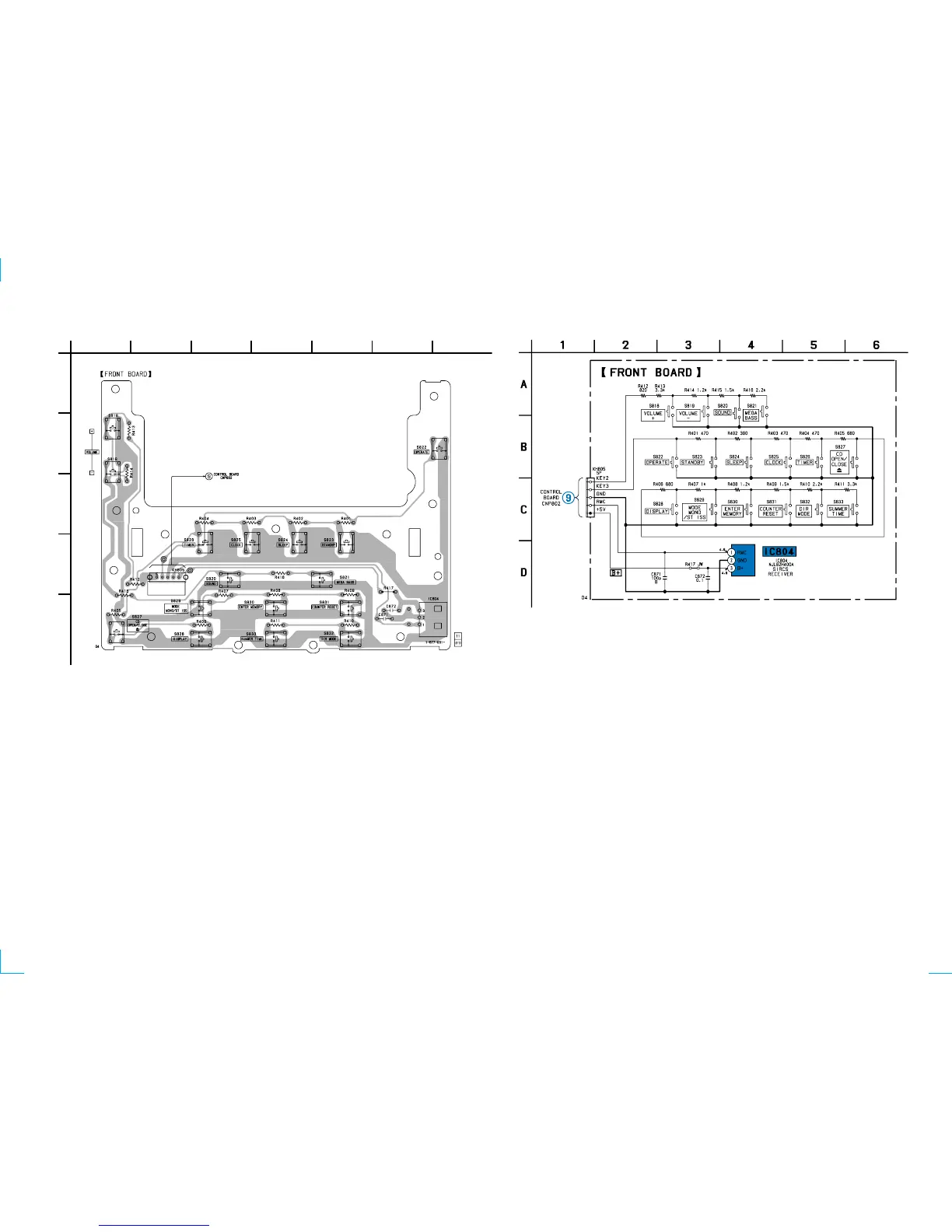

6-17. PRINTED WIRING BOARD — FRONT SECTION — • Refer to page 34 for Note. 6-18. SCHEMATIC DIAGRAM — FRONT SECTION — • Refer to page 33 for Note.
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
(Page 51)
(Page 54)
