Sony RCD-W10 Service Manual

10
RCD-W10

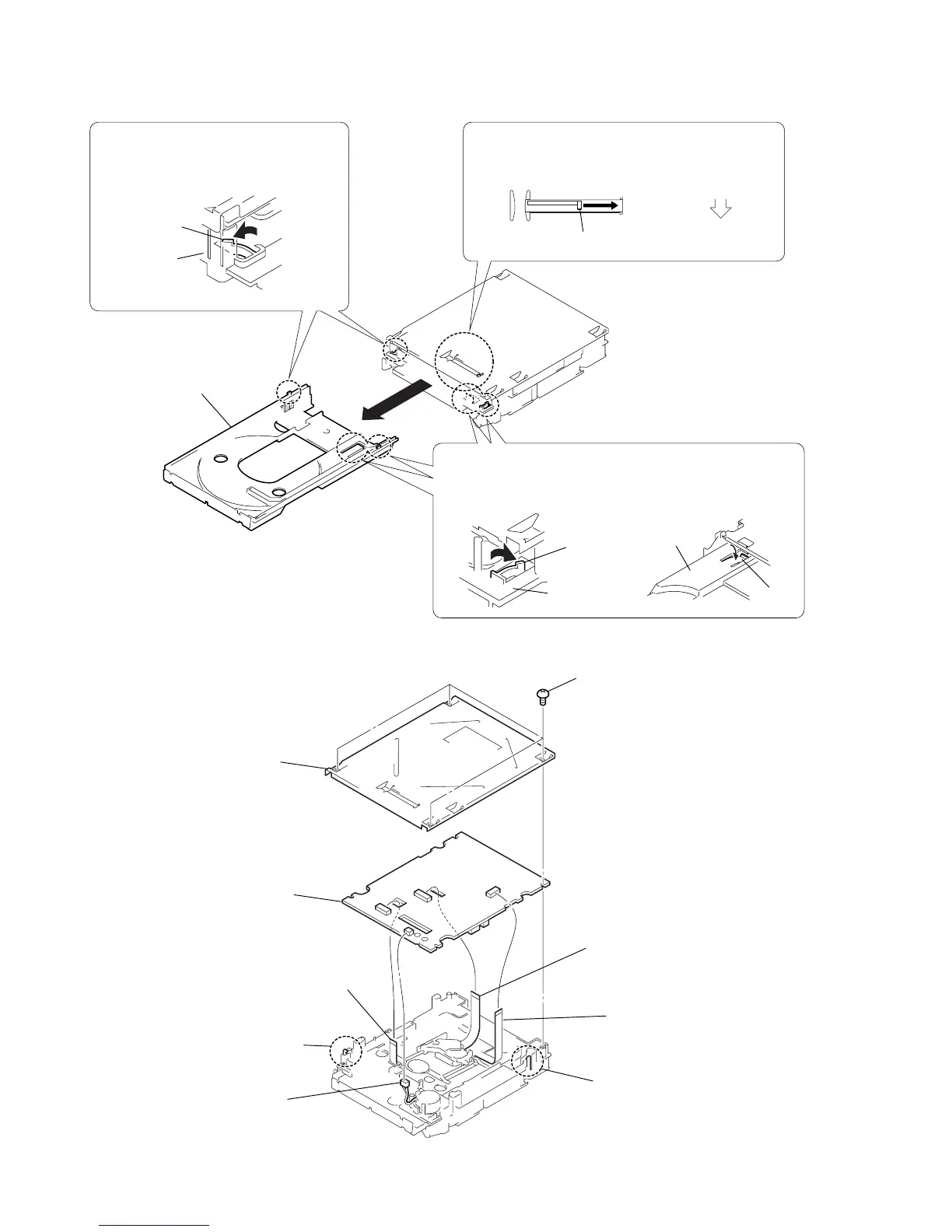

3-8. CDR Board
3-7. Tray
1 Slide the lever (cam (CH)) to the direction of arrow.
4 t ray
2 Pull the tray while pressing the claw of
the chassis in the direction of the arrow.
3 Pull the tray while pressing the claw of the chassis and the claw
of the tray in the direction of the arrow.
front panel side
lever (cam (CH))
claw
claw
claw
chassis
chassis
tray
7 c law
6 c law
8 c onnector
(2 core) (CN104)
3 flexible flat cable
(32core) (CN101)
4 flexible flat cable
(11core) (CN102)
5 flexible flat cable
(11core) (CN103)
9 CDR board
2 bottom plate
1 four screws
(+BVTP 2.6
× 8)

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
