RCD-W10

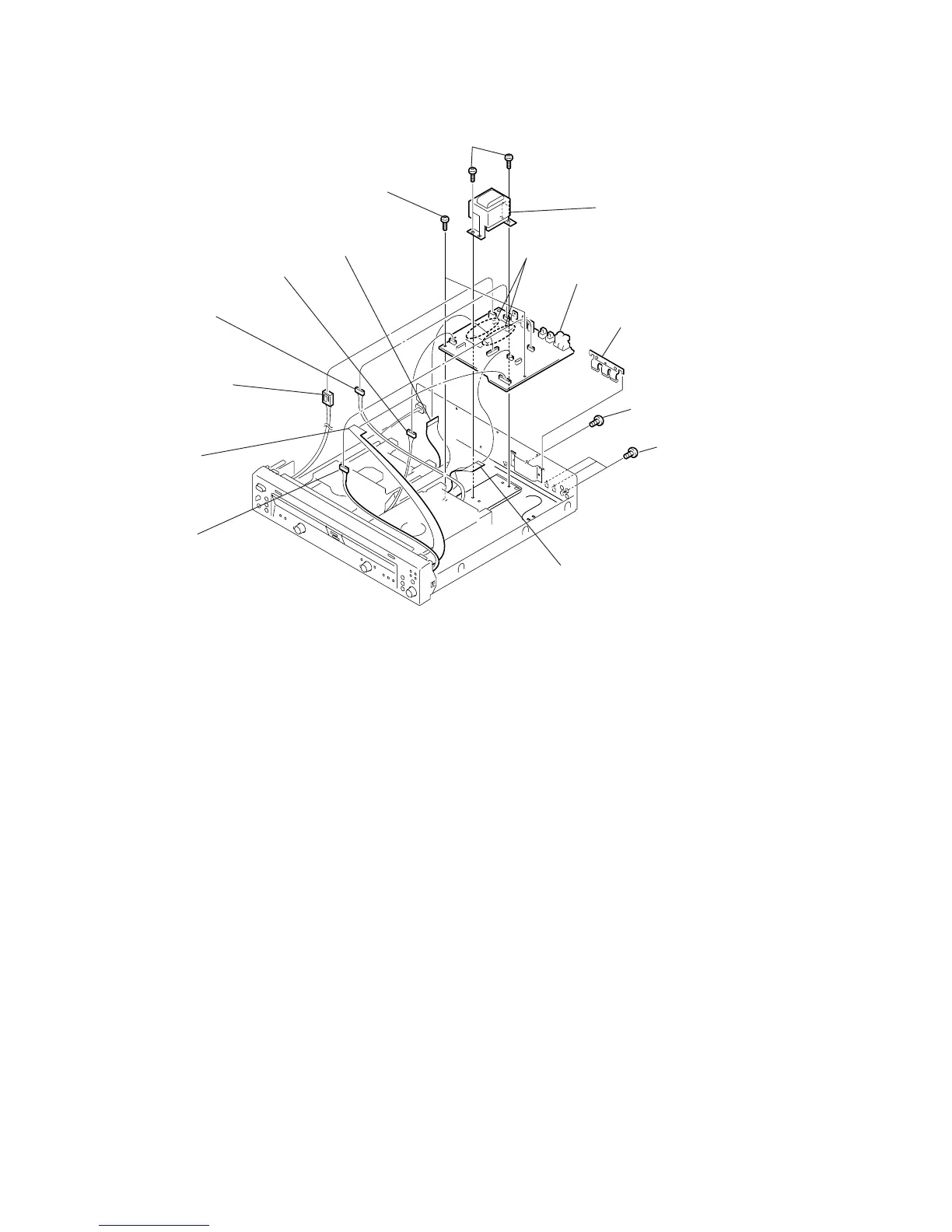

3-17. MAIN Board
4 connector
(2 core) (CN900)
2 c onnector
(3 core) (CN690)
1 flexible flat cable
(21core) (CN671)
3 flexible flat cable
(11core) (CN630)
5 flexible flat cable
(4core) (CN631)
7 flexible flat cable
(23core) (CN660)
6 connector
(5core) (CN680)
qa two screws (+BVTT 3 × 6)
q; three screws (+BVTP 3 × 8
)
8 s crew (+BVTP 3 × 8)
qs four screws (+BVTT 3 × 6)
qd Remove the soldering.
qg MAIN board
qf power transformer
9 bracket (TR)
