Sony RCD-W10 Service Manual

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories are given in the last of this parts
list.
•Abbreviation
CND : Canadian model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
SECTION 7
EXPLODED VIEWS
84
RCD-W10
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

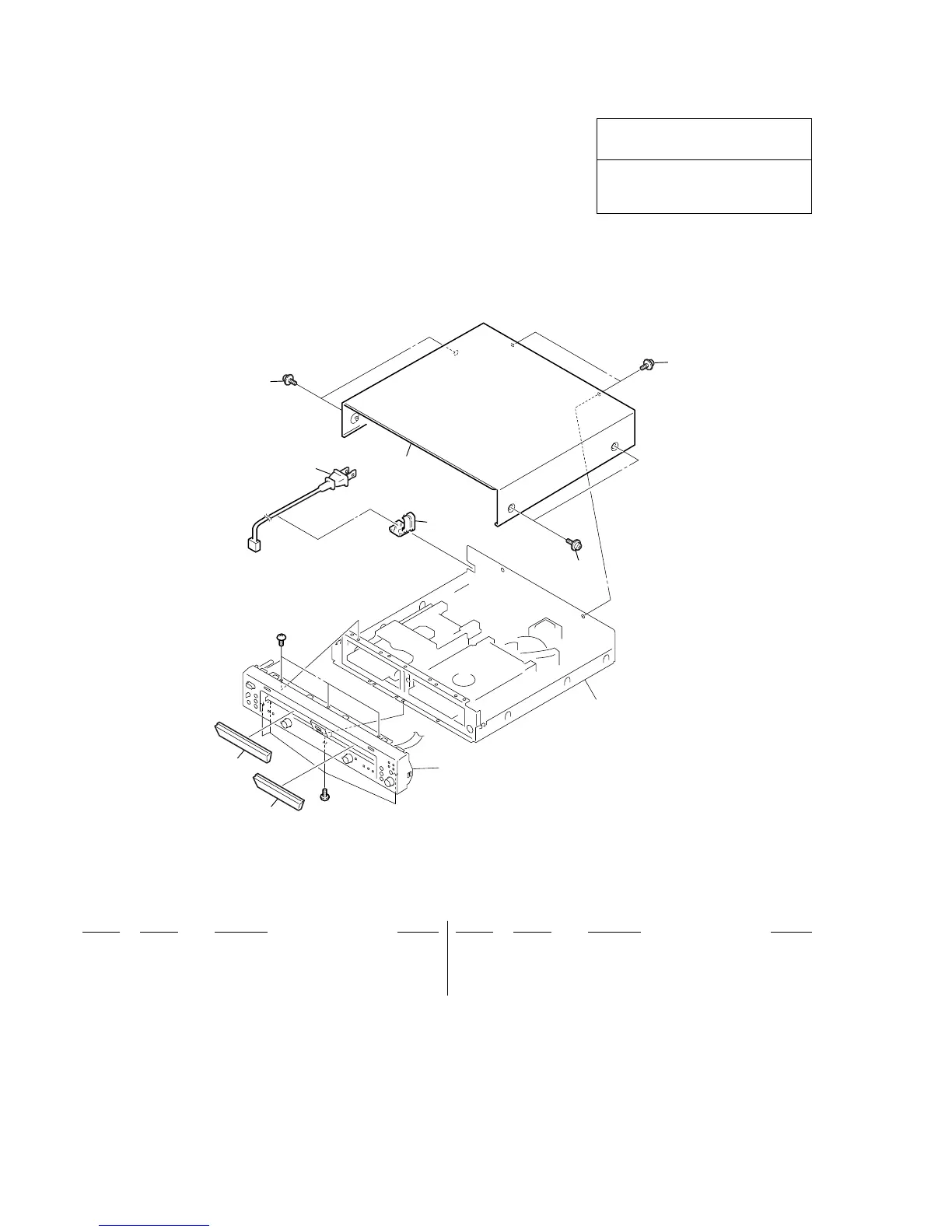

7-1. Case Section
1 4-238-393-01 PANEL (CDR), LOADING
2 4-238-905-01 PANEL (1CD), LOADING
* 3 3-703-244-00 BUSHING (2104), CORD
4 4-210-291-01 SCREW (CASE 3 TP2)
5 4-231-686-11 CASE (409538)
0 6 1-783-531-32 CORD, POWER (CND)
0 6 1-783-531-42 CORD, POWER (US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
4
4
4
5
3
1
2
6
#1
#1
Chassis section
Front panel section

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
