Sony RCD-W10 Service Manual

86
RCD-W10

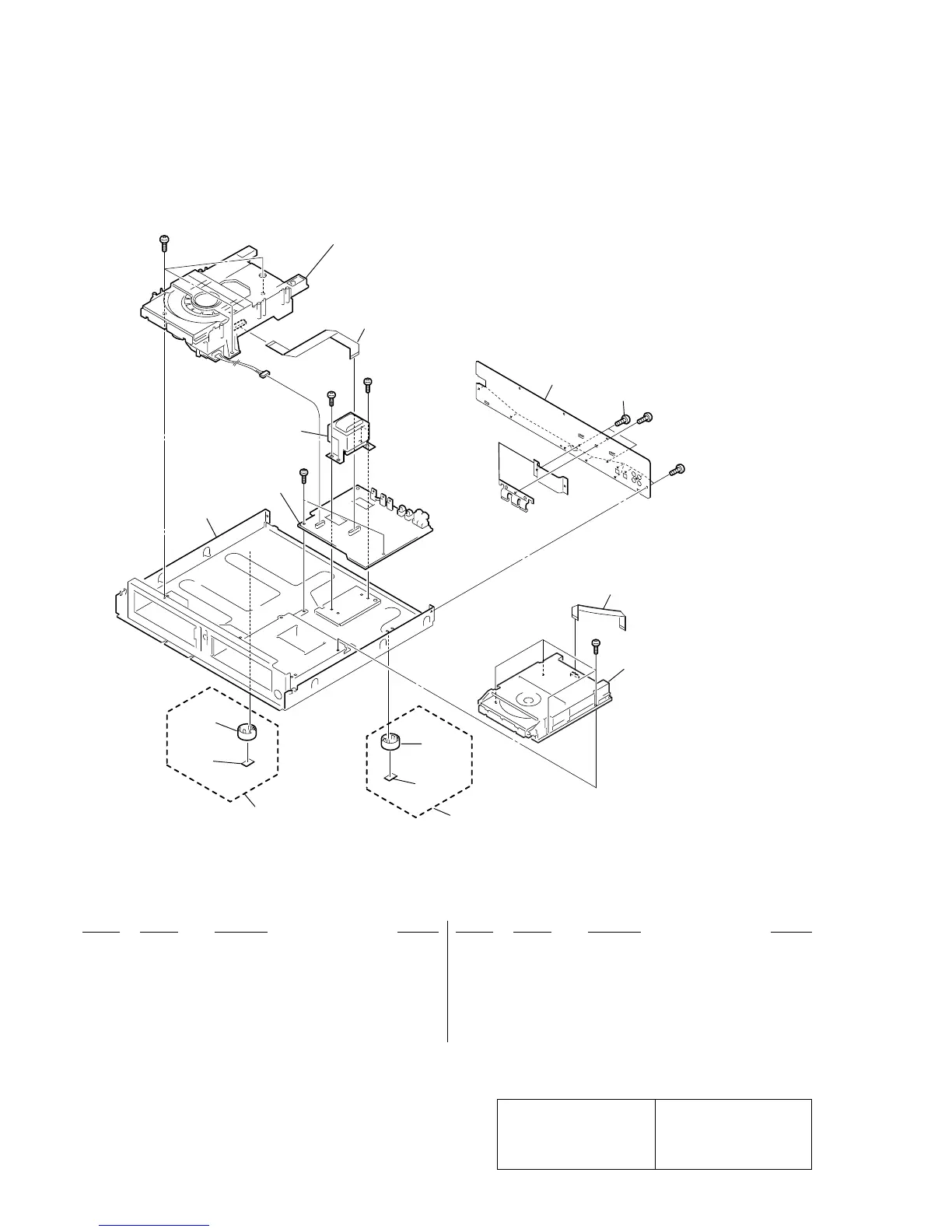

7-3. Chassis Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 X-4953-448-1 FOOT ASSY
102 4-977-358-11 CUSHION
103 4-232-237-01 FOOT (DIA. 30)
104 A-4728-265-A MAIN BOARD, COMPLETE
105 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
106 1-823-926-11 WIRE (FLAT TYPE) (23 CORE)
107 4-238-401-51 PANEL, BACK (US)
107 4-238-401-61 PANEL, BACK (CND)
108 1-823-922-11 WIRE (FLAT TYPE) (11 CORE)
0 T900 1-437-623-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#5 7-685-871-01 SCREW +BVTT 3X6 (S)
CD mechanism deck section
(CDM66C-30B61B)
CDR mechanism deck section
(CDM65-RBD1)
#1
#5
#5
#5
#1
T900
101
102
103
102
103
104
106
108
101
not
supplied
105
107
#1
#1
not
supplied
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
