Sony RCD-W10 - Case (409538); Loading Panel (1 CD)

7
RCD-W10
Note : Follow the disassembly procedure in the numerical order given.

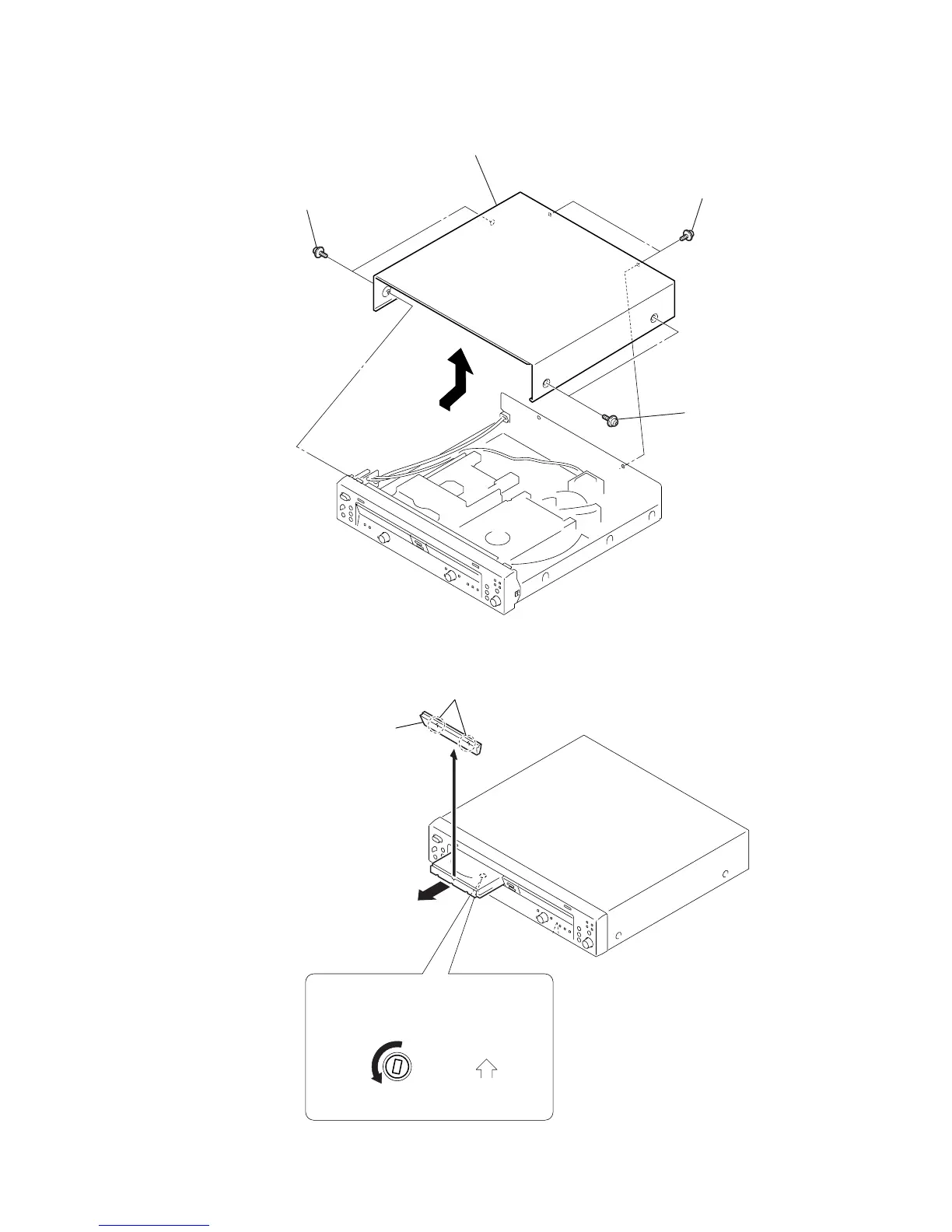

3-1. Case (409538)
3-2. Loading Panel (1CD)
4 case (409538)
3 two screws
(case 3 TP2 3 x 8
)
1 two screws
(case 3 TP2 3 x 8)
2 two screws
(case 3 TP2 3 x 8)
front panel side
1 Rotate the hole to the direction of arrow.
CD mechanism deck (CDM66C-30B61B)
4
2
3 two hooks
4 loading panel (1CD)
