Sony RCD-W10 Service Manual

87
RCD-W10

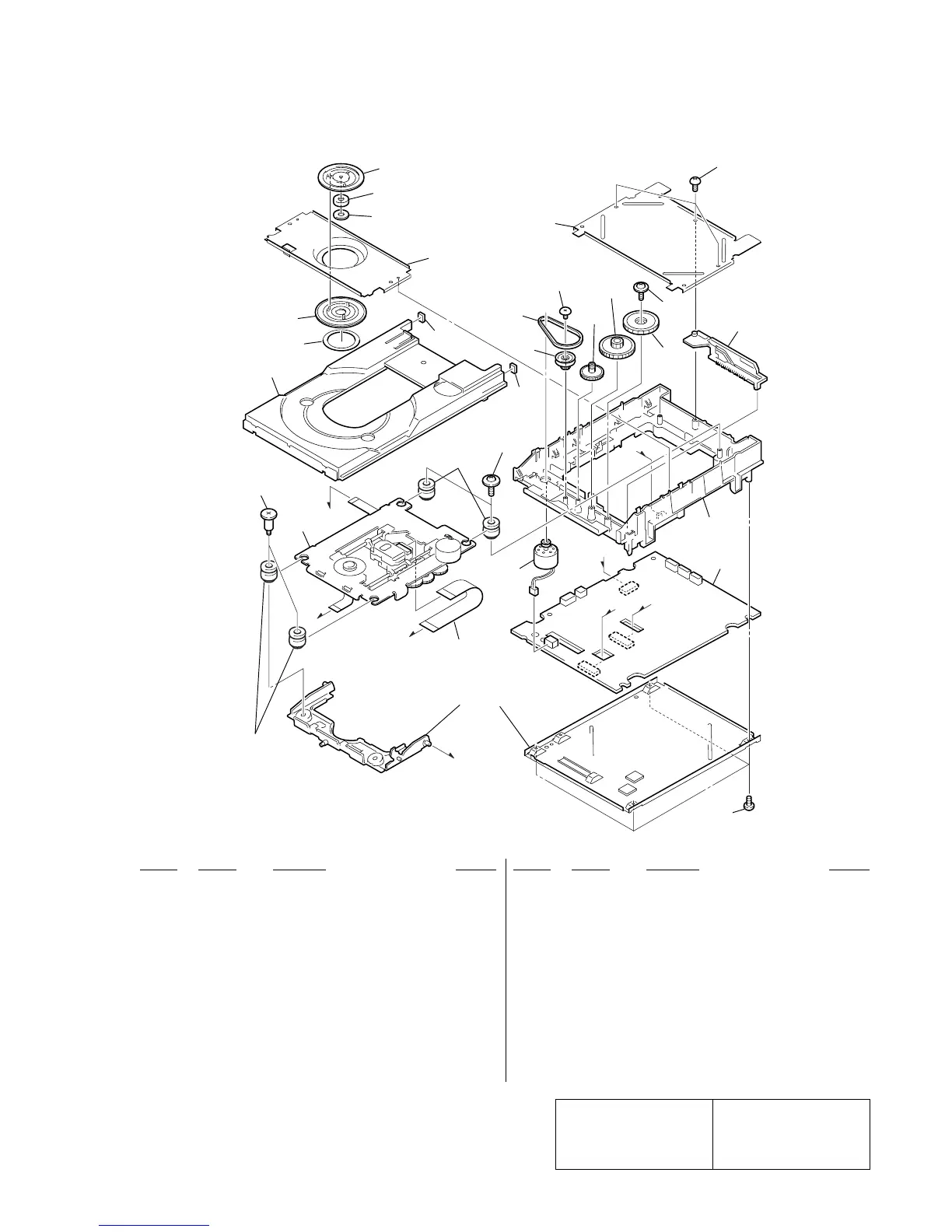

7-4. CDR Mechanism Deck Section (CDM65-RBD1)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
501 1-823-651-11 CABLE, FLEXIBLE FLAT (32 CORE)
502 4-237-168-01 SCREW, STEP
0 503 8-583-104-01 OPTICAL PICK-UP (KRM-220CAA)
504 4-237-167-01 SCREW (2X9) (G WITH),+P TAPPIN
505 4-237-181-01 TRAY
506 4-237-174-01 PULLEY (MAG)
507 4-951-620-01 SCREW (2.6X8), +BVTP
508 4-240-988-02 PULLEY (UPPER), PRESS
* 509 1-452-958-11 MAGNET (CHUCKING)
* 510 4-974-710-11 YOKE, PULLEY
511 4-237-172-01 HOLDER (MG)
512 4-974-711-01 SCREW (2X5)(P TYIGHT),(+)PTTWH
513 4-999-537-01 BELT (LOADING)
514 4-237-176-02 PULLEY (CG)
515 4-237-177-02 GEAR (A)
516 4-237-178-02 GEAR (B)
517 4-237-179-02 GEAR (C)
518 4-237-180-01 CAM (CH)
519 4-237-182-01 CHASSIS
520 A-4727-459-A CDR BOARD, COMPLETE
521 3-341-549-01 SCREW(2.6X8)(DIA.7.5),+ PTP WH
522 4-240-987-01 SHEET (DR)
523 4-232-682-01 CUSHION (66)
M201 A-4735-557-A MOTOR ASSY (LOADING)
501
502
503
505
506
508
509
510
511
518
512
517
519
520
521
516
515
513
514
507
504
M201
B
B
A
A
D
D
C
C
522
523
523
507
not
supplied
not supplied
not
supplied
not
supplied
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
