Sony RCD-W10 - Printed Wiring Board - MAIN Section (Side A)

6565
RCD-W10

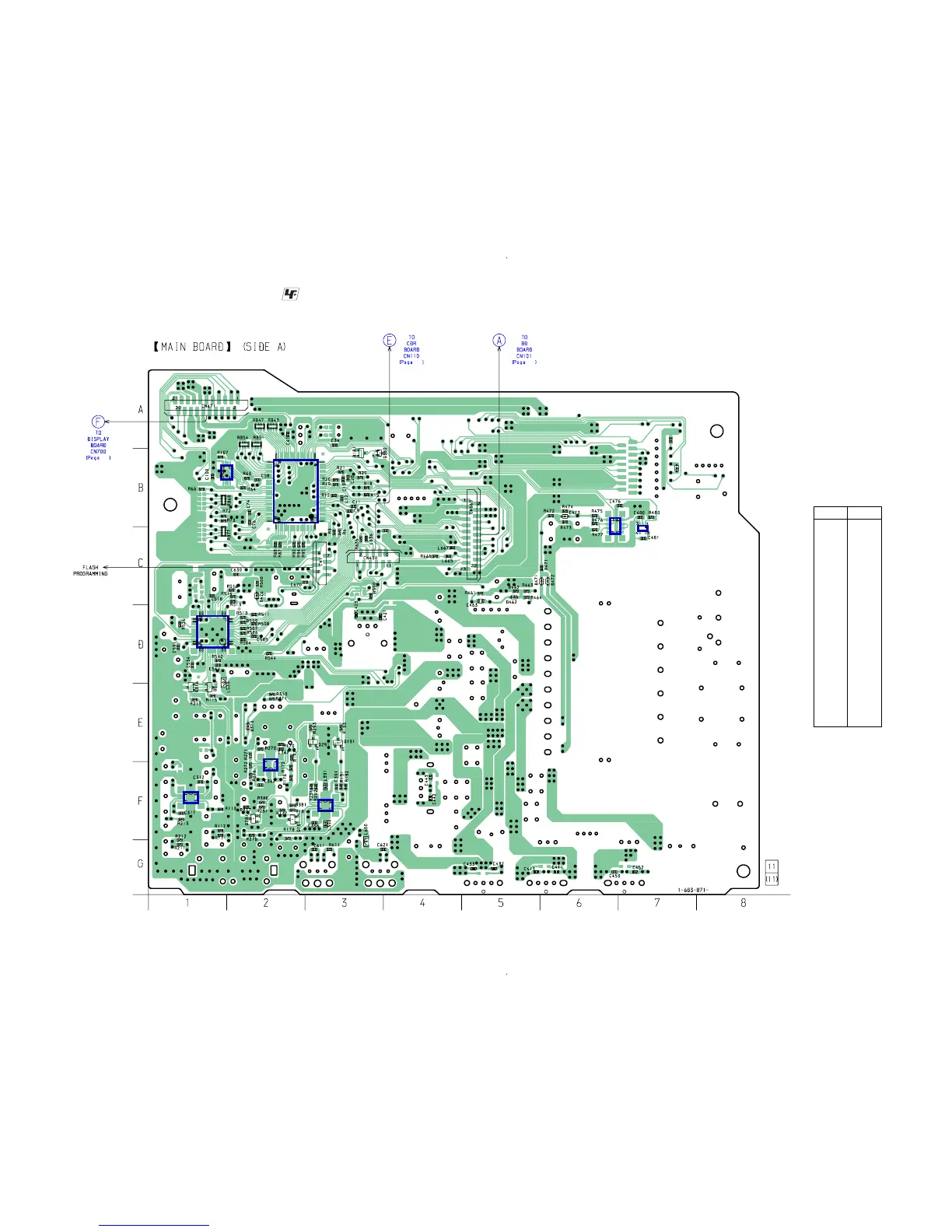

6-10. Printed Wiring Board – MAIN Section (Side A) –
• : Uses unleaded solder.
• See page 53 for Circuit Boards Location.
IC 100
IC 1
IC 500
IC 370
IC 310
IC 390
IC 476
IC 480
C802
D805
69
59 57
Ref. No. Location
D181 B-3
D310 E-2
D311 E-1
D316 E-1
D426 C-2
D462 C-5
D471 C-5
D472 C-6
D473 B-6
D805 B-7
IC1 B-2
IC100 B-1
IC310 F-1
IC370 F-2
IC390 F-3
IC476 C-6
IC480 B-7
IC500 D-1
Q181 F-2
Q191 E-3
Q281 F-2
Q291 E-3
Q380 B-3
• Semiconductor
Location
