Sony RCD-W10 - Printed Wiring Board - CD-R Section (Side B)

6060
RCD-W10

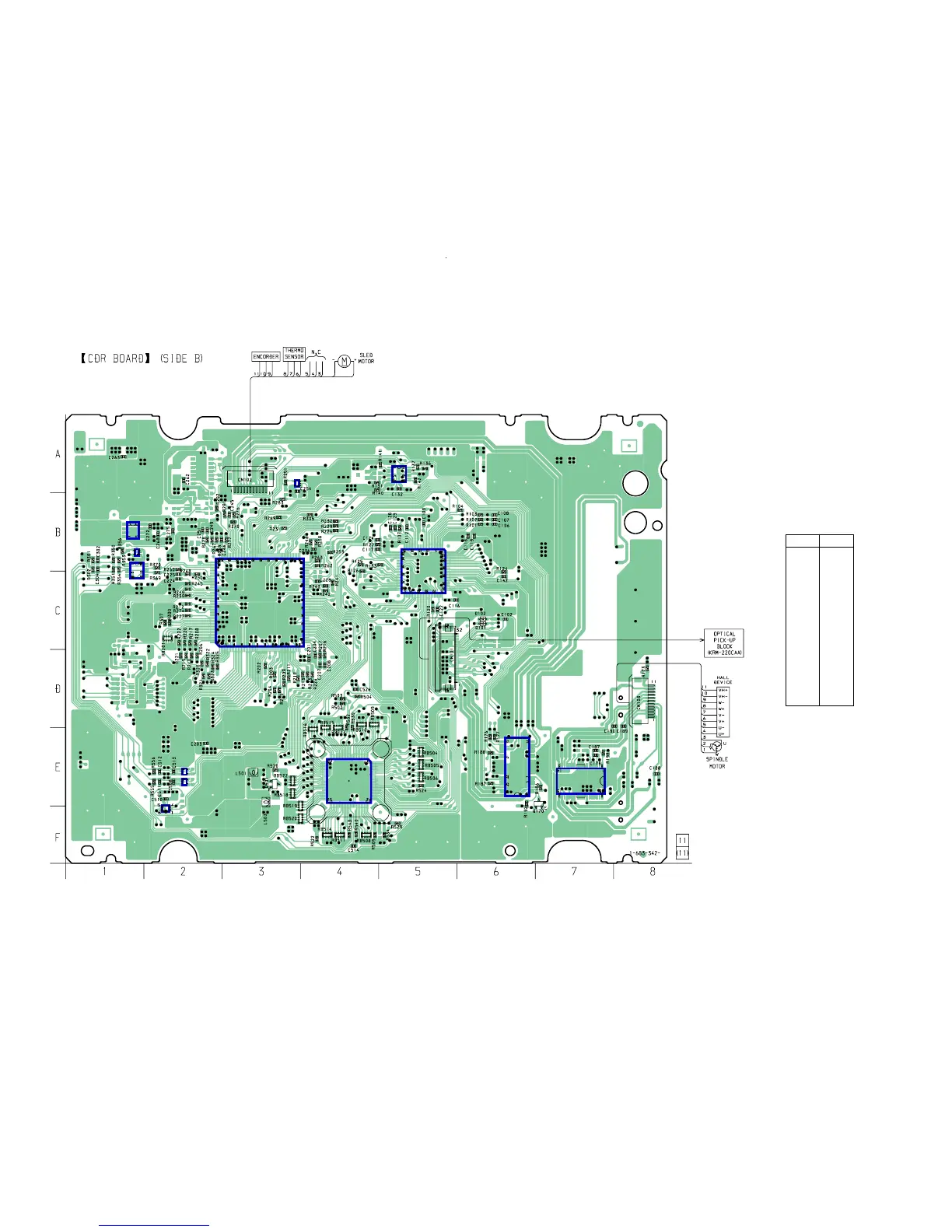

6-5. Printed Wiring Board – CD-R Section (Side B) –
• See page 53 for Circuit Boards Location.
IC 201
IC 501
IC 101
IC 301
IC 504
IC 171
IC 172
IC 506
IC 505
IC 302
IC 110
IC 103
IC 204
12
Ref. No. Location
D101 C-6
D102 C-6
IC101 C-5
IC103 A-5
IC110 B-1
IC171 E-6
IC172 E-7
IC201 C-3
IC204 A-3
IC301 C-1
IC302 B-1
IC501 E-4
IC504 E-2
IC505 F-2
IC506 E-2
Q170 F-7
Q501 E-3
• Semiconductor
Location
