Sony RCD-W10 Service Manual

85
RCD-W10

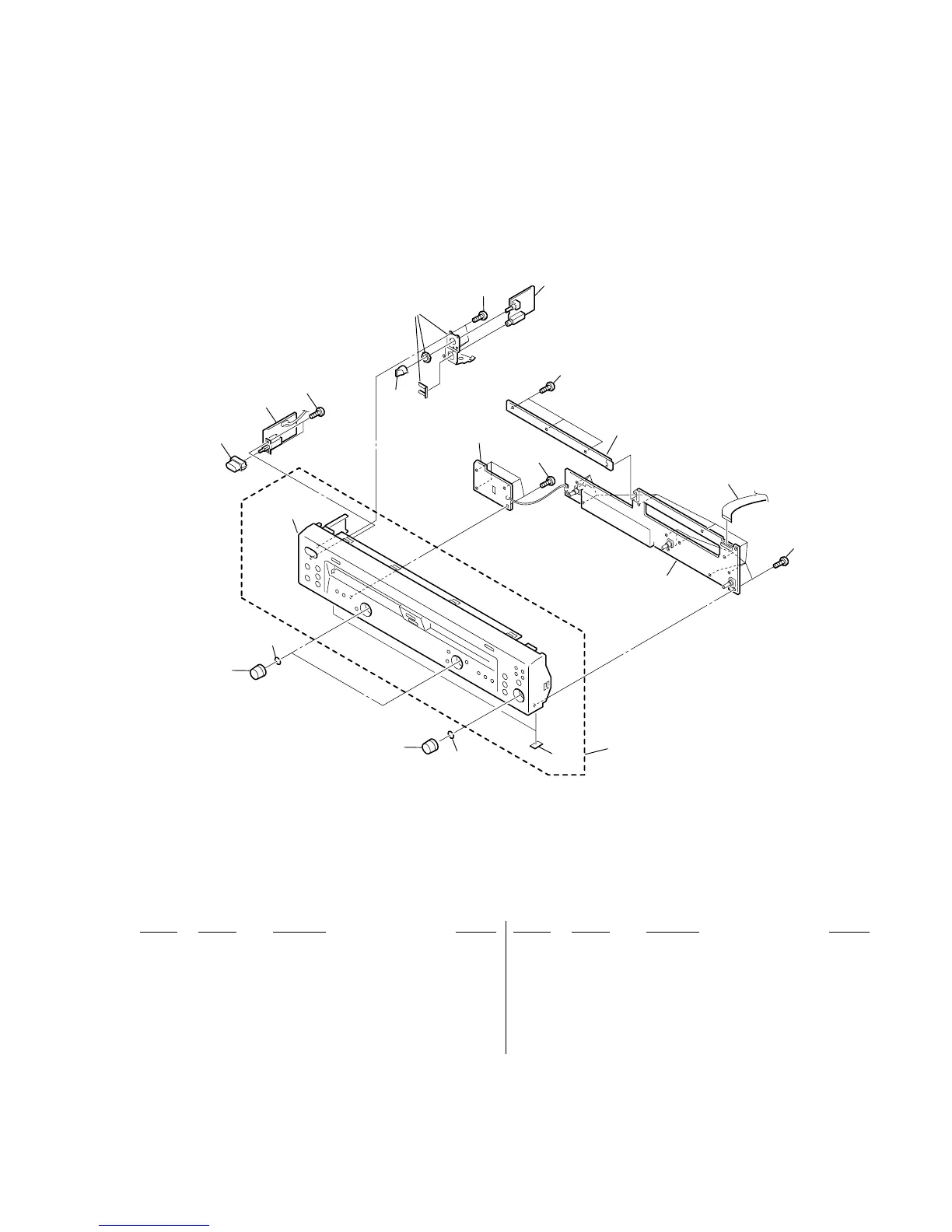

7-2. Front Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 X-4954-532-1 PANEL ASSY, FRONT
52 4-977-358-11 CUSHION
53 4-238-396-11 KNOB (AMS)
54 4-238-396-01 KNOB (AMS)
55 4-231-973-01 BUTTON (POWER)
56 1-683-869-11 POWER-SW BOARD
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 3-931-378-51 KNOB (F10)
59 1-683-868-11 HP BOARD
60 1-685-605-11 CD-EJECT BOARD
61 1-683-867-11 CD-SW BOARD
62 A-4728-267-A DISPLAY BOARD, COMPLETE
63 1-823-923-11 WIRE (FLAT TYPE) (21 CORE)
64 3-354-981-11 SPRING (SUS), RING
51
52
55
56
57
57
57
57
58
59
60
61
62
63
57
not
supplied
not
supplied
53
54
64
64

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
