Sony RCD-W10 Service Manual

88
RCD-W10

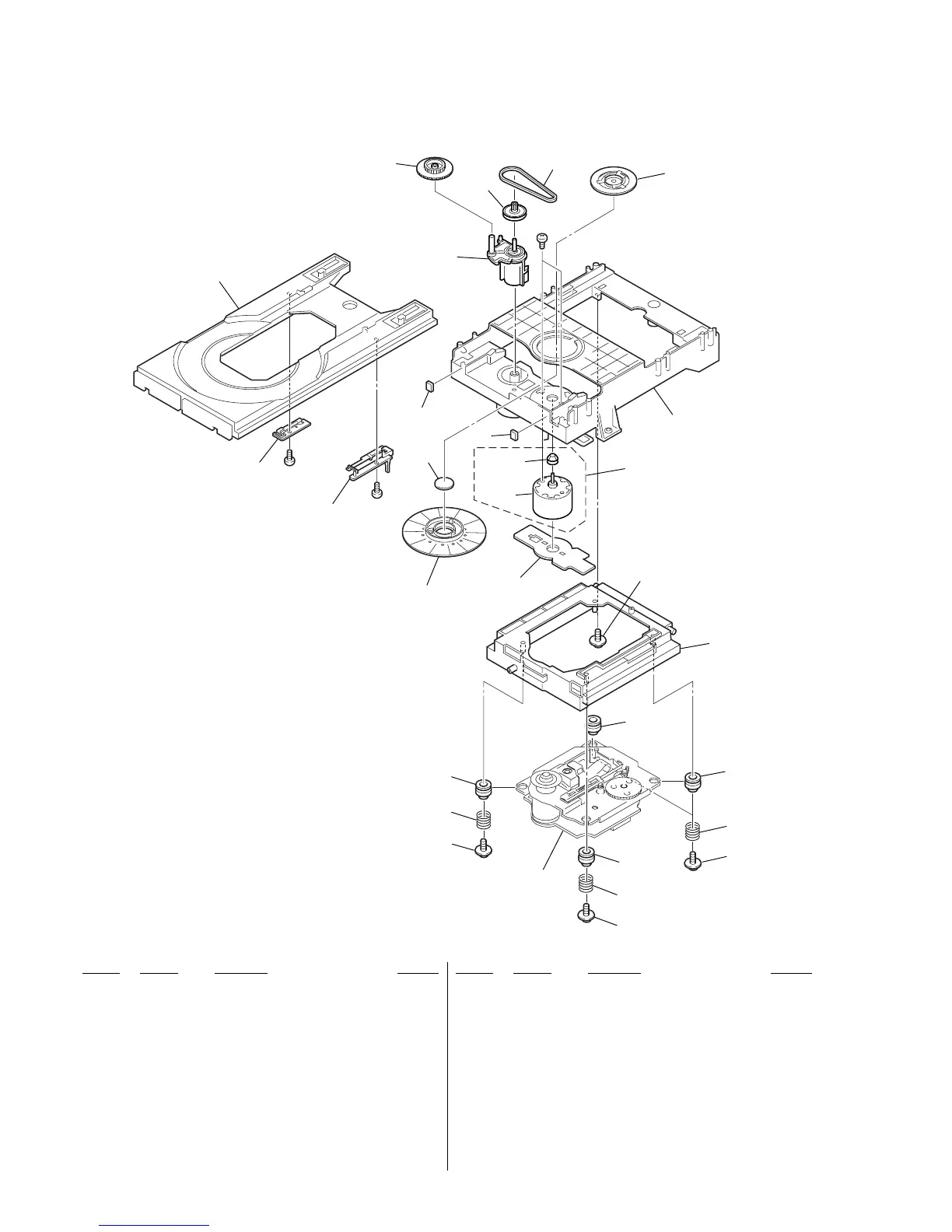

7-5. CD Mechanism Deck Section (CDM66C-30B61B)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
551 4-238-370-02 LEVER (SW)
552 4-238-371-01 LEVER (STP)
553 4-231-530-05 TRAY (66)
554 4-232-711-01 GEAR (LD)
555 4-232-710-01 PULLEY (LD)
556 4-232-713-01 BELT (LD)
557 4-238-368-01 PULLEY (B), CHUCKING
558 4-232-712-01 CAM (66)
559 4-231-529-04 CHASSIS (66)
560 4-232-682-01 CUSHION (66)
561 4-228-414-01 BRACKET (YOKE)
562 X-4954-474-1 PULLEY ASSY, CHUCKING
563 A-4604-363-A MOTOR (L) ASSY (LOADING)
564 1-645-721-11 LOADING BOARD
565 4-227-899-01 SCREW (DIA. 12), FLOATING
566 4-238-369-02 HOLDER (BU)
567 4-240-820-01 INSULATOR (B) (BU-30B)
568 4-238-372-01 SPRING (INSULATOR),COMPRESSION
569 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
M151 1-763-790-11 MOTOR, DC (LOADING)
#2 7-621-775-10 SCREW +B 2.6X4
#3 7-685-133-19 SCREW +P 2.6X6 TYPE2 NON-SLIT
not
supplied
#3
M151
base unit section
(BU-30BBD61B)
#3
#2
551
552
553
554
557
559
558
560
560
563
561
562
564
565
566
567
568
569
568
568
569
569
567
567
567
555
556

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
