Sony RCD-W10 Service Manual

8
RCD-W10

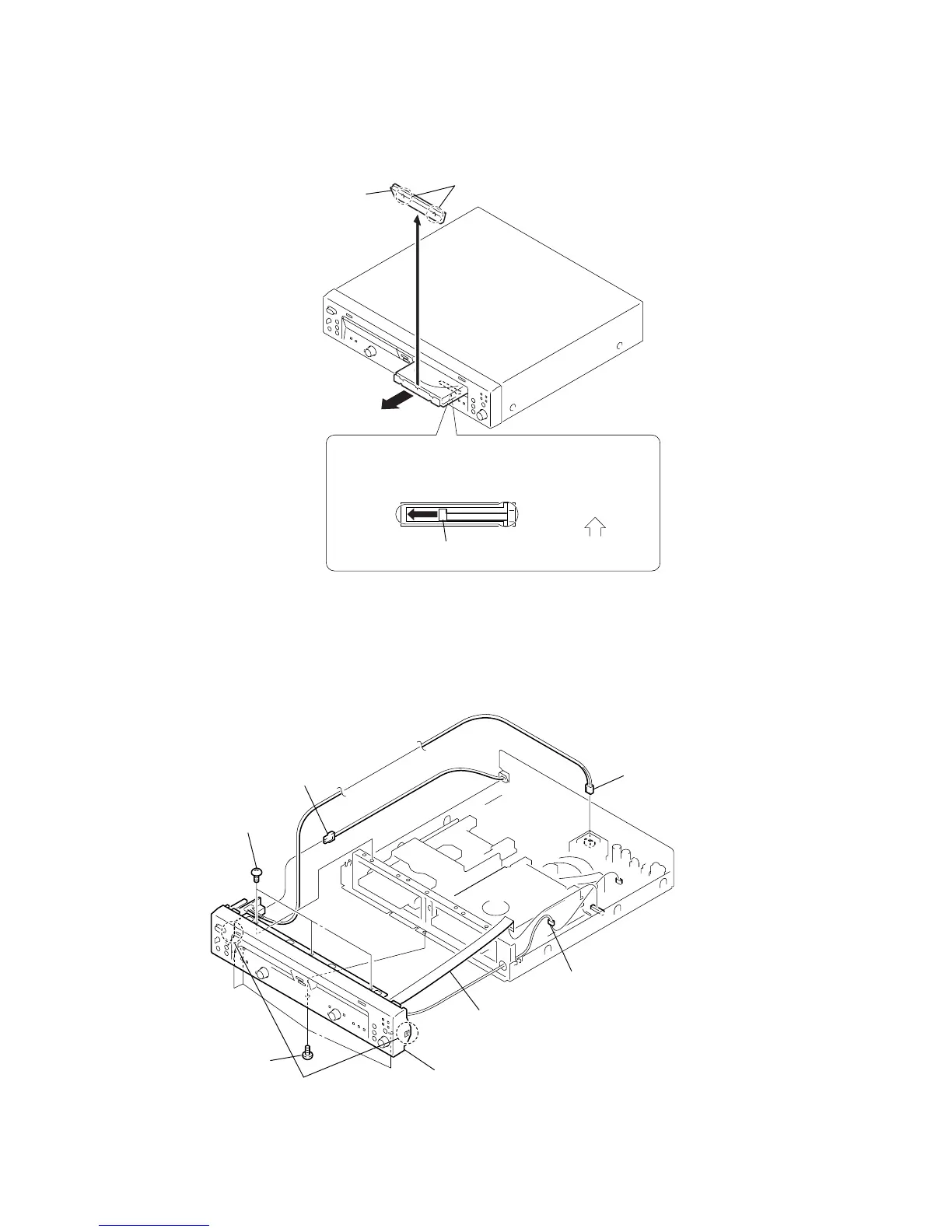

3-3. Loading Panel (CDR)
3-4. Front Panel Section
1 Slide the lever to the direction of arrow.
2
4
front panel side
CD mechanism deck (CDM65-RBD1)
lever
3 two hooks
5 l oading panel (CDR)
7 t wo claws
8 front panel section
1 c onnector
(2 core) (CN900
)
2 connector
(3 core) (CN690)
4 connector
(2 core) (CN920)
5 three screws
(+BVTP 3
× 8)
6 four screws
(+BVTP 3
× 8)
3 flexible flat cable
(21core) (CN671)

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
