Sony RCD-W10 - DISPLAY Board; CDR Mechanism Deck (CDM65-RBD1)

9
RCD-W10

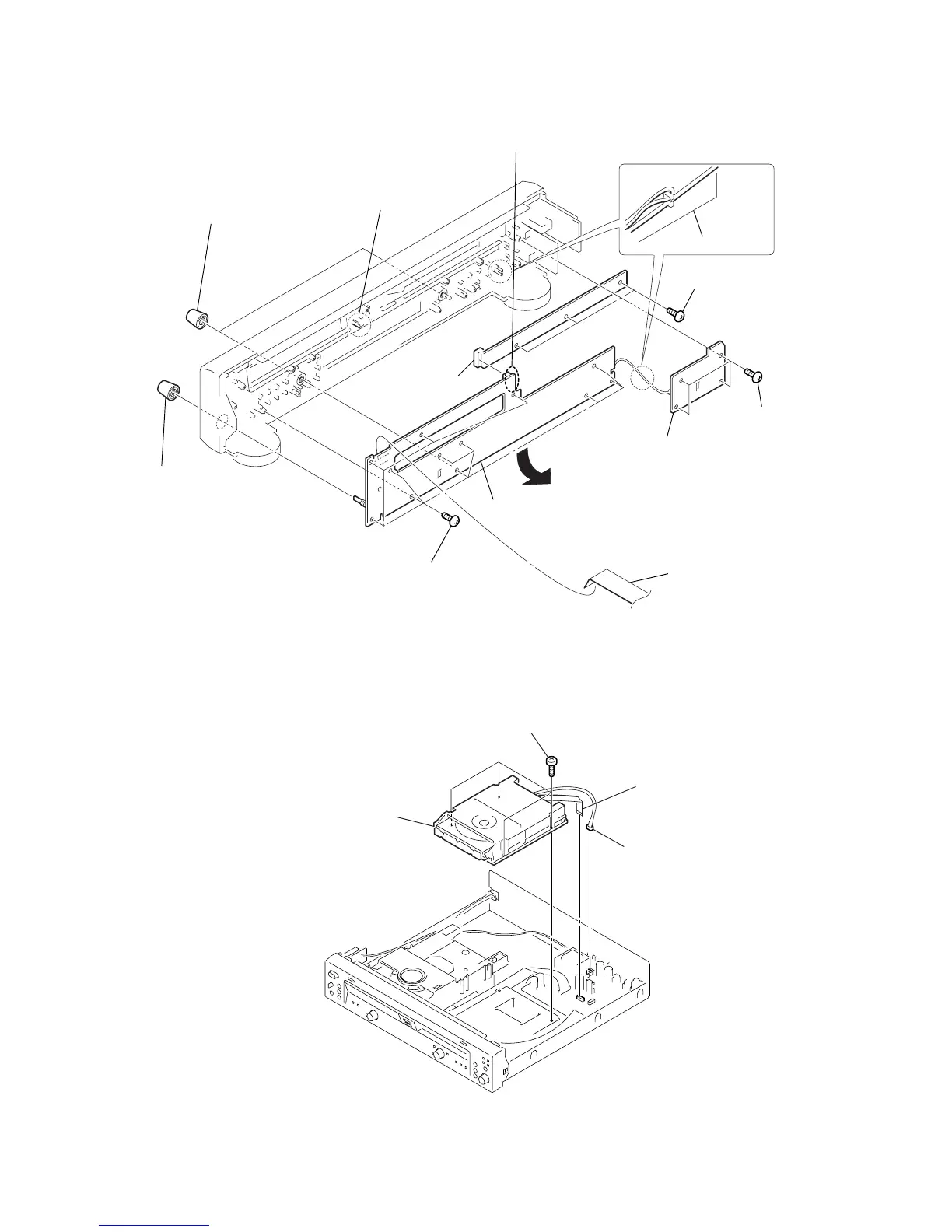

3-5. DISPLAY Board
3-6. CDR Mechanism Deck (CDM65-RBD1)
6 twelve screws
(+BVTP 2.6 × 8)
3 four screws
(+BVTP 2.6 × 8
)
5 three screws
(+BVTP 2.6 × 8)
2 two knobs (AMS)
1 knob (AMS)
9 CD-EJECT board
7 c law
8 Remove the soldering.
HARNESS
PROCESSING
q; flexible flat cable
(21core) (CN700)
qa DISPLAY board
4 CD-SW board
POWER-SW board
3 four screws (+BVTP 3 × 8)
2 flexible flat cable
(11core) (CN630)
1 connector
(4P) (CN631)
4 CDR mechanism deck
(CDM65-RBD1)
