Sony RDR GX7 Service Manual

2-2

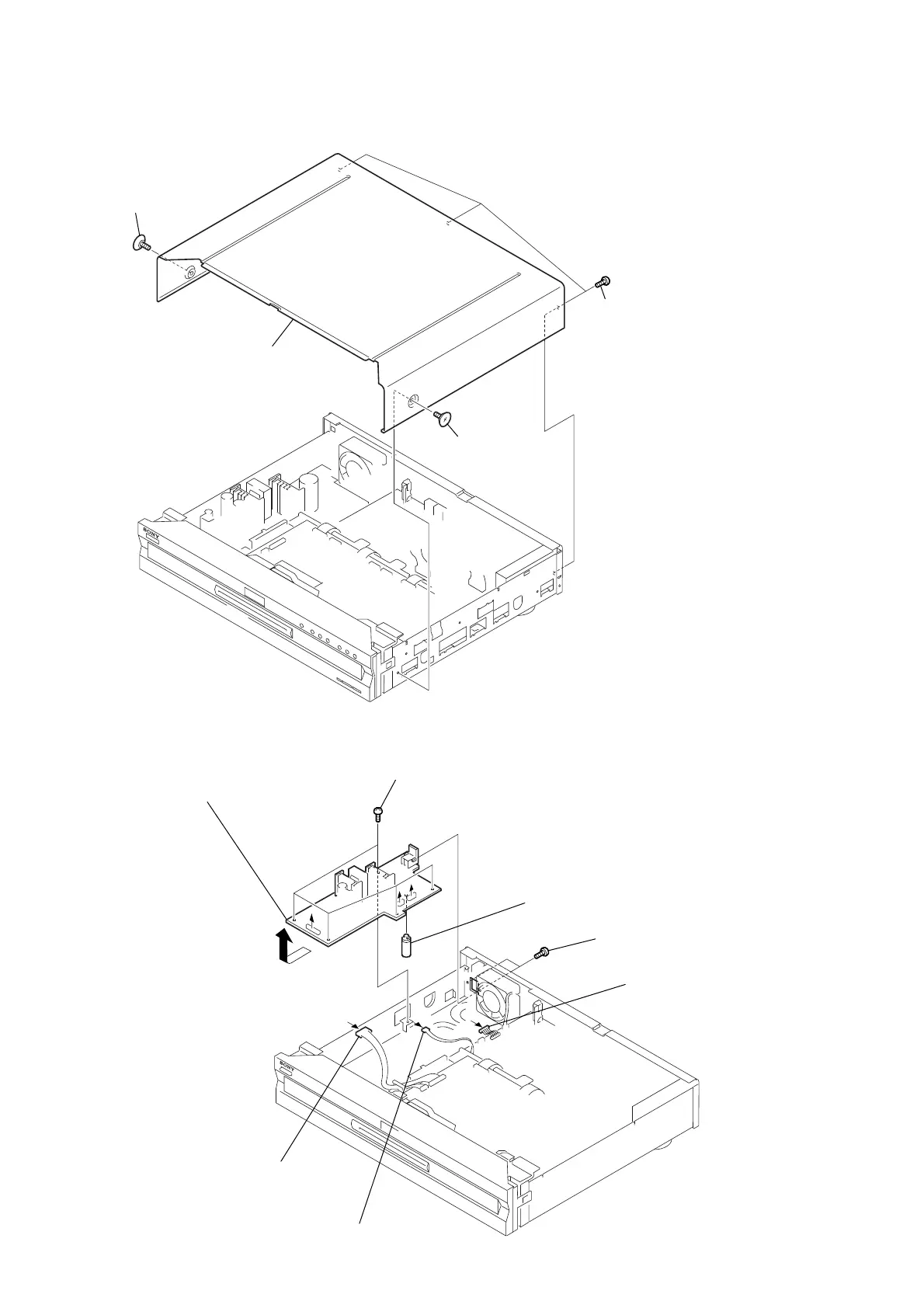

2-1. TOP CASE
2-2. POWER BLOCK
NOTE: Follow the disassembly procedure in the numerical order given.
4 Top case
1 Tapping screw
2 Tapping screw
3 Three tapping screws
(+BV sumitite B3 × 10)
4 Two tapping screws
(+BV sumitite B3
× 10)
6 Remove the power block in the
direction of the arrow.
5 Five tapping screws
(+BV sumitite B3
× 8)
1 Connector (CN4, 14P)
2 From DVD drive (CN1, 4P)
3 Connector (CN3, 13
P
7 P.C. board spacer
A
A
B
C
B
C

Sony RDR GX7 Specifications

General

I/O ports	Analog AV In/Out S-Video In/Out Component Video Out DV Terminal (i.LINK) 2 x Scart (1 including RGB in) Digital Audio Out
