8-2
51 3-081-146-02 PANEL, ALUMINUM
52 3-081-147-11 WINDOW, INDICATION
53 3-081-126-22 DOOR, ALUMINUM
54 4-921-277-11 SCREW (B2.6X8), TAPPING, BIND
55 3-081-128-01 PLATE, GROUND DOOR
56 3-736-779-71 MAGNET
57 3-081-129-01 SHAFT (R)
58 3-081-127-01 RETAINER, MAGNET
59 3-081-131-01 SHAFT (C)
60 3-047-468-01 DAMPER
61 3-081-125-01 BASE, DOOR

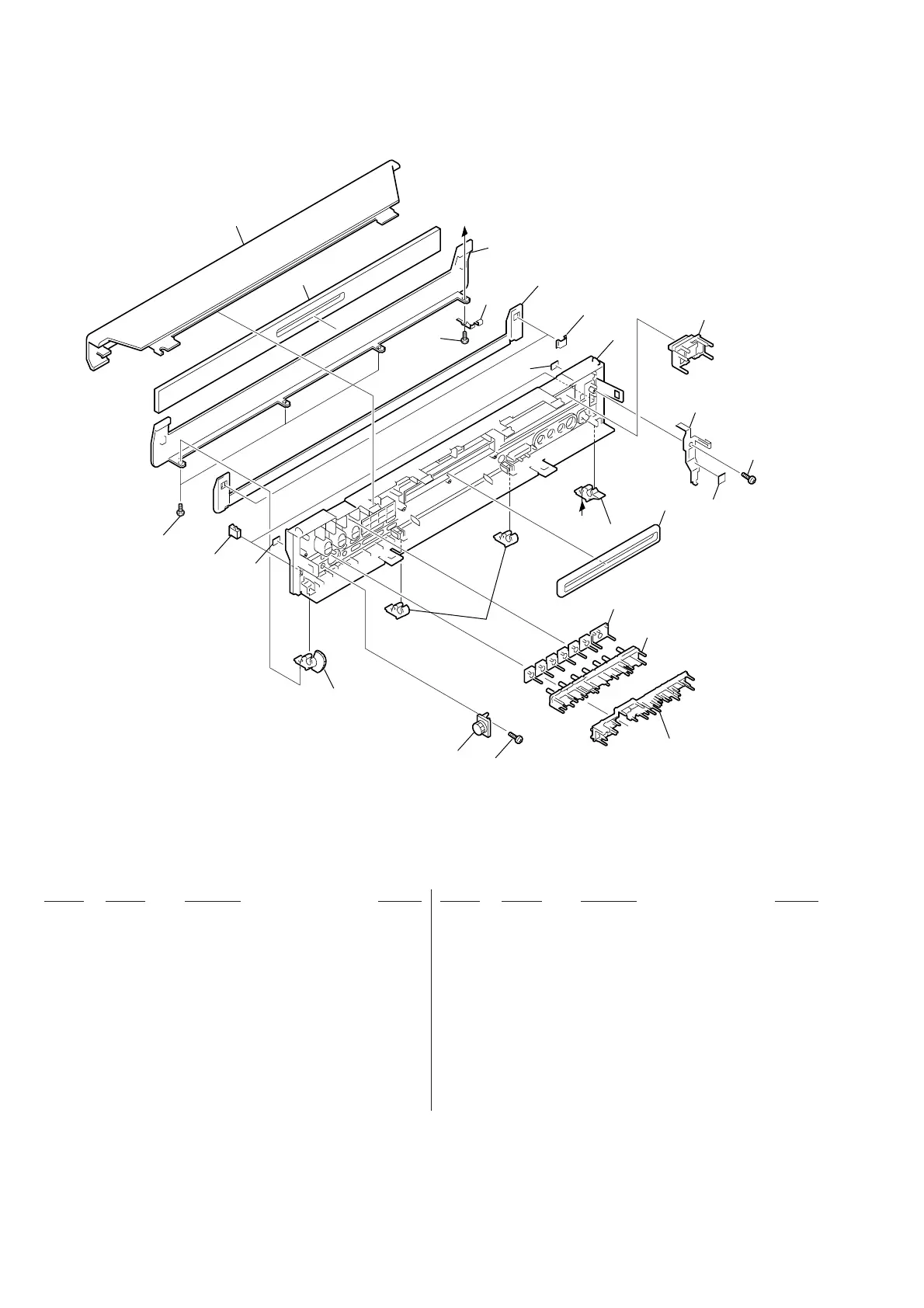

8-1-2. FRONT PANEL SECTION
62 3-081-117-03 BUTTON, CONTROL
63 3-081-118-01 INDICATOR(PLAY)
64 3-081-130-01 SHAFT (L)
65 3-081-156-01 CUSHION, DRIVE
66 3-080-678-11 PANEL, BASE
67 3-081-119-02 SPRING, GROUND
68 X-3953-197-1 BUTTON ASSY, POWER
69 X-3953-196-1 BUTTON ASSY, PLAY
70 3-081-428-01 CUSHION, DOOR
71 3-083-631-11 DAMPER, SOUND
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
D
D
51
52
54
55
54
61
57
53
68
67
54
71
65
69
63
66
58
70
56
70
60
54
62
59
64
