8-2

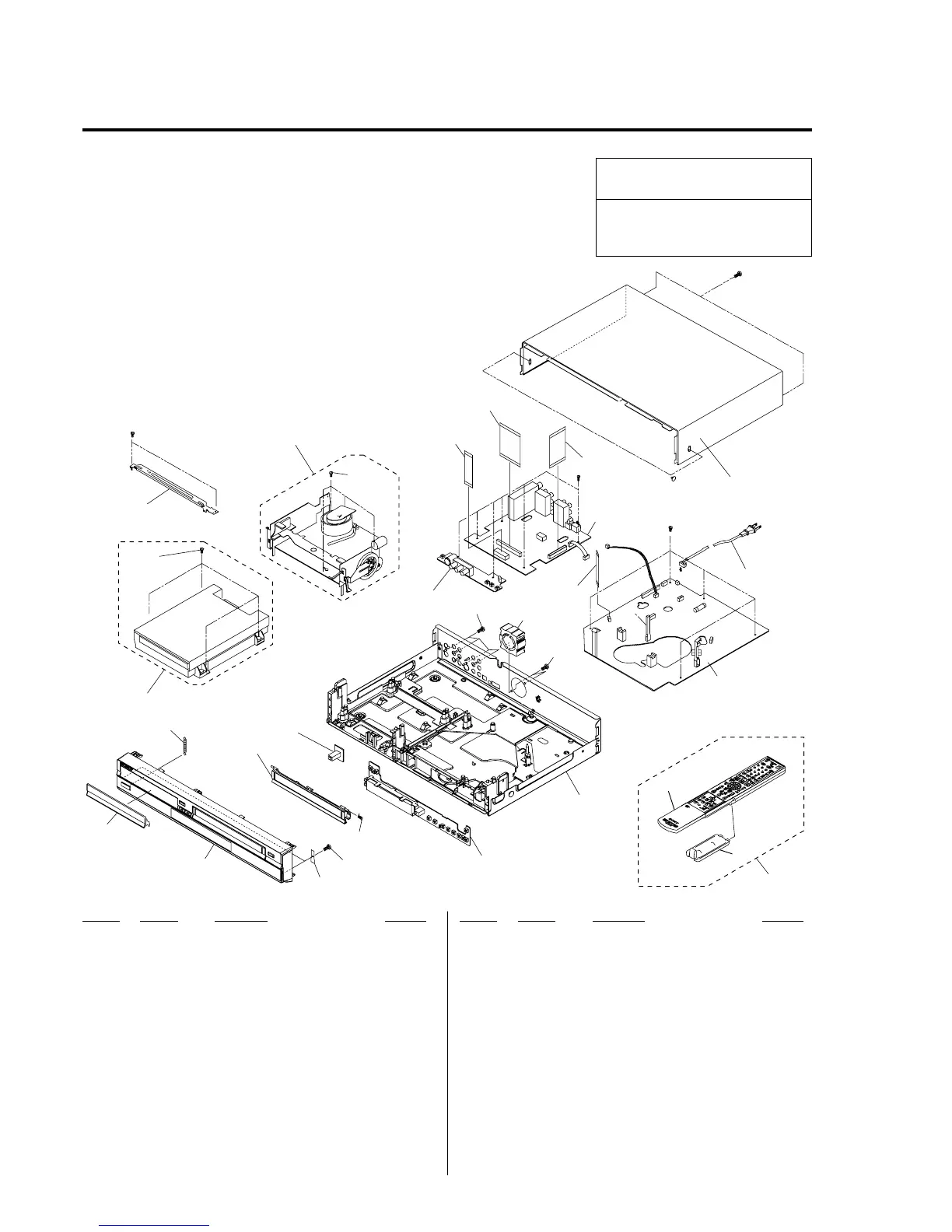

8-1-1 Cabinet Assembly
8-1 EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 9-885-102-46 ASSY -PANEL FRONT (VX530)
1 9-885-103-68 ASSY -PANEL FRONT (VX521)
2 9-885-079-18 SCREW-TAPTITE
3 9-885-102-48 DOOR-TRAY
4 9-885-101-41 SPRING ETC-DOOR TRAY
5 9-885-102-49 ASSY -DVDR DECK;DVD RW DRIVE
6 9-885-090-91 FAN-DC
7 9-885-069-91 SCREW-SPECIAL
8 9-885-069-88 SCREW-TAPTITE ZPC (WHT)
9 9-885-102-43 CABLE-FLAT;30V, 80C, 360MM, 40P
10 9-885-093-70 DOOR-BATTERY REMOCON (for RMT-D224A)
11 9-885-101-19 ASSY DECK
12 9-885-094-69 DOOR-REMOCON (for RMT-D224A)
A001 9-885-090-47 REMOCON-ASSY (RMT-D224A)
C003 9-885-102-47 DOOR-CASSETTE
C012 9-885-037-13 SPRING ETC MASK
C015 9-885-102-45 CABINET-TOP
CN01B 9-885-095-60 CABLE-FLAT 27PIN
* CNJ02B 9-885-102-66 CABLE-FLAT 14P
P022 9-885-102-50 ASSY PWB-JACK (DVD JACK MAIN BOARD)
(US, Canadian)
P022 9-885-103-75 ASSY PWB-JACK (DVD JACK MAIN BOARD)
(Mexican)
0 P025 1-824-674-11 POWER CORD EP2 SPT-2 (US, Canadian)
0 P025 9-885-083-78 CBF-POWER CORD (Mexican)
W001 9-885-079-18 SCREW-TAPTITE
W202 9-885-069-85 SCREW-TAPTITE ZPC (YEL) SWR
W252 3-075-262-01 SCREW BH 4X12
12
10
C015
W001
W001
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
W202
C003
C012
W001
W001
CNJ02B
CN01B
P025
A001
P022
W252
W202
not
supplied
5
9
3
4
8
6
7
2
1
11
( )
Except for Assy Cylinder,
H/Cleaner lever Assy
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
