Sony RDR-VX521 - Lever Pinch Drive, Lever Tension Drive Removal; Assy Lever Tension, Assy Band Brake Removal

2-12
STOPPER
"A"
3 ASS'Y BAND
BRAKE
2 ASS'Y LEVER
TENTION
1 SPRING TENTION
LEVER
MARK[B]
2-4-11 Lever Pinch Drive,
Lever Tension Drive Removal
1) Remove the Lever Pinch Drive 1, Lever Tension Drive 2.

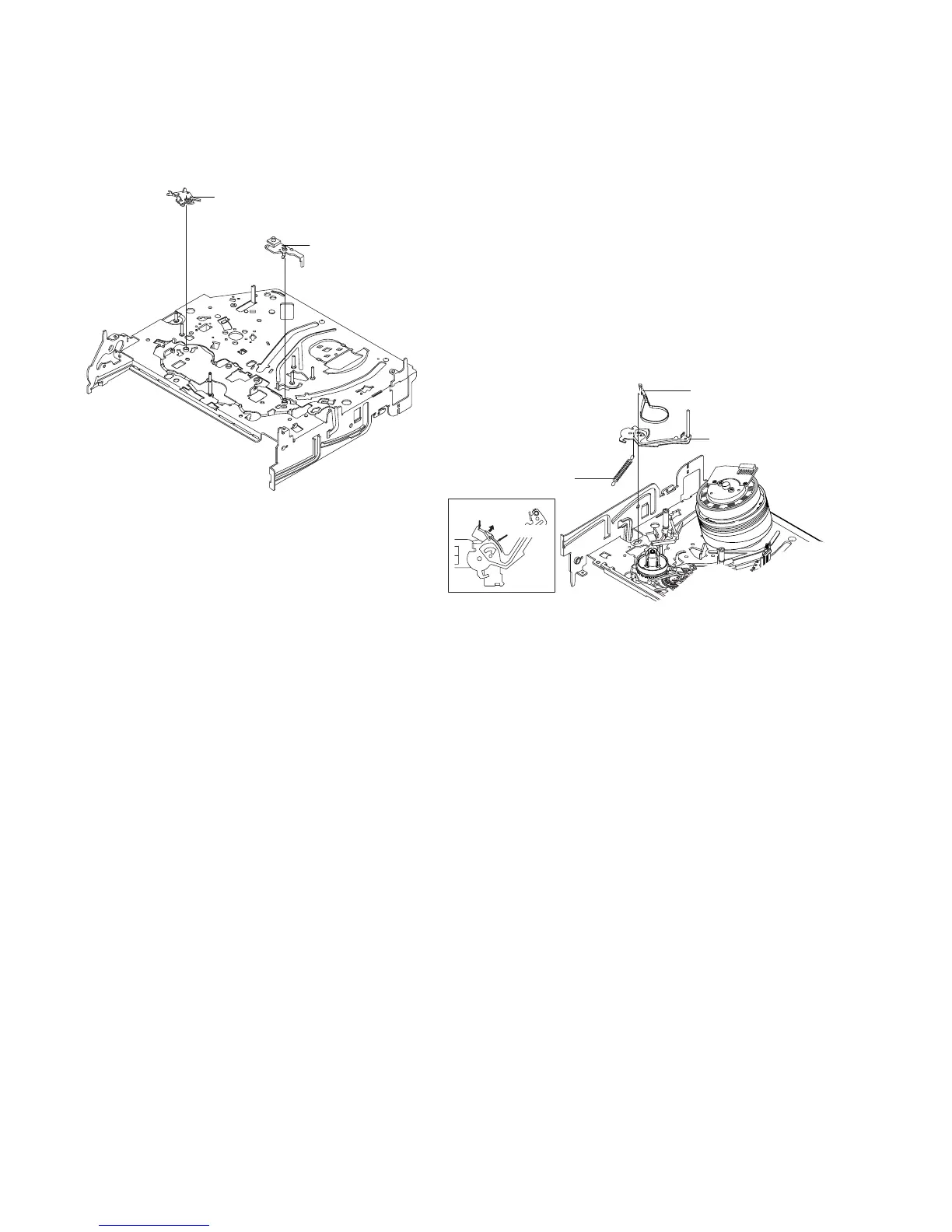

Fig. 2-23 Lever Pinch Drive,
Lever Tension Drive Removal
2-4-12 Ass’y Lever Tension,
Ass’y Band Brake Removal
1) Remove the Ass’y Lever Brake S (Refer to Fig 2-25).
2) Remove the Spring Tension Lever 1.
3) Rotate stopper of Main Base in the direction of arrow “A”.
4) Lift the Ass’y Lever Tension 2 & Ass’y Band brake 3.
Note:
1) When replacing the Ass’y Lever Tension 2, be sure to apply
Grease on the post,
2) Take care not to touch stain on the felt side, and not to be folder
and broken Ass’y Band brake
3) After Ass’y Lever Tension seated, Rotate stopper of Main Base
to the Mark[B].
Fig. 2-24 Ass’y Lever Tension,
Ass’y Band Brake Removal
1 LEVER PINCH DRIVE
2 LEVER TENSION
DRIVE
