2-18
1 3 SCREWS
2
PLATE GROUND
DECK
3 ASS'Y CYLINDER
1
ASS'Y
SLIDER S
2 ASS'Y
SLIDER T
2-4-23 Ass’y Slider S, T Removal
1) Move the Ass’y Slider S, T 1, 2 to slot, and then lift it to
remove. (Refer to arrow)

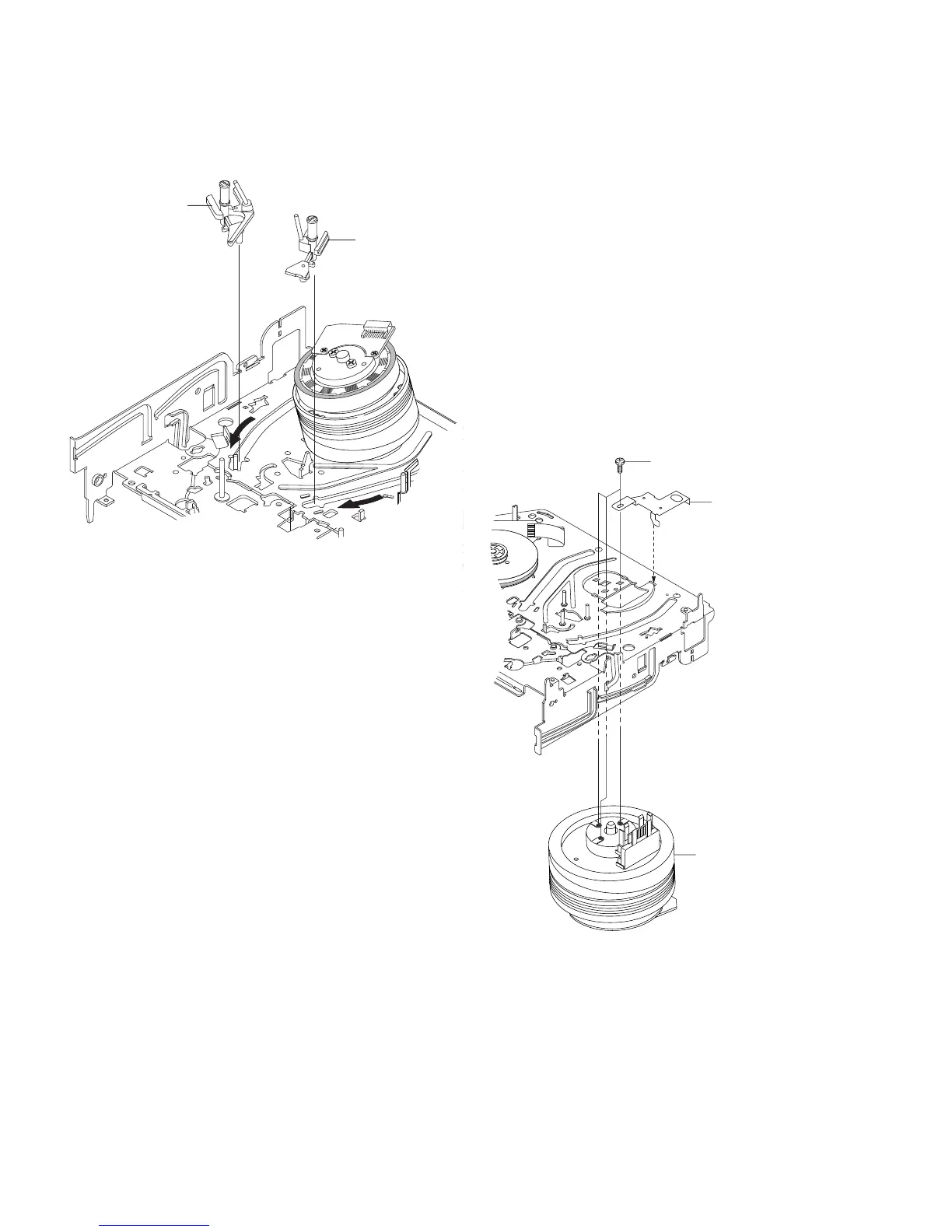

Fig. 2-36 Ass’y Slider S, T Removal
2-4-24 Plate Ground Deck, Ass’y Cylinder Re-
moval
1) Remove the 3 Screws 1.
2) Lift the Plate Ground Deck 2.
3) Lift the Ass’y Cylinder 3.
Assembly:
1) Match the 3 holes in the bottom of Ass’y Cylinder 3 to the 3
holes of Main Base as attending not to drop or knock the Ass’y
Cylinder 3.
2) Tighten the 1 Screw 1.
3) Match the Plate Ground Deck 2 to the Hole of Base Main.
4) Tighten the other 2 Screws 1.
Note:
1) Take care not to touch the Ass’y Cylinder 3 and the tape guide
post at reinstalling.
2) When reinstalling, Don't push down too much on Screw Driver.
Fig. 2-37 Plate Ground Deck, Ass’y Cylinder Removal
