Sony RDR-VX521 - Chassis Removal; VCR Main PCB Removal

2-2

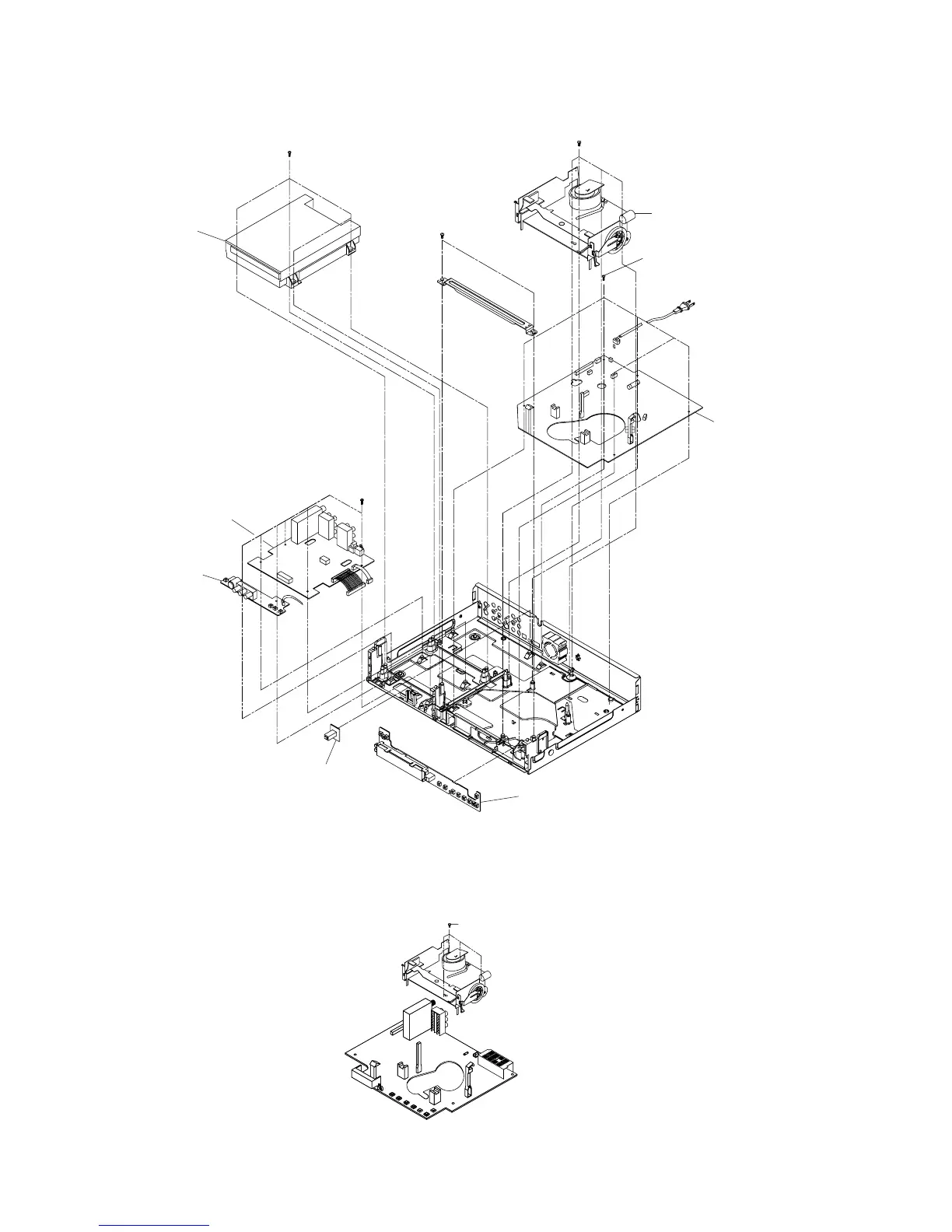

Fig. 2-5 Chassis Removal
2-1-5 Chassis Removal
2-1-6 VCR Main PCB Removal
Fig. 2-6 VCR Main PCB Removal
5 REMOVE
5 SCREWS
2 REMOVE 4 SCREWS
VCR DECK
VCR MAIN PCB
FUNCTION TIMER PCB
DV JACK PCB
FRONT JACK PCB
DVD JACK MAIN PCB
4 REMOVE 6
SCREWS
1 REMOVE 2 SCREWS
3 REMOVE 4 SCREWS
DVD DECK
1 REMOVE 4 SCREWS
