2-9
3 CONNECTOR
WAFER
1 CABLE FLAT
2 CONNECTOR W AFER
2-4-5 Gear Worm Wheel Removal
1) Remove the Gear Worm wheel 1.

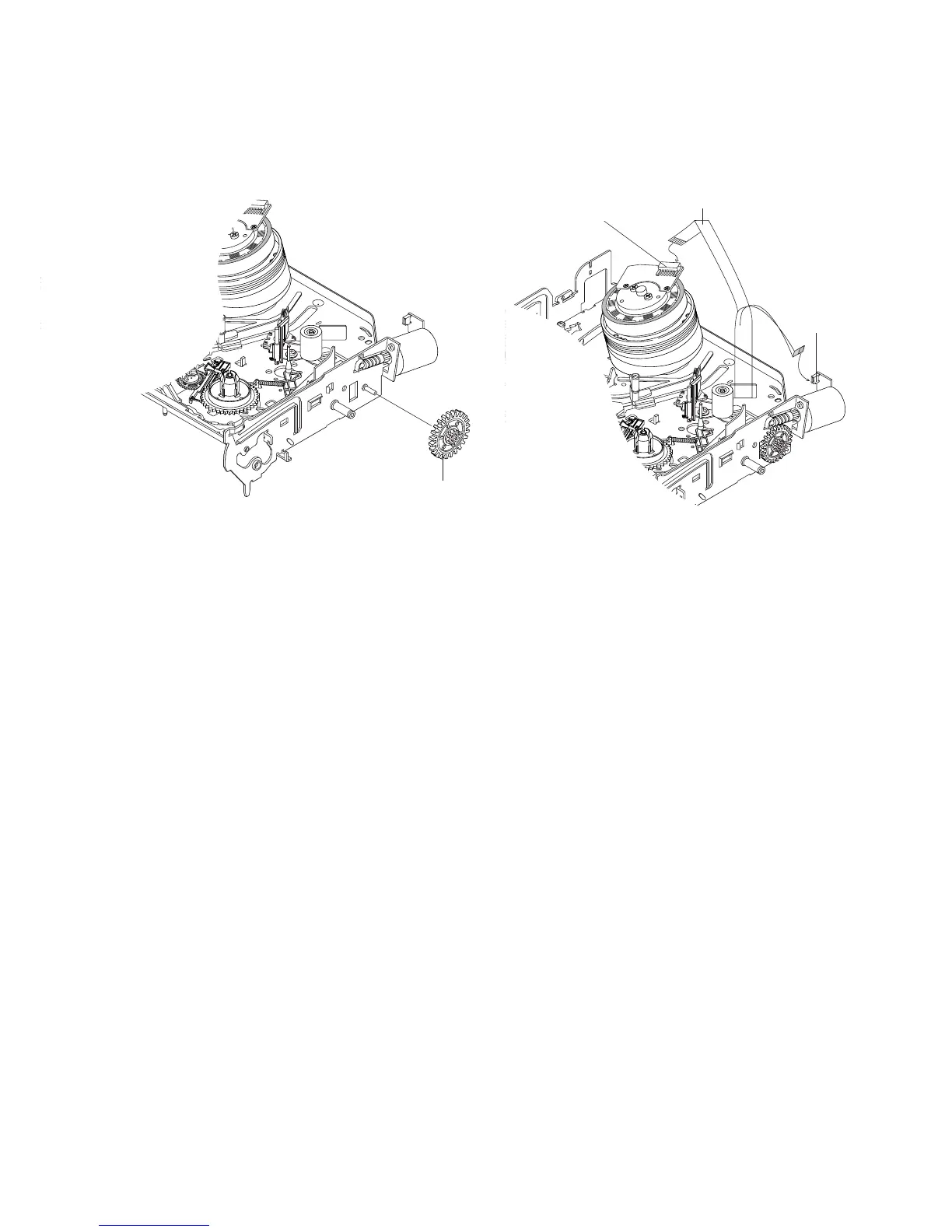

Fig. 2-16 Gear Worm Wheel Removal
2-4-6 Cable Flat Removal
1) Remove the Drum connecting part of Cable Flat 1 from
Connector Waffer 2, 3.
Fig. 2-17 Cable Flat Removal
1 GEAR WORM WHEEL
