Sony RDR-VX521 - Assy Motor Loading Removal; Bracket Gear, Gear Joint 2, 1 Removal

2-10
4 GEAR
JOINT 1
3 GEAR JOINT 2
1 SCREW
2 BRAKET GEAR
2-4-7 Ass’y Motor Loading Removal
1) Remove the Screw 1.
2) Remove the Ass’y Motor Loading 2.

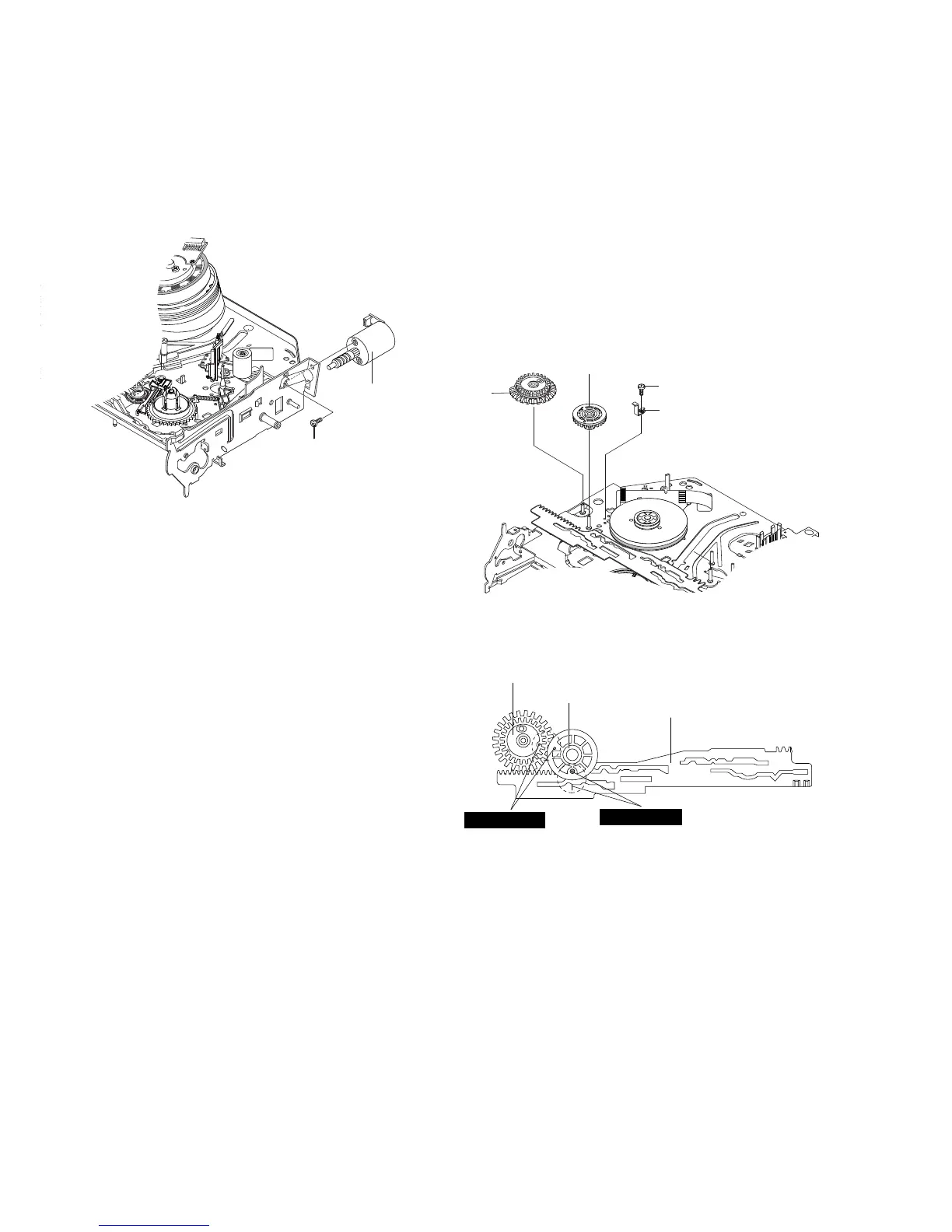

Fig.2-18 Ass’y Motor Loading Removal
2-4-8 Bracket Gear, Gear Joint 2, 1 Removal
1) Remove the Screw 1.
2) Remove the Bracket Gear 2.
3) Remove the Gear Joint 2 3.
4) Remove the Gear Joint 1 4.
Assembly:
1) Be sure to align dot mark of Gear Joint 1 1 with dot mark of
Gear Joint 2 2 as shown Fig 2-20.
(Refer to Timing point1)
2) Confirm the Timing Point 2 of the Gear Joint 2 2 and Slider
Cam 3.
Fig. 2-19 Bracket Gear, Gear Joint 1, 2 Removal
Fig. 2-20 Gear Joint 1, 2 Assembly
2 ASS'Y MOTOR
LOADING
1 SCREW
TIMING POINT 1
TIMING POINT 2
1 GEAR JOINT1
2 GEAR JOINT2
3 SLIDER CAM
