Sony RDR-VX521 - Disassembly and Reassembly; Cabinet and PCB; Cabinet Top Removal; Botton Cover Removal

2-1
RDR-VX521/VX530

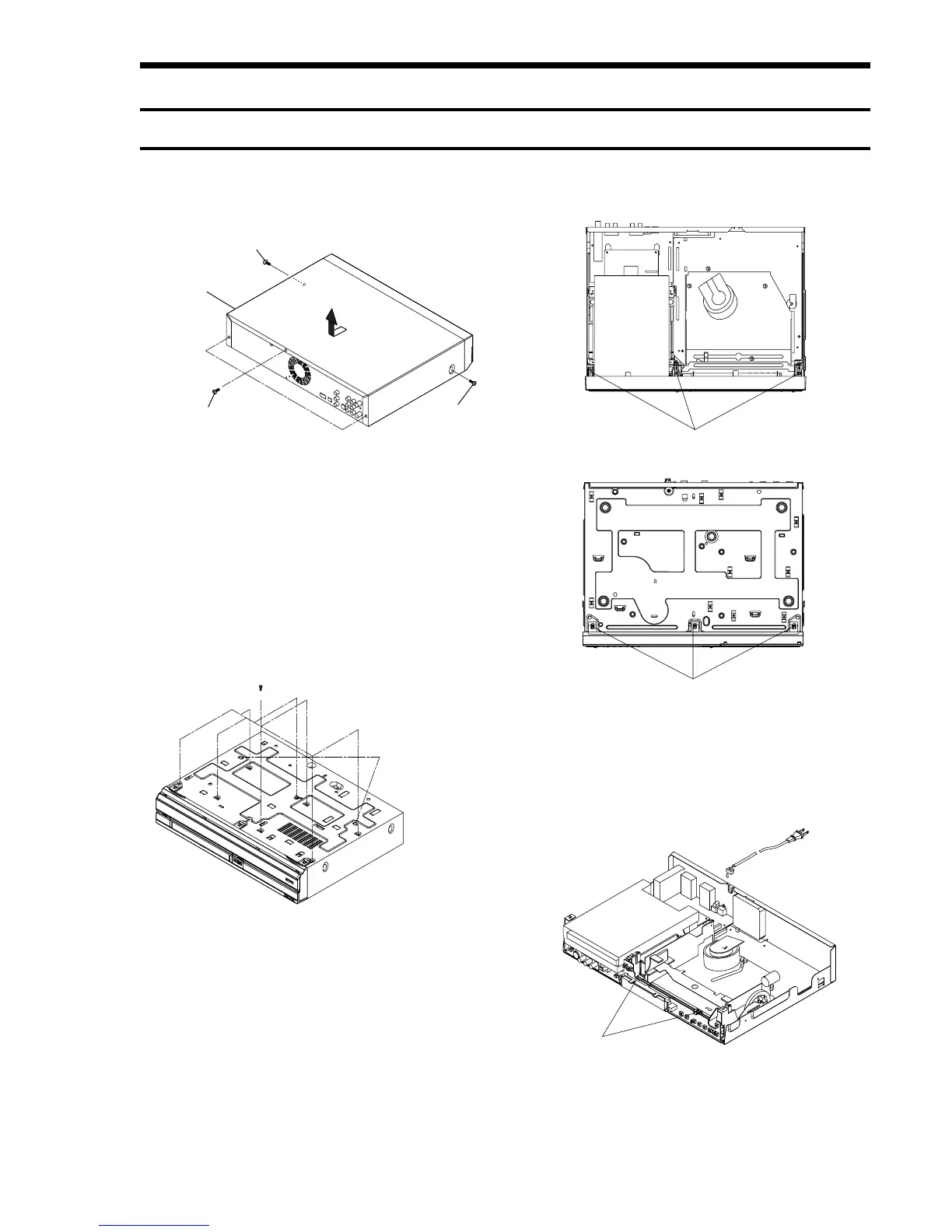

2. DISASSEMBLY AND REASSEMBLY
2-1 CABINET AND PCB
Fig. 2-1 Cabinet Top Removal
Fig. 2-2 Bottom Cover Removal
2-1-1 Cabinet Top Removal
2-1-2 Bottom Cover Removal
2-1-3 Ass’y Front Panel Removal
Fig. 2-3 Ass’y Front Panel Removal
2-1-4 Function Timer PCB Removal
Fig. 2-4 Function Timer PCB Removal
1 REMOVE 1 SCREW
3 Lift up the Cabinet Top
in the direction of arrow
2 REMOVE
3 SCREWS
1 REMOVE
1 SCREW
(Bottom View)
1 REMOVE 8 SCREWS
2 RELEASE 2 HOOKS
1 RELEASE 3 HOOKS
2 RELEASE 3 HOOKS
(Top View)
(Bottom View)
1 RELEASE 2 HOOK
