Sony RDR-VX521 - VCR Deck Section (Top Side)

8-3

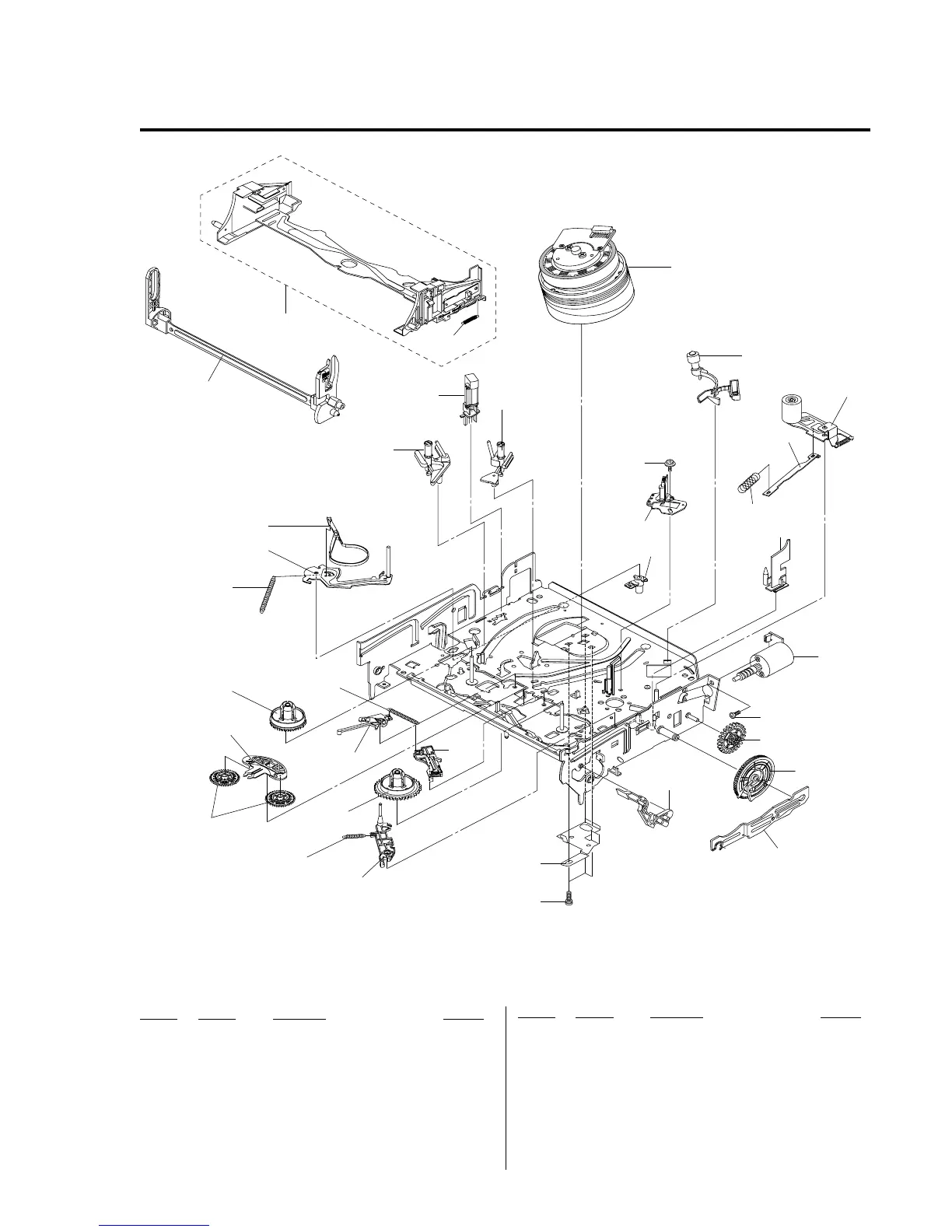

8-1-2 VCR Deck Section (Top Side)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
T001 9-885-101-30 ASSY CYLINDER 6HD
T003 1-796-434-11 LOADING ASSY, MOTOR
T010 9-885-101-27 ASSY ACE HEAD
T015 9-885-101-25 ASSY UNIT PINCH
T019 9-885-101-23 REEL S
T020 9-885-101-22 REEL T
T023 9-885-101-21 ASSY LEVER TENSION
T024 3-067-782-01 SPRING-TENSION LEVER
T025 9-885-101-20 ASSY BAND BRAKE
T028
T020
T027
T019
T028
T024
T023
T025
T001
W016
T01
5
T077
T071
T003
W201
W015
T010
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
T027 9-885-101-24 ASSY LEVER BRAKE T
T028 3-067-786-01 SPRING-BRAKE
T071 9-885-101-28 GUIDE CASSETTE DOOR
T077 9-885-101-18 ASSY HEAD CLEANER
W015 9-885-069-89 SCREW-MACHINE ZPC (YEL)
W016 9-885-061-04 SCREW TAP 2.6X5.6
W201 9-885-067-38 SCREW MAC 3X3.3
