2-17
1 SCREW
2 ASS'Y HEAD ACE
1 FE HEAD

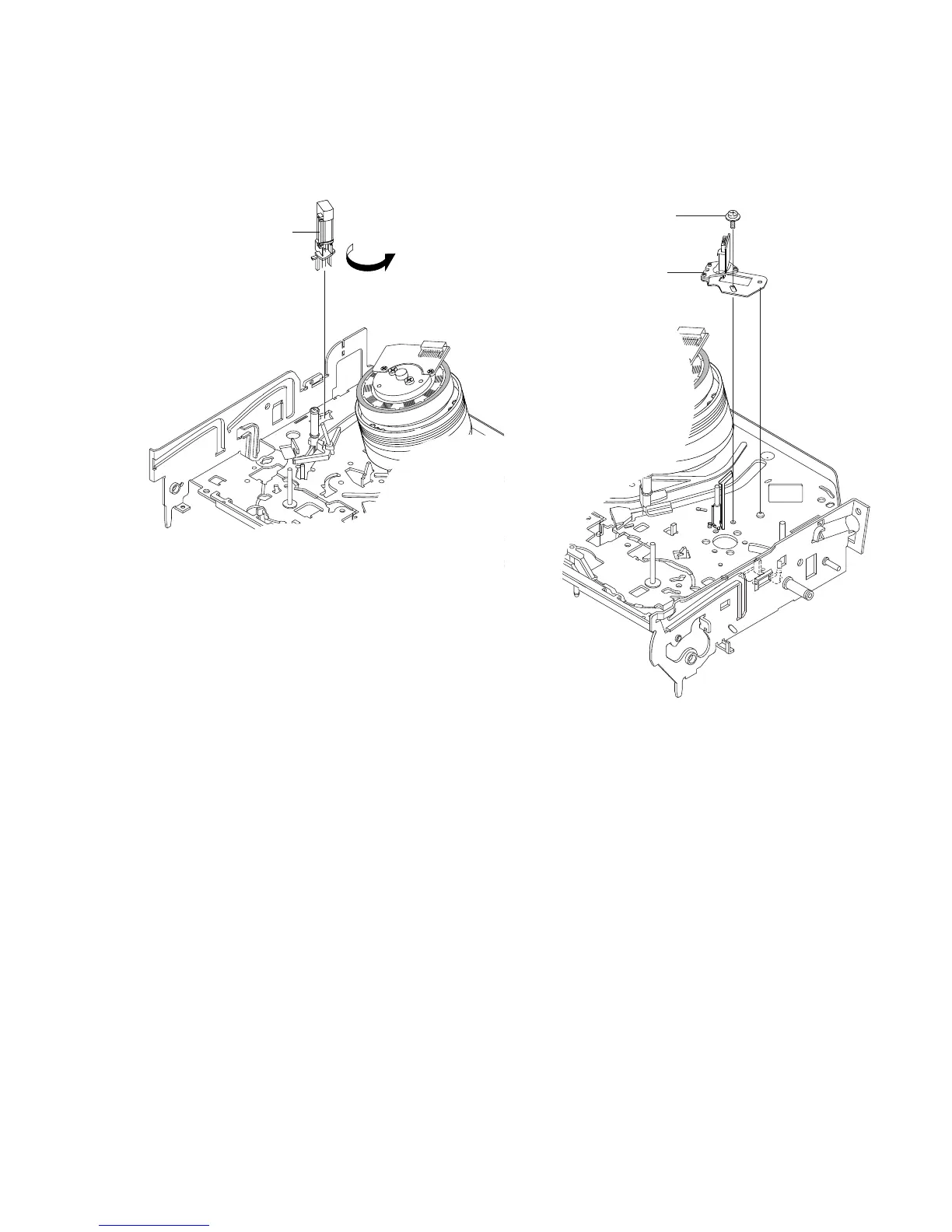

2-4-21 FE Head Removal
1) Remove the FE Head 1 in the direction of arrow to lift up.
Fig. 2-34 FE Head Removal
2-4-22 Ass’y ACE Head Removal
1) Pull out the FPC from connector of Ass’y ACE Head 2.
2) Remove the screw 1.
3) Lift the Ass’y ACE Head 2.
Fig. 2-35 Ass’y ACE Head Removal
