Sony RDR-VX521 - Assy Lever up Down, Assy Gear Center Removal; Guide Cassette Door Removal

2-15
1 GUIDE CASSETTE DOOR
HOOK [A]
2-4-17 Ass’y Lever Up Down, Ass’y Gear
Center Removal
1) Remove the 2 hooks in the direction of arrow as shown Fig. 2-
29 and lift the Ass’y Lever Up Down 1.
2) Lift the Ass’y Gear Center 2.
Assembly:
1) Insert the Ass’y Lever Up Down 1 in the rectangular holes on
Main Base as shown in Fig 2-30.
2) Lift the Lever Ass’y Up Down 1 about 35°.
(Refer to Fig 2-30)
3) Insert Ring of the Ass’y Gear Center 2 in the Guide of the
Ass’y Lever Up Down 1.
4) Insert the Ass’y Gear Center 2 in the post on Main Base.
5) Push down the Ass’y Lever Up Down 1 for locking of the Hook.
Note:
1) Take care not to separate and sentence does not mark sense.
2) Be sure to confirm that Ring of the Ass’y Gear Center 2 is in
the Guide of the Ass’y Lever Up Down 1 after finishing
assembly of Ass’y Lever Up Down 1 and Ass’y Gear Center
2.

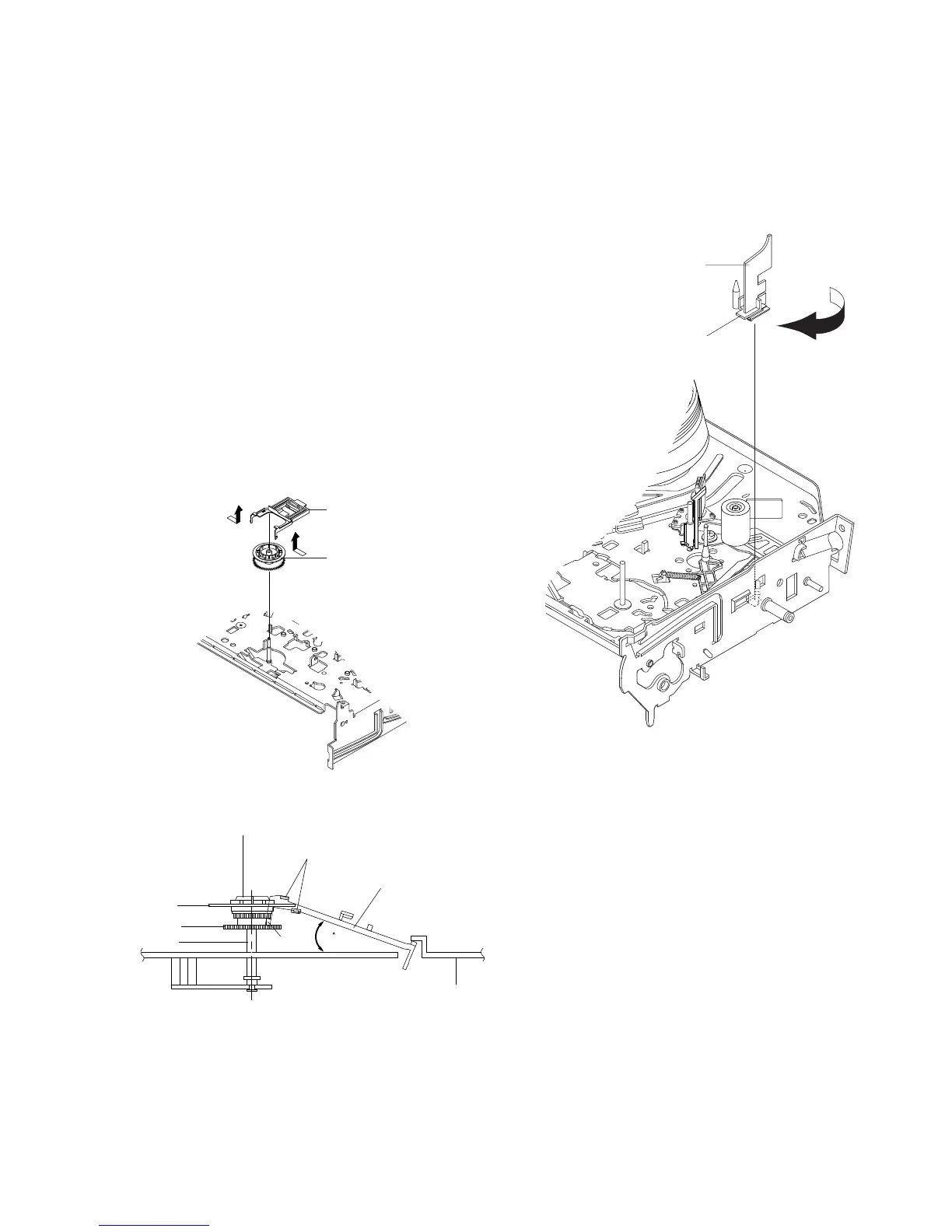

Fig. 2-29 Ass’y Lever Up Down Removal
Fig. 2-30 Ass’y Lever Up Down Removal
2-4-18 Guide Cassette Door Removal
1) Lift the Hook [A].
2) Rotate the Guide Cassette Door 1 in the direction of arrow.
Note: After reinstalling the Guide Cassette Door 1 sure the Hook
[A].
Fig. 2-31 Guide Cassette Door Removal
1 ASS'Y LEVER UP DOWN
2 ASS'Y GEAR CENTER
MAIN BASE
ASS'Y LEVER UP DOWN
GUIDE
ASS'Y GEAR CENTER
RING
GEAR
POST
HOOK
35
