1-5 (E)
VPL-HW40ES

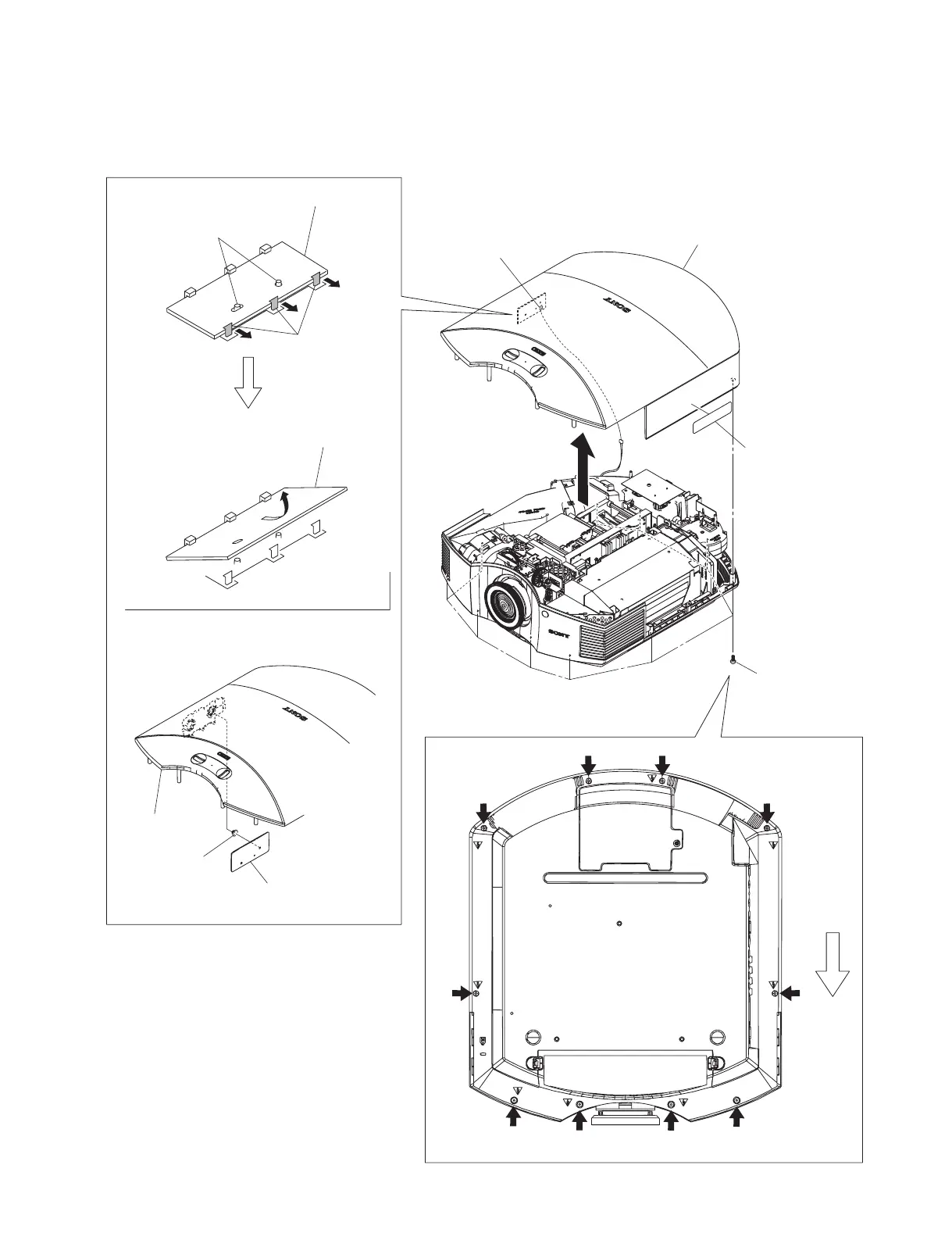

1-3-1. Top Cover Assembly and HA Board
Front side
1 Ten screws
(BVTP3 x 12)
2 HA board
CN11
9 Top cover assembly
8 Lens caution label
HA board
Top cover assembly
7 HA board
6 Button (P)
3 Three hooks
4 Two dowels
5 Remove the HA board in the
direction of the arrow A.
A
