Sony RM-PJ25 - C Board-3; Optical Unit Assembly

1-10 (E)
VPL-HW40ES

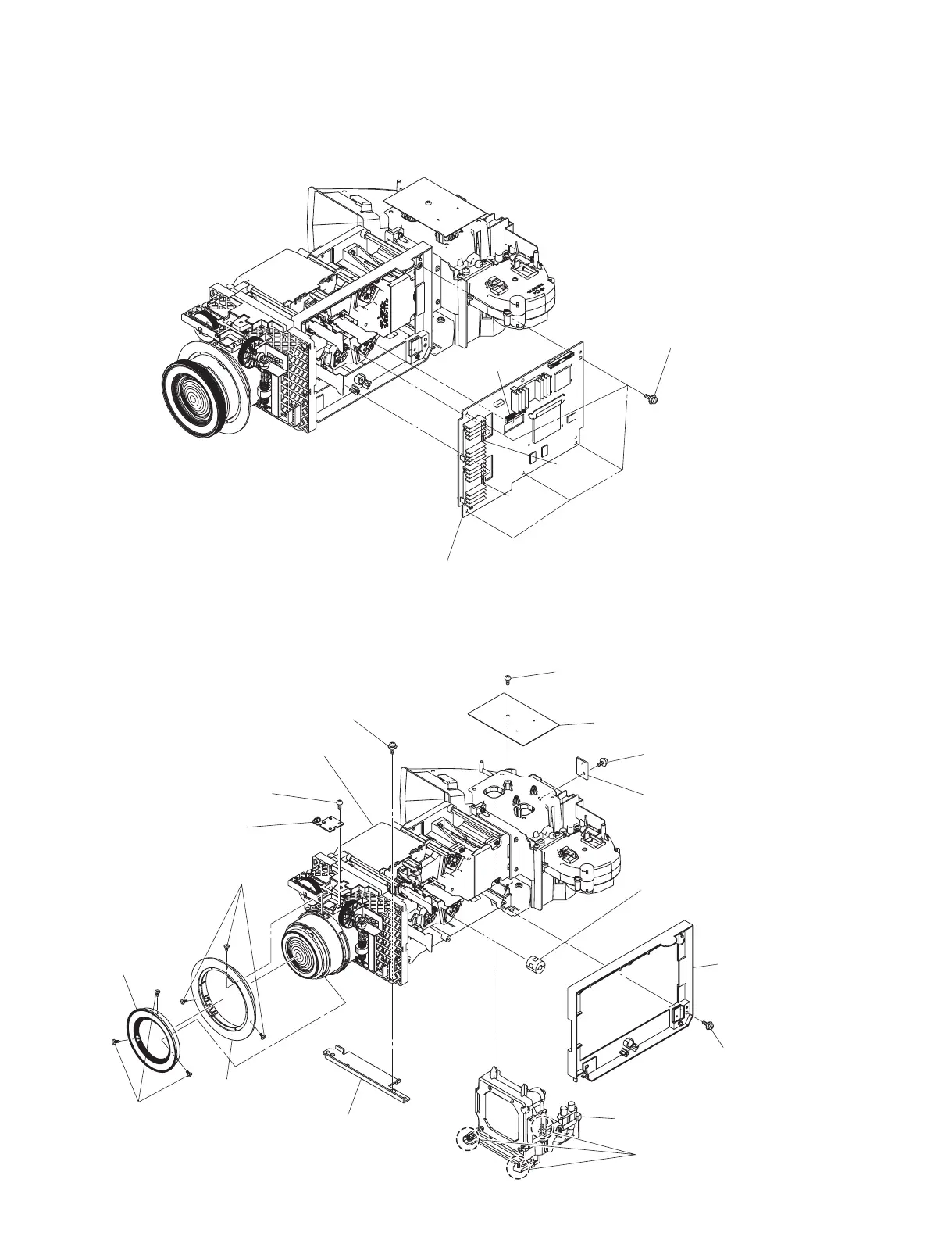

1-3-8. C Board-3
1-3-9. Optical Unit Assembly
1 Five screws
(PSW3 x 8)
2 C board
CN9500
CN8000
CN9000
![ Optics attachment
0 Loosen three screws.
!- Lamp block assembly
9 Clamp filter
1 Screw
(BVTP3 x 12)
7 Screw
(PSW3 x 8)
8 C board holder
4 TL board
3 Screw
(PSW3 x 8)
6 HB board
5 Screw
(BVTP3 x 8)
2 Lamp cover plate
!= Screw
(PSW4 x 16)
!' Zoom ring assembly
!, Optical unit assembly
!; Focus ring
assembly
!] Three tapping screws
(1.7 x 4)
!\ Three tapping screws
(1.7 x 4)
