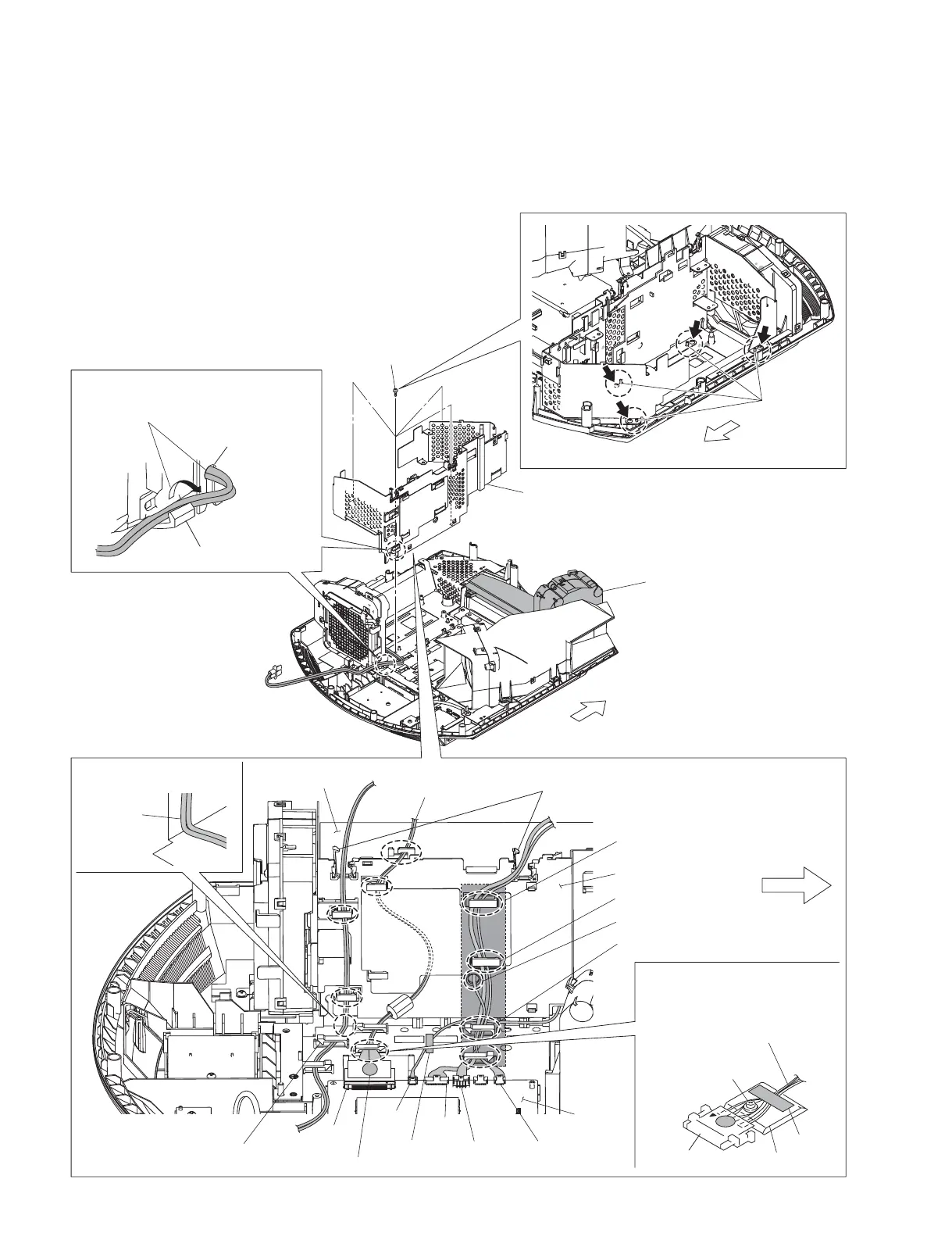

1-3-15. DC Fan and V Board-1
n
When removing the V board, perform the procedure in Sections 1-3-15 and 1-3-16.
4 Four screws
(BVTP3 x 12)
7 G board holder block
A
5 Remove the lamp power connector
assembly from the hook of fan (CH)
bracket and hole of the plate clamp.
Hook of fan (CH) bracket
Hole of plate clamp
DC fan block
Front side
6 Four
dowels
Front side
A
A
A
A
When installing the harness,
the harness should not protrude
exceeding the shaded area.
G board holder block
Hook of plate clamp
CN301
Tape
Chassis
Harness of the lead with connector
(LVDS) should not override on top
of the chassis screw.
Chassis screw
Lead with connector
(LVDS)
Front side
Lead with connector
(LVDS)
Marking is printed on the top.
Tape
CN400
CN602
CN600
CN1001
CN301
QA board
GA board
Hook of bottom cover assembly
2 Remove the harness from the eight
hooks.
3 Pull out the harness from the hole.
1 Open the two edge clamps
Harness
Place the harness at a right
angle as shown in the figure.
