Sony RM-PJ25 - C Board-2 and U Board

1-9 (E)
VPL-HW40ES

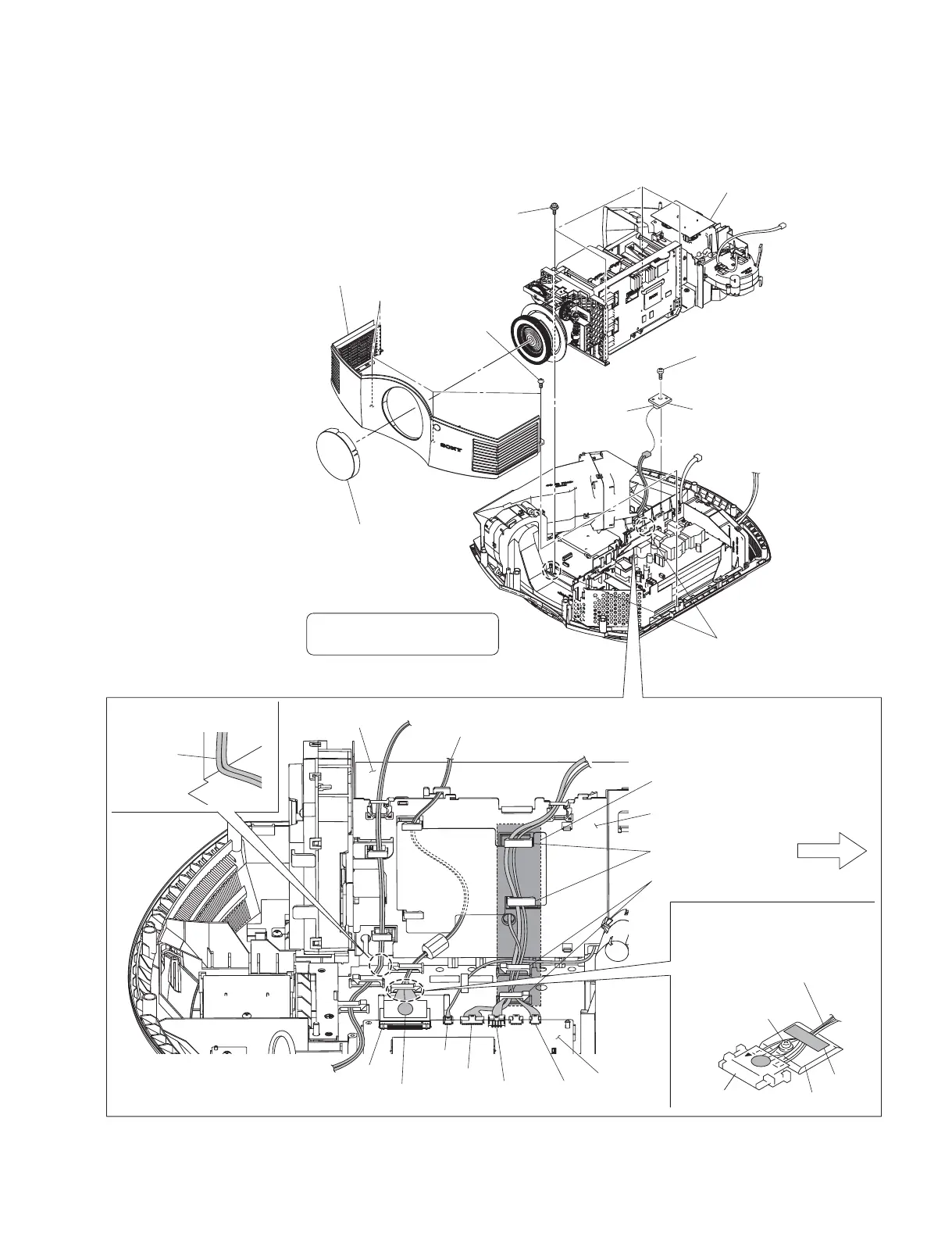

1-3-7. C Board-2 and U Board
Note in operation:
Do not damage the harnesses.
CN70
5 Two dowels
7 Screw
(BVTP3 x 12)
8 U board
4 Four screws
(PSW4 x 16)
2 Four screws
(BVTP3 x 12)
3 Front cover assembly
6 Optical unit block (C board)
1 Lens cap
When installing the harness,
the harness should not protrude
exceeding the shaded area.
G board holder block
CN301
Tape
Chassis
Harness of the lead with connector
(LVDS) should not override on top
of the chassis screw.
Chassis screw
Lead with connector
(LVDS)
Front side
Lead with connector (LVDS)
Marking is printed on the top.
CN400
CN602
CN600
CN1001
CN301
QA board
GA board
Place the harness at a right
angle as shown in the figure.
Harness
Hooks of plate clamp
Hooks of bottom cover
assembly
