Sony RM-PJ25 - DC Fan

1-11 (E)
VPL-HW40ES

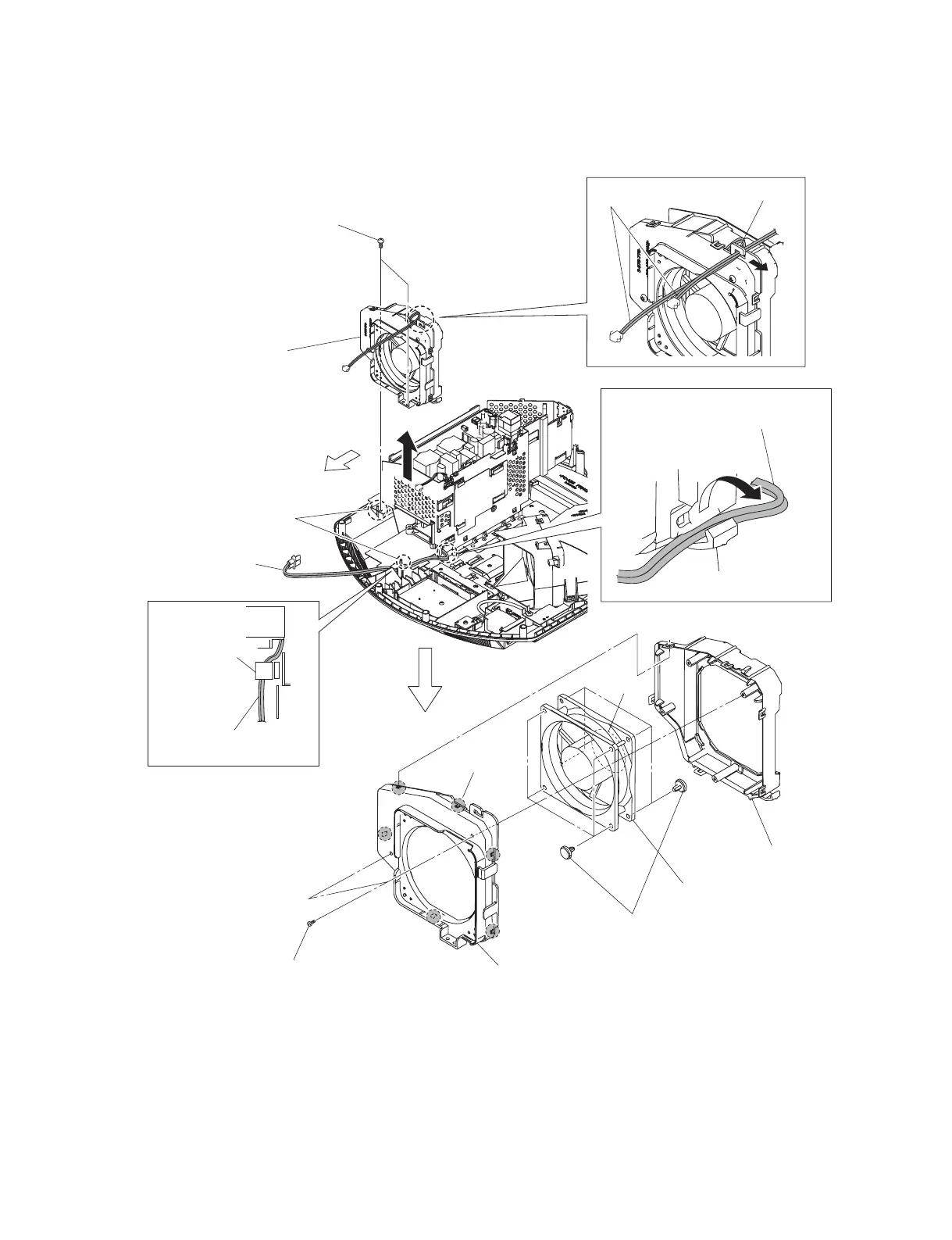

1-3-10. DC Fan
7 Six hooks
!- DC fan
9 Fan bracket (R) (CH)
8 Fan bracket
(F) (CH)
0 Eight fan dampers
Label side
1 Remove the lamp power connector
assembly in the direction of the
arrow A.
A
Hook
Chassis
Lamp power connector
assembly
4 Two dowels
5 Remove the DC fan block
in the direction of the
arrow B.
B
Front side
3 Two screws
(BVTP3 x 12)
Lamp power connector
assembly
6 Two screws
(BVTP3 x 12)
2 Hook
Two fan harnesses
