Sony RM-PJ25 - NF Board; DC Fan (EX)

1-7 (E)
VPL-HW40ES

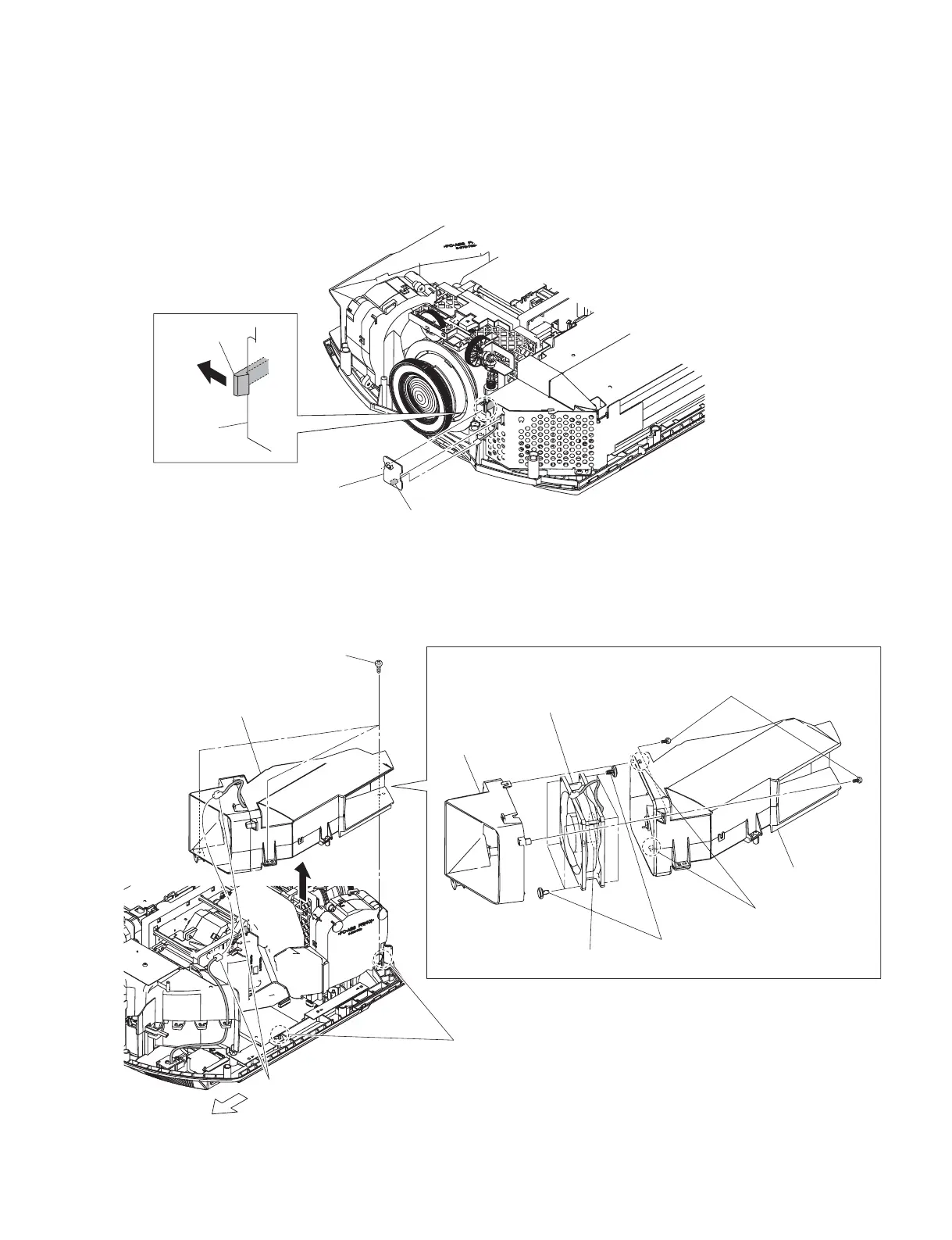

1-3-4. NF Board
1-3-5. DC Fan (EX)
2 NF board
1 Hook
NF board
CN30
2 Three screws
(BVTP3 x 12)
4 Remove the DC fan (EX) block
in the direction of the arrow.
1 Fan connector
5 Two screws
(BVTP3 x 12)
8 Top duct (EX),
bottom duct (EX)
6 Two hooks
9 Eight fan dampers
0 DC fan (EX)
7 Fan duct
(EX)
Front
Label side
3 Two dowels
