1-21 (E)
VPL-HW40ES

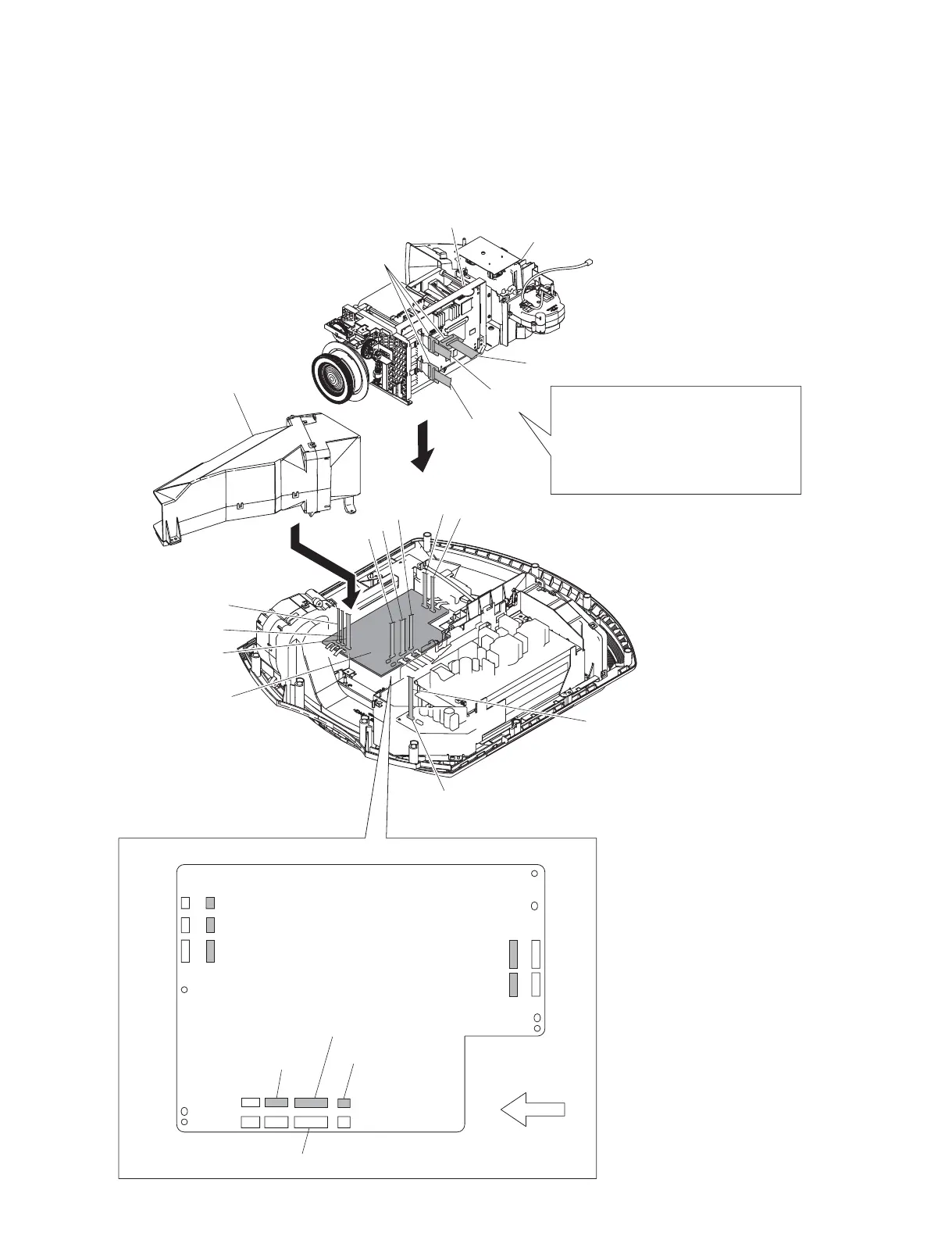

1-4-2. Connection
n
Secure the XQA board to the main unit with the two screws.
n
Do not pull or stress the 80P flexible card
wire coming from the panel on the optical
unit block.
Doing so may displace the panel and
deteriorate image quality.
XQA board
GB board
CN301
CJ board x 3
DC fan (EX) block
Optical unit block
C board holder
A JST service connector assembly (9P)
B MOLEX service connector assembly (10P)
C MOLEX service connector assembly (5P)
D MOLEX service connector assembly (15P)
E JST service connector assembly (4P)
F MOLEX service connector assembly (9P)
G JST service connector assembly (3P)
H MOLEX service connector assembly (4P)
I-1 Panel extension cable (80P)
I-2 Panel extension cable (80P)
I-3 Panel extension cable (80P)
J JST service connector assembly (6P)
H
G
F
E
D
C
A
B
I-2
I-3
I-1
XQA board
CN1605 C
CN1401 E
CN1801 A
CN1704 B
CN801
CN704
CN1602 D
CN1703 F
CN1800 G
CN1705 HCN705
CN800
CN703
CN401
CN605
CN602
J
Front side
